961 - 984 of 1719 results
Omron NX-AD3608 is an NX analogue input unit for the NX I/O Bus, 4 Analog Inputs, -10 to 10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-AD4203 is an NX analogue input unit for the NX I/O Bus, 8 Analog Inputs, 4 to 20 mA single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-AD4204 is an NX analogue input unit for the NX I/O Bus, 8 Analog Inputs, 4 to 20 mA differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-AD4208 is an NX analogue input unit for the NX I/O Bus, 8 Analog Inputs, 4 to 20 mA differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.
Part not listed?
We source industrial control and electrical parts well beyond this catalogue. Send us the part number.
Omron NX-AD4603 is an NX analogue input unit for the NX I/O Bus, 8 Analog Inputs, -10 to +10 V single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-AD4604 is an NX analogue input unit for the NX I/O Bus, 8 Analog Inputs, -10 to +10 V differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-AD4608 is an NX analogue input unit for the NX I/O Bus, 8 Analog Inputs, -10 to +10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-CT2120 is an NX encoder input unit for the NX I/O Bus, achieving high-speed response and high-resolution performance (Channnels 2(NPN), Max response frequency 1 MHz, 5 V/24 V voltage input).
Omron NX-CT2220 is an NX encoder input unit for the NX I/O Bus, achieving high-speed response and high-resolution performance (Channnels 2(PNP), Max response frequency 1 MHz, 5 V/24 V voltage input).
Omron NX-CT2320 is an NX encoder input unit for the NX I/O Bus, achieving high-speed response and high-resolution performance (Channnels 2 (In 6(NPN), Out 6(NPN)), Max response frequency 4 MHz, RS-422 Line receiver input).
Omron NX-CT2420 is an NX encoder input unit for the NX I/O Bus, achieving high-speed response and high-resolution performance(Channnels 2 (In 6(PNP), Out 6(PNP)), Max response frequency 4 MHz, RS-422 Line receiver input).

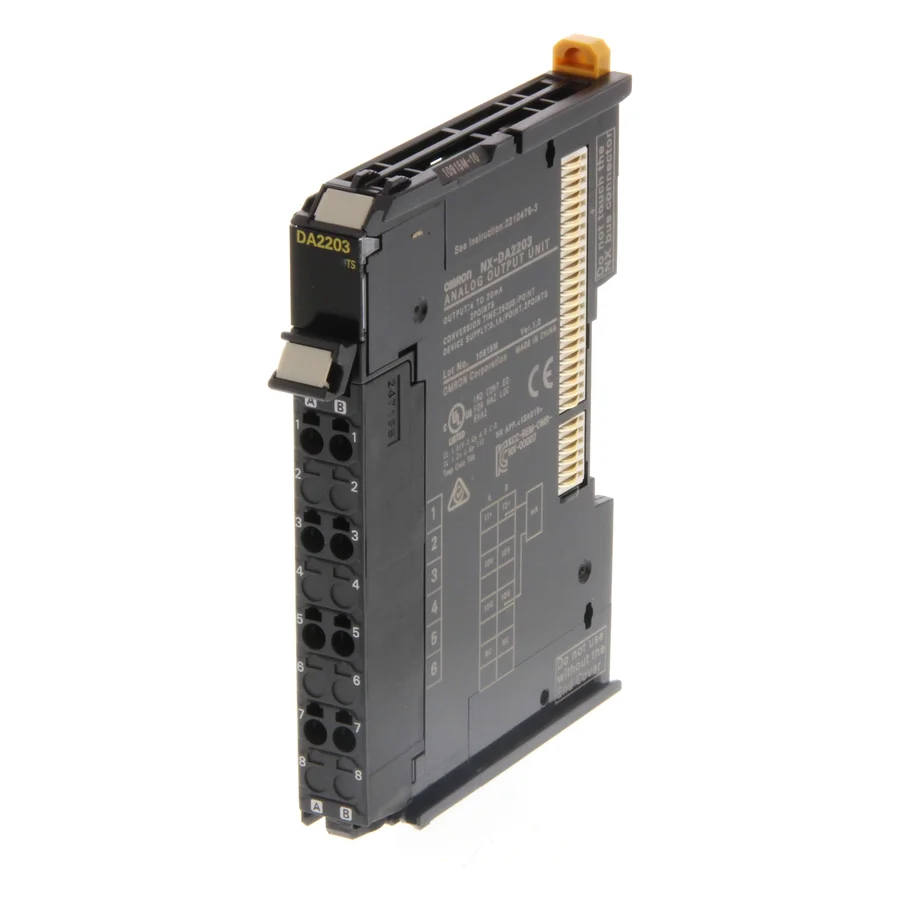

Omron NX-DA2203 is an NX analogue output unit for the NX I/O Bus, 2 Analog Outputs, 4 - 20 mA, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-DA2205 is an NX analogue output unit for the NX I/O Bus, 2 Analog Outputs, 4 - 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.

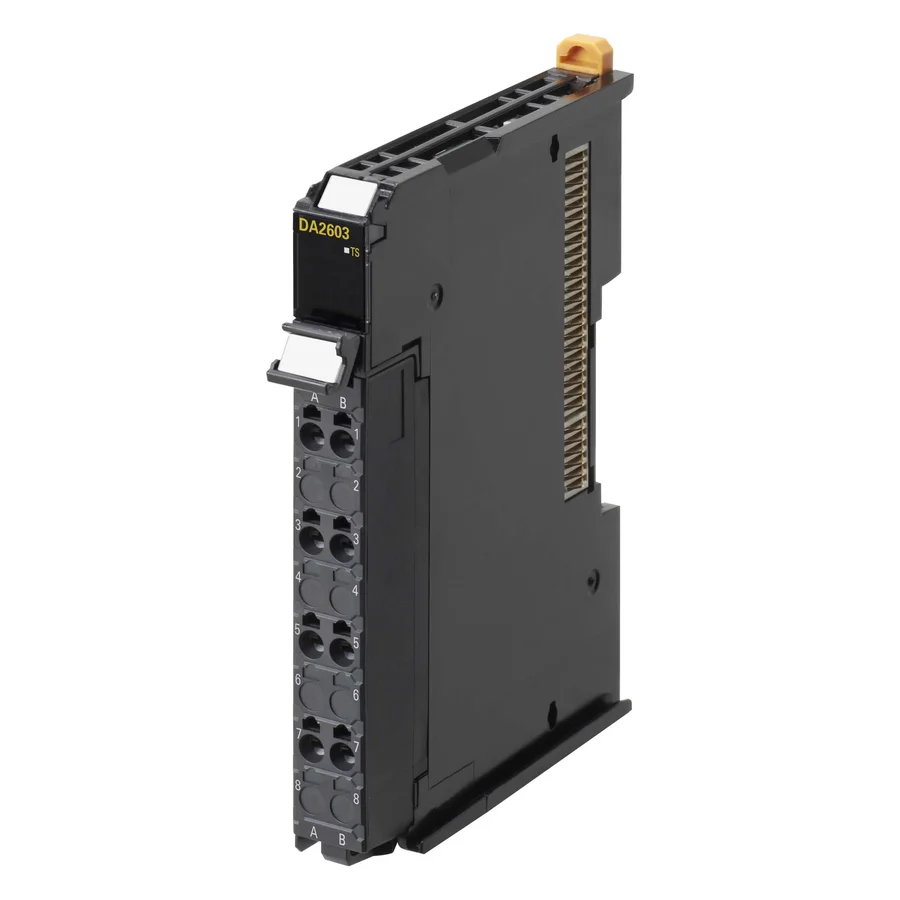

Omron NX-DA2603 is an NX analogue output unit for the NX I/O Bus, 2 Analog Outputs, -10 to 10 V, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.

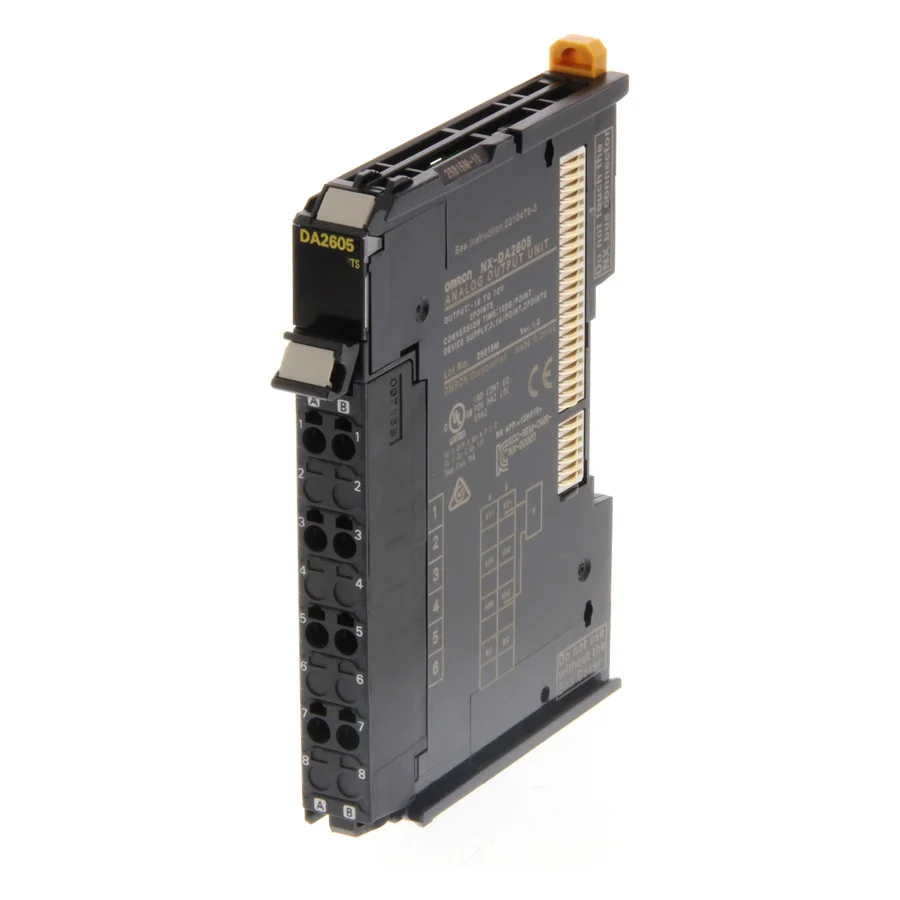

Omron NX-DA2605 is an NX analogue output unit for the NX I/O Bus, 2 Analog Outputs, -10 to 10 V, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-DA3203 is an NX analogue output unit for the NX I/O Bus, 4 Analog Outputs, 4 - 20 mA, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.

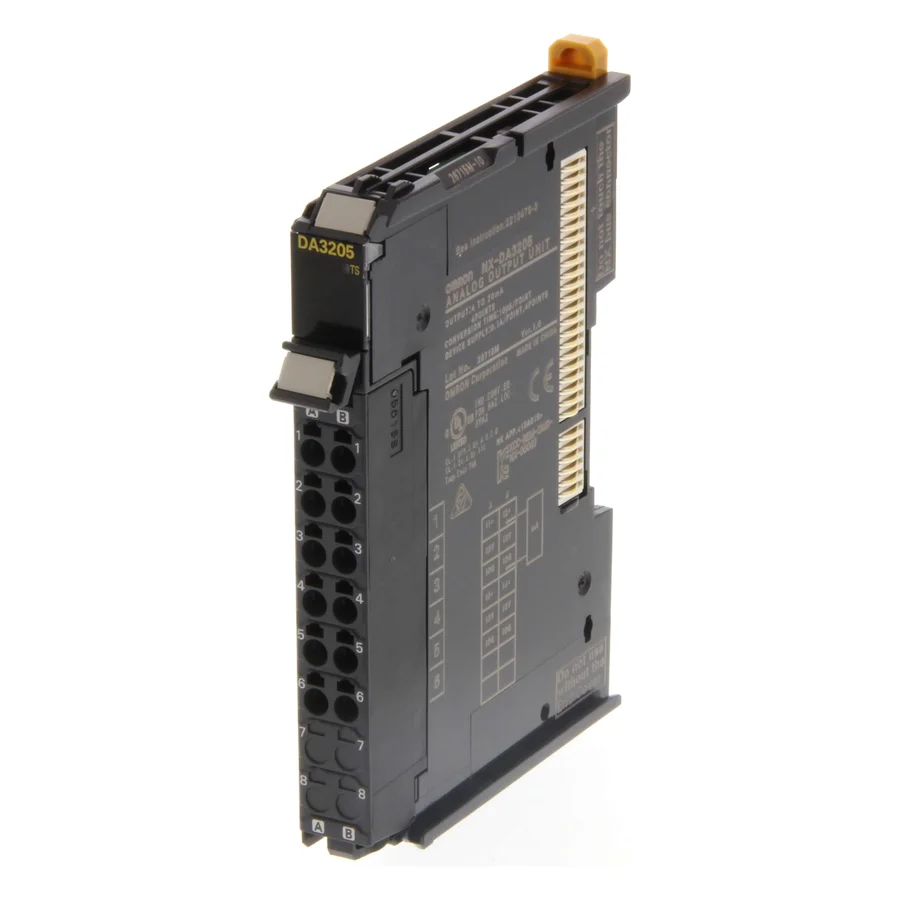

Omron NX-DA3205 is an NX analogue output unit for the NX I/O Bus, 4 Analog Outputs, 4 - 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.

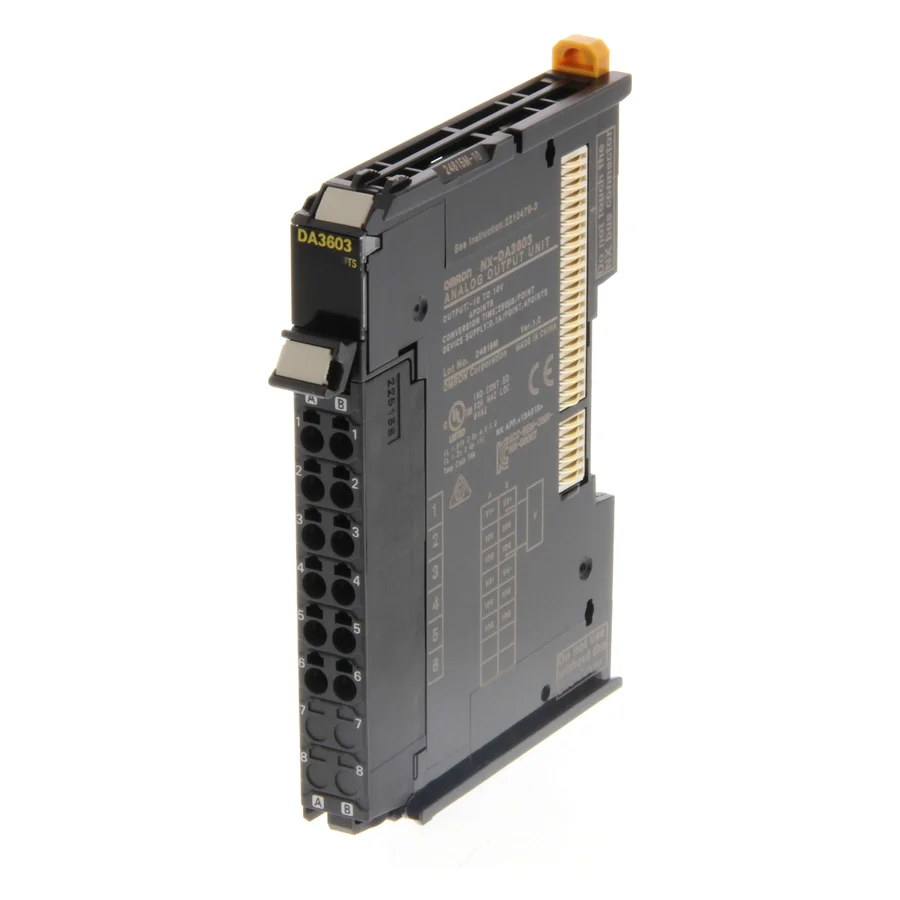

Omron NX-DA3603 is an NX analogue output unit for the NX I/O Bus, 4 Analog Outputs, -10 to 10 V, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-DA3605 is an NX analogue output unit for the NX I/O Bus, 4 Analog Outputs, -10 to 10 V, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.
Omron NX-EC0112 is an NX encoder input unit for the NX I/O Bus, 1 x Incremental Encoder NPN Input, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide.

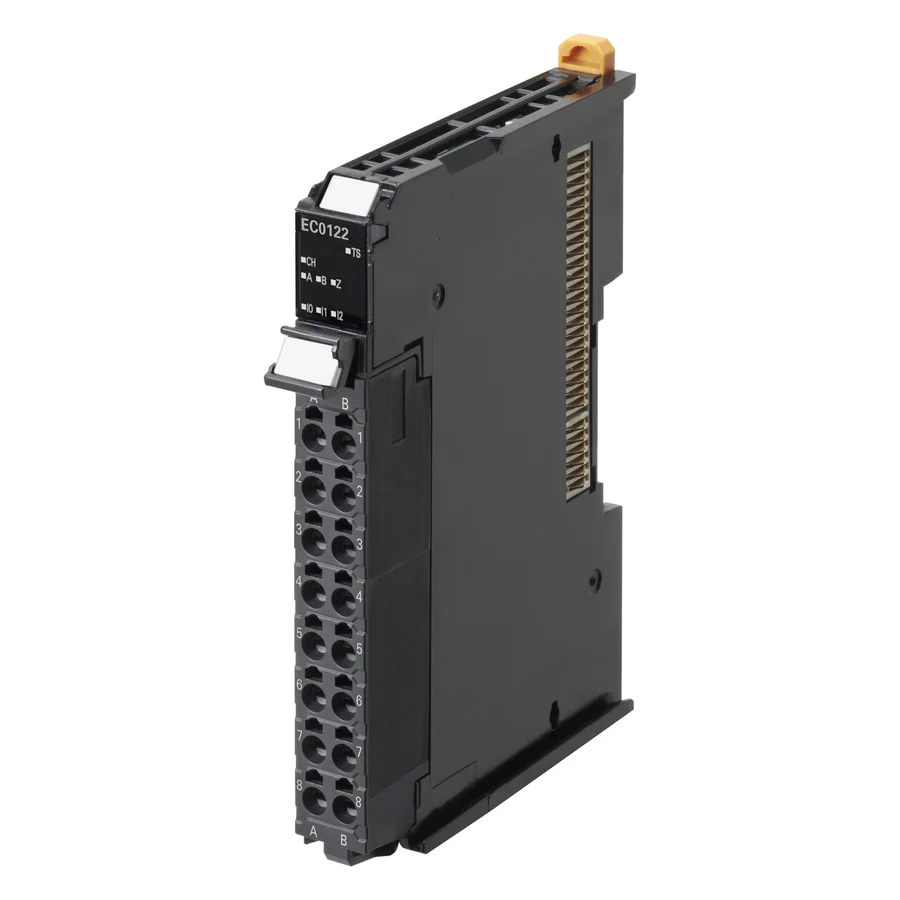

Omron NX-EC0122 is an NX encoder input unit for the NX I/O Bus, 1 x Incremental Encoder PNP Input, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide.
Omron NX-EC0132 is an NX encoder input unit for the NX I/O Bus, 1 x Incremental Encoder Line driver Input, Phases A and B: Single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, NPN, screwless push-in connectors, 24 mm wide.

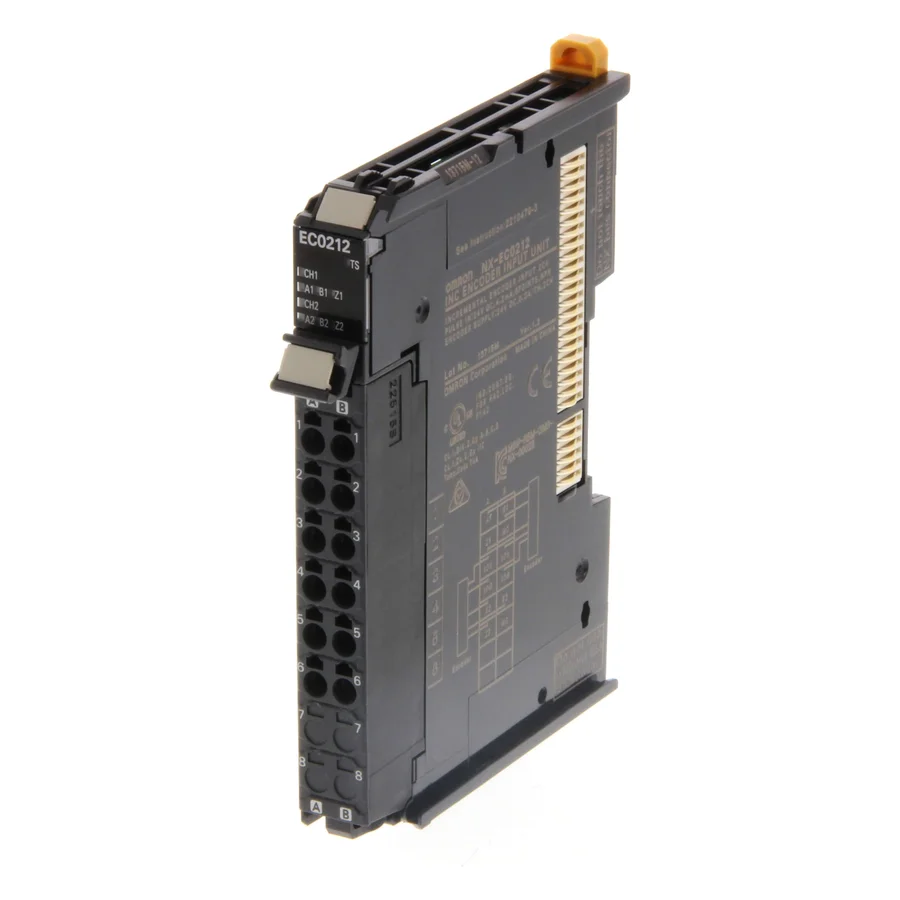

Omron NX-EC0212 is an NX encoder input unit for the NX I/O Bus, 2 x Incremental Encoder NPN Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide.
Omron NX-EC0222 is an NX encoder input unit for the NX I/O Bus, 2 x Incremental Encoder PNP Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide.
