Omron NX-CT2320

Technical specifications

Manufacturer

Omron

Manufacturer part no.

NX-CT2320

Type

Counter module

Application

I/O module

Used with

NX-series controllers and NX bus couplers

I/O system

NX I/O Bus

Type of module

Encoder input

Digital input type

Incremental encoder, Line driver (RS-422), NPN

Digital output type

NPN, PWM

Signal processing

Free running, Synchronous, Task period prioritized

Number of encoder input channels

2

Max. encoder input frequency

4000 kHz

Number of pulse input channels

6

Number of pulse output channels

1

Max. pulse output frequency

0 kHz

I/O connection type

Push-in

Number of I/O connectors

6

Number of IOG (V-) terminals

2

Degree of protection (IP)

IP20

Weight

0 g

Technical documents (1)

• Omron product page NX-CT2320

Key features

• Signal processing: Free running, Synchronous, Task period prioritized
• Degree of protection (IP): IP20
• Number of I/O connectors: 6

About the Omron NX-CT2320

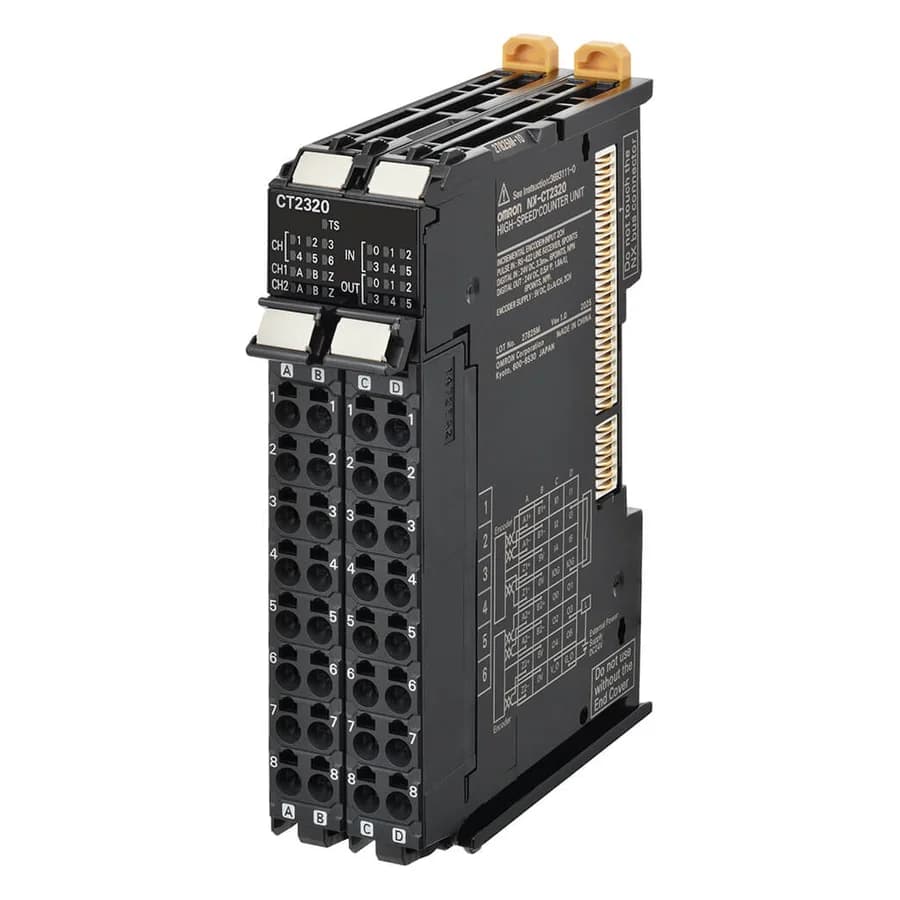

The Omron NX-CT2320 is an NX encoder input unit. Omron describes it as: High-speed counter unit ideal for edge control, achieving high-speed response and high-resolution performance (Channnels 2 (In 6(NPN), Out 6(NPN)), Max response frequency 4 MHz, RS-422 Line receiver input). Its specification table gives incremental encoder, Line driver (RS-422), NPN inputs, NPN, PWM outputs and push-in connection. Omron's European product page carries no end-of-production notice for it.

What is the NX-CT2320 used for?

The NX-CT2320 slots onto the NX I/O bus next to an NX controller or bus coupler, carrying its encoder input signals to and from the machine.

Lifecycle and successor

Active.
