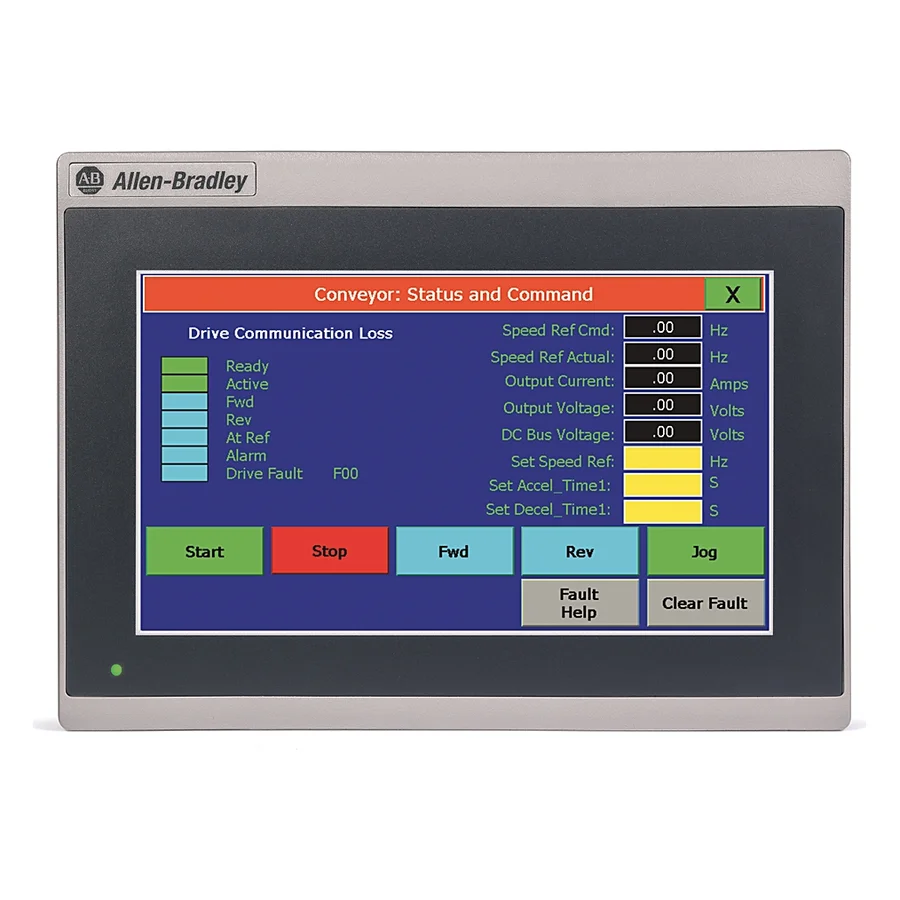

Allen-Bradley 2711R-T7T

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

2711R-T7T

Type

PanelView 800 touch terminal

Application

Operator interface

Used with

Micro800, MicroLogix and CompactLogix controllers

Temperature, operating

IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0…50 °C (32…122 °F)

Temperature, nonoperating

IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock): -25…70 °C (-13…158 °F)

Temperature, surrounding air, max

50 °C (122 °F)

Heat dissipation

23 BTU/hr 34 BTU/hr 61 BTU/hr

Relative humidity

IEC 60068-2-30 (Test Db, Unpackaged Damp Heat): 5…95% noncondensing

Vibration

IEC 60068-2-6 (Test Fc, Operating):| 2 g @ 10…500 Hz

Shock, operating

IEC 60068-2-27 (Test Ea, Unpackaged Shock): 15 g

Shock, nonoperating

IEC 60068-2-27 (Test Ea, Unpackaged Shock): 30 g

Emissions

IEC 61000-6-4

Wire size

Input Power Terminal Block, Stranded or solid, Cu 90 °C (194 °F), Single-Wire Gauge: 0.33…2.08 mm2 (22…14 AWG), Dual-wire Gauge: 0.33…1.31 mm2 (22…16 AWG)

Wire type

Copper

Wiring category

3 – on power ports 2 – on communication ports

Enclosure type ratings

Meets NEMA/UL Type 4X (indoor) 12, 13, and IP65

North American temperature

T4A

Display type

Color transmissive TFT active matrix LCD, widescreen format

Display size

7 in.

Display area (WxH)

153.6 x 86.6 mm (6.05 x 3.41 in.)

Resolution (pixels)

800 x 480

Backlight

LED

Backlight lifespan, min

40,000 hours

Colors

65K colors

Operator input

Analog touch

Real-time clock with battery

Yes

Battery lifespan, min

5 years @ 25 °C (77 °F)

Programming port

Ethernet port

Technical documents (1)

• Rockwell Automation technical data 2711R-TD001

Key features

• 7 in. widescreen colour TFT LCD with LED backlight
• Analog touch operator input
• Ethernet programming port plus separate RS-232 and RS422/RS485 connectors
• Programmed with Connected Components Workbench release 8.0 and later
• Front bezel protection rated IP65, NEMA 4X, 12, 13

About the Allen-Bradley 2711R-T7T

The 2711R-T7T is a PanelView 800 7 inch HMI terminal. Its 7 in. colour transmissive TFT LCD has 800 x 480 resolution and 65K colours, with an LED backlight of 40,000 hours minimum. It runs from 18…32V DC (24V DC nominal), uses up to 11 W, and has an 800 MHz CPU running WINCE 6.0. It works from 0…50 °C.

What is the 2711R-T7T used for?

It is the operator screen for small machines, built for Micro800 and MicroLogix controllers. It is programmed over Ethernet with Connected Components Workbench, holds 50 recipe files and has a real-time clock with battery.

Lifecycle and successor

Active Mature (Rockwell Automation lifecycle status, checked 24 October 2026).

Before you order

What to photograph or confirm so the right unit is quoted.

Read the catalog number 2711R-T7T, the series letter and the firmware revision from the label. Send us a photo of the label and we confirm the match before we quote.
