Schneider Electric XBTN401
Magelis XBTN small panel, 8 keys
Image is for illustrative purposes only. Please refer to product description.
Delivery options

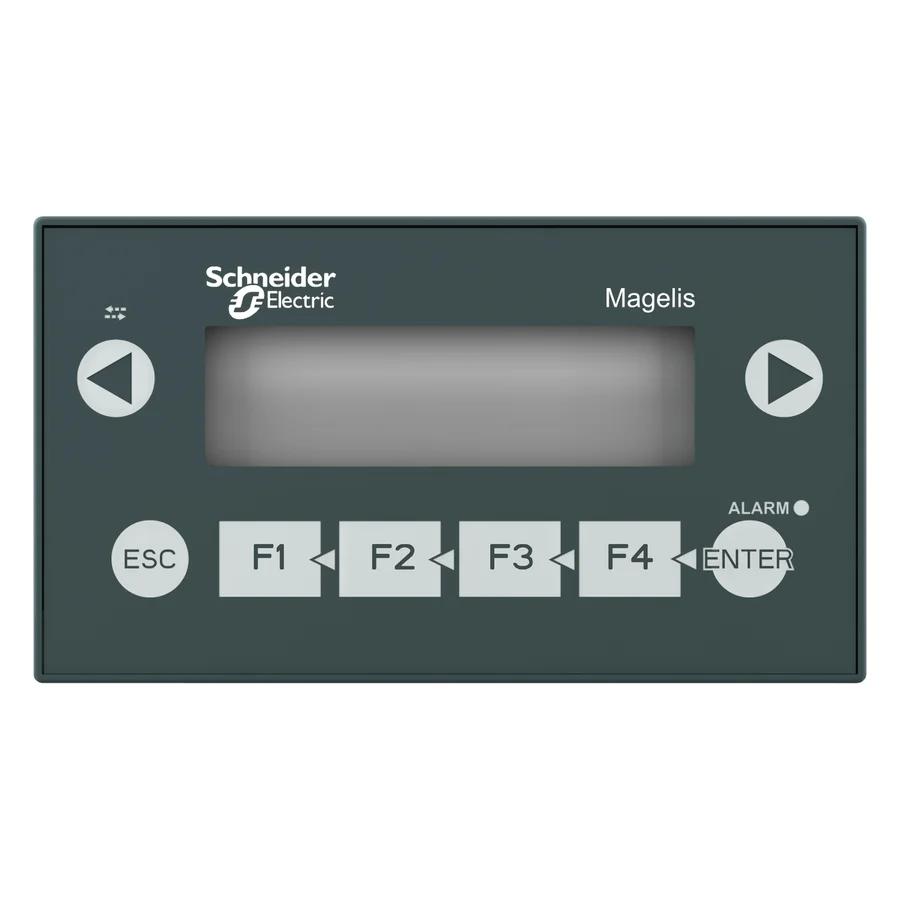

Schneider Electric XBTN401 is a Magelis XBTN small panel with keypad: a 122 x 32 pixel matrix display in green, orange or red, 8 keys and a 24 V DC supply.
- Manufacturer
- Schneider Electric
- Manufacturer part no.
- XBTN401
- Product family
- Magelis XBT HMI Panels (XBTGT, XBTGK, XBTN, XBTR)
- Type
- HMI text display
- Category
- HMI panels › Text displays and keypads
- Lifecycle
- Discontinued
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- Schneider Electric
- Manufacturer part no.
- XBTN401
- Type
- HMI text display
- Application
- Operator panel
- Used with
- Schneider Electric and third-party PLCs (Modbus, Uni-TE)
- Range of product
- Magelis XBTN
- Product or component type
- Small panel with keypad
- Display resolution
- 122 x 32 pixels
- Software type
- Configuration software
- Software designation
- Vijeo Designer Lite
- Operating system
- Magelis
- Display type
- Extra-bright matrix backlit LCD
- Display colour
- Red; Green; Orange
- Character font
- ASCII; Katakana; Chinese (simplified Chinese); Greek; Cyrillic
- [Us] rated supply voltage
- 24 V DC
- Supply
- External source
- Supply voltage limits
- 18…30 V
- Residual ripple
- 1200 mV
- Power consumption in W
- 5 W
- Number of key
- 8
- Number of fixed keys
- 4
- Number of customisable keys
- 4
- Local signalling
- 6 LEDs
- Number of pages
- 256 alarm pages; 200 application pages
- Memory type
- Flash
- Memory capacity
- 512 KB
- Integrated connection type
- Power supply: removable screw terminal block; Printer port: female mini DIN; Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology
- Realtime clock
- Access to the PLC real-time clock
- Product mounting
- Flush mounting
- fixing mode
- By 2 spring clips
Show all 50 specificationsShow fewer
- Display material
- Polyester
- Front material
- PPT
- Keypad material
- Polyester
- Marking
- CE
- Width
- 132 mm
- Height
- 74 mm
- Depth
- 43 mm
- Cut-out dimensions
- 119.4 (+/- 0.5) x 63 (+/- 0.4) mm
- Net weight
- 0.38 kg
- Messages display capacity
- 4 lines of 20 characters maximum; 1 line of 5 characters minimum
- Downloadable protocols
- Uni-TE; Modbus; Third party protocols
- Standards
- IEC 60068-2-6; IEC 61131-2; CSA C22.2 No 14; IEC 60068-2-27; UL 508
- Product certifications
- UL 1604; ATEX zone 2/22; CSA Class 1 Division 2; UL Class 1 Division 2
- Ambient air temperature for operation
- 0…55 °C
- Ambient air temperature for storage
- -20…60 °C
- Relative humidity
- 0…85 % without condensation
- IP degree of protection
- IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
- NEMA degree of protection
- NEMA 4X front panel (outdoor use)
- Shock resistance
- 15 gn for 11 ms
- Vibration resistance
- +/- 3.5 mm (f = 2…8.45 Hz); 1 gn (f = 8.45…150 Hz)
Technical documents (1)
Key features
- Extra-bright matrix backlit LCD
- 4 fixed and 4 customisable keys
- 200 application and 256 alarm pages
- Modbus and Uni-TE protocols
- IP65 front panel
About the Schneider Electric XBTN401
The Schneider Electric XBTN401 is a small panel with keypad from the Magelis XBTN range. Schneider Electric gives it a 122 x 32 pixel matrix display showing up to 4 lines of 20 characters, 8 keys and 512 KB flash memory, configured with Vijeo Designer Lite. Schneider Electric lists it as discontinued on 18 Jan 2021, with end of service on 12 May 2021.
What is the XBTN401 used for?
The XBTN401 shows messages and alarms from a PLC on a small machine and lets the operator acknowledge them and change a few values from its keys.
Lifecycle and successor
Discontinued.
Before you order
What to photograph or confirm so the right unit is quoted.
Check the reference XBTN401 on the panel's rating label, with its product version. Send us a photo of the label and we will confirm the details before quoting.
