Schneider Electric XBTR411

Magelis XBTR small panel, 20 keys

Schneider Electric

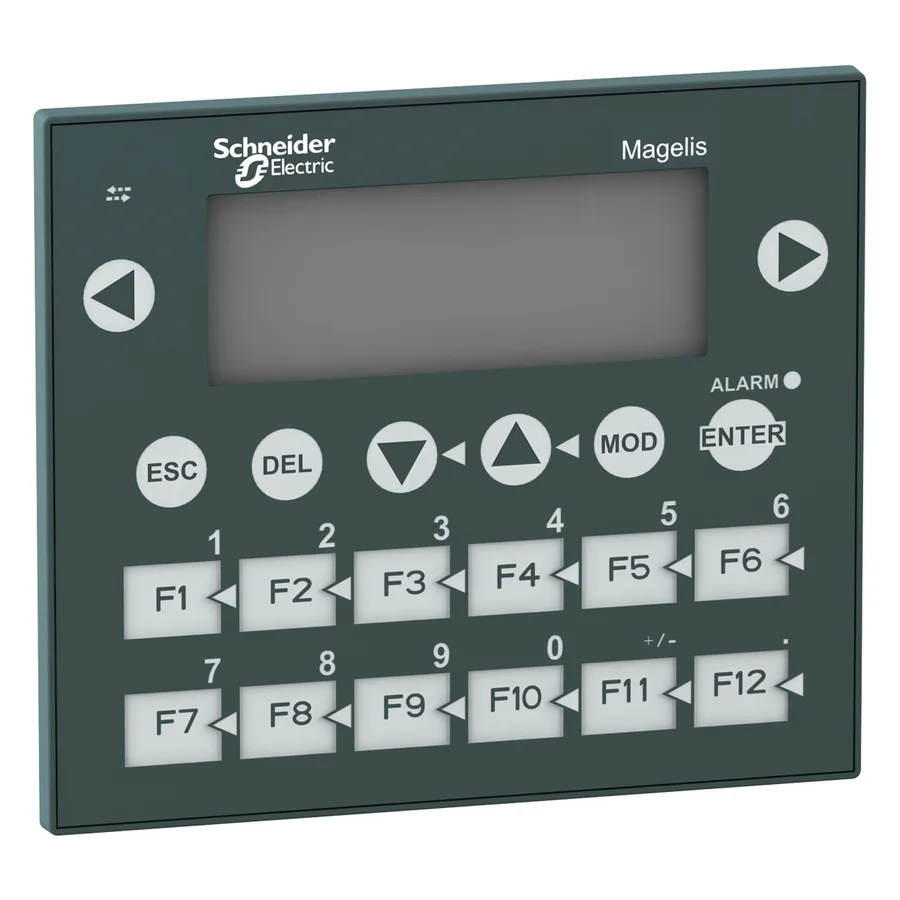

Schneider Electric XBTR411 small panel with keypad - matrix screen - G-O-R - 122 x 32 pixels - 24 V DC, Schneider Electric product photo

Image is for illustrative purposes only. Please refer to product description.

Delivery options

  • FedEx
  • DHL
  • UPS

Schneider Electric XBTR411 is a Magelis XBTR small panel with keypad: a 122 x 32 pixel matrix display, 20 keys and 16 LEDs, on a 24 V DC supply.

Manufacturer
Schneider Electric
Manufacturer part no.
XBTR411
Product family
Magelis XBT HMI Panels (XBTGT, XBTGK, XBTN, XBTR)
Type
HMI text display
Category
HMI panels › Text displays and keypads
Lifecycle
Discontinued
OEM successor
Not stated
Technical datasheet
Data sheet

Technical specifications

Manufacturer
Schneider Electric
Manufacturer part no.
XBTR411
Type
HMI text display
Application
Operator panel
Used with
Schneider Electric and third-party PLCs (Modbus, Uni-TE)
Range of product
Magelis XBTR
Display resolution
122 x 32 pixels
Software type
Configuration software
Software designation
Vijeo Designer Lite
Operating system
Windows
Display type
Matrix backlit LCD
Character font
Latin; Chinese (simplified Chinese); Greek; Cyrillic; Katakana
Supply voltage limits
18…30 V
Residual ripple
<= 1200 MV
Power consumption in W
5 W
Number of key
20
Number of fixed keys
8
Number of customisable keys
12
Local signalling
16 LEDs
Number of pages
200 application pages; 256 alarm pages
Memory type
Flash
Memory capacity
512 KB
Integrated connection type
Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology; Power supply: removable screw terminal block; Printer port: female mini DIN
Realtime clock
Access to the PLC real-time clock
Range compatibility
Modicon Premium; Modicon M340; Twido; Modicon TSX Micro; Modicon Momentum; Modicon Quantum
Product mounting
Flush mounting
Fixing mode
By 4 spring clips
Display material
Polyester
Front material
PPT
Keypad material
Polyester
Show all 51 specifications
Marking
CE
Height
118 mm
Width
137 mm
Depth
39 mm
Cut-out dimensions
119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm
Net weight
0.55 kg
Product or component type
Small panel with keypad
Display colour
Green; Red; Orange
display capacity
4 lines of 20 characters maximum; 1 line of 5 characters minimum
[Us] rated supply voltage
24 V DC
Supply
External source
Downloadable protocols
Modbus; Third party protocols; Uni-TE
Standards
IEC 61131-2; IEC 60068-2-6; CSA C22.2 No 14; IEC 60068-2-27; UL 508
Product certifications
CSA Class 1 Division 2; UL 1604; ATEX zone 2/22; UL Class 1 Division 2
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
0…85 % without condensation
IP degree of protection
IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protection
NEMA 4X front panel (outdoor use)
Shock resistance
15 gn for 11 ms
Vibration resistance
+/- 3.5 mm (f= 2…8.45 Hz); 1 gn (f= 8.45…150 Hz)

Technical documents (1)

Key features

  • Matrix backlit LCD, 4 lines of 20 characters
  • 8 fixed and 12 customisable keys
  • 200 application and 256 alarm pages
  • Modbus and Uni-TE protocols
  • IP65 front panel

About the Schneider Electric XBTR411

The Schneider Electric XBTR411 is a small panel with keypad from the Magelis XBTR range. Schneider Electric gives it a 122 x 32 pixel matrix display showing up to 4 lines of 20 characters, 20 keys and 16 LEDs, configured with Vijeo Designer Lite. Schneider Electric lists it as discontinued on 18 Jan 2021, with end of service on 12 May 2021.

What is the XBTR411 used for?

The XBTR411 is a machine operator panel for Modicon Premium, M340, Quantum, Momentum, TSX Micro and Twido PLCs, with keys for direct commands as well as message display.

Lifecycle and successor

Discontinued.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the reference XBTR411 on the panel's rating label, with its product version. Send us a photo of the label and we will confirm the details before quoting.

Other parts in the Schneider Electric Magelis XBT operator panels family

Listed for reference. They differ from the XBTR411 in rating, supply, interface or function and are not interchangeable with it unless Schneider Electric says so. Match the part number on your unit.
