TE Connectivity 1473006-4

DDR2 SO-DIMM socket: 200 positions, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash

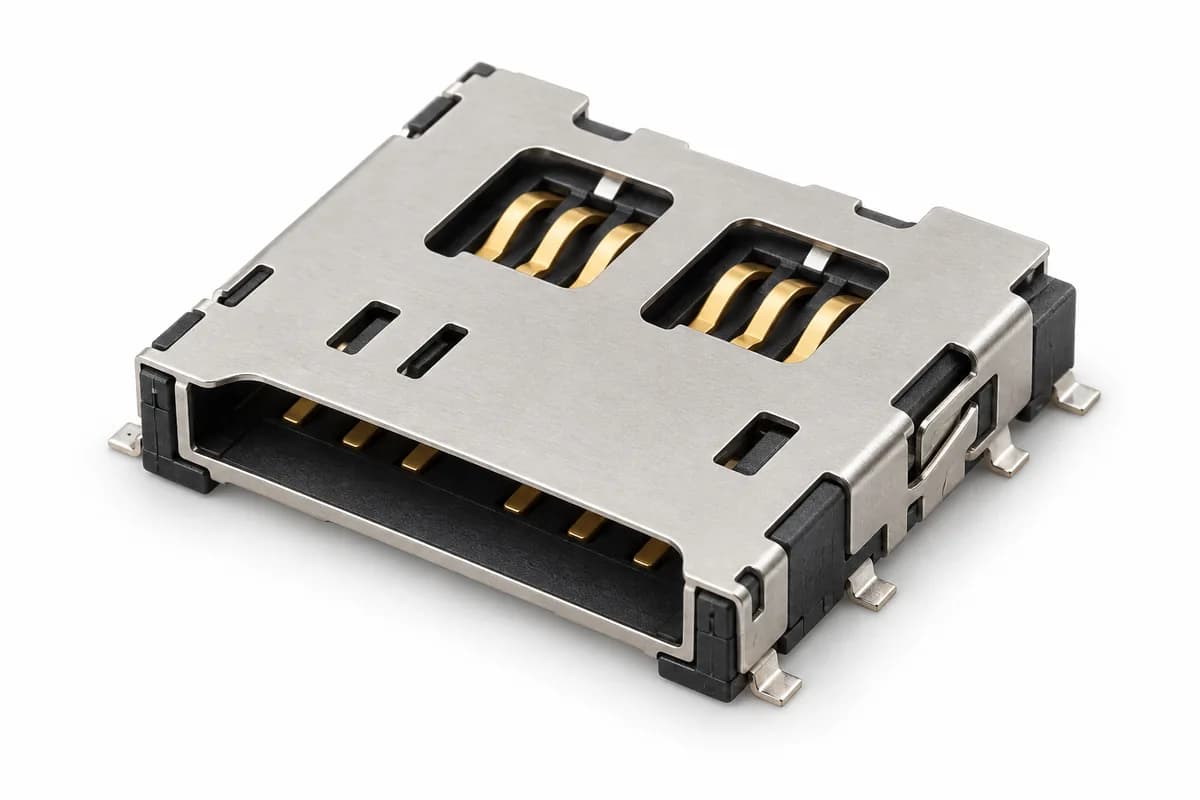

Illustration of a TE Connectivity DDR2 SO-DIMM socket; not a photograph of 1473006-4

Image is for illustrative purposes only. Please refer to product description.

Delivery options

What sets the 1473006-4 apart in the DDR2 and earlier DIMM and SO-DIMM sockets family: DRAM type double Data Rate (DDR) 2, DRAM voltage (V) 1.8 and stack height 5.2 mm [ .205 in ]. The TE Connectivity 1473006-4 is a DDR2 SO-DIMM socket. The individual manufacturer record specifies 200 positions, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash. Check the exact drawing for PCB footprint, keying, contact layout and mechanical clearance.

Manufacturer: TE Connectivity
Manufacturer part no.: 1473006-4
Product family: DDR2, DDR and SDRAM DIMM and SO-DIMM Sockets
Type: DDR2 SO-DIMM socket
Category: Connectors and cables › Memory sockets and card connectors
Lifecycle: Active
OEM successor: Not stated
Technical datasheet: Data sheet

Technical specifications

Manufacturer: TE Connectivity
Manufacturer part no.: 1473006-4
Type: DDR2 SO-DIMM socket
Application: Provides the board connection for a matching removable memory module in computing or embedded equipment. Position count, memory standard and mechanical key must match.
Used with: DDR2 SO-DIMM socket; exact drawing match required
DRAM type: Double Data Rate (DDR) 2
Stack height: 5.2 mm [ .205 in ]
Module orientation: Right Angle
Positions: 200
Pitch: .6 mm [ .024 in ]
Rows: 2
Keys: 1
DRAM voltage (V): 1.8
Ejector location: Both Ends
Ejector type: Locking
Module key position: SGRAM
Latch material: Stainless Steel
PCB termination plating: Gold Flash
Contact material: Copper Alloy
Contact current max (A): .5
Mating plating: Gold Flash

Technical documents (1)

TE Connectivity product page 1473006-4, Documents tab; exact part revision must be checked

Key features

Positions: 200
Stack height: 5.2 mm [ .205 in ]
Module orientation: Right Angle
Mating plating: Gold Flash

About the TE Connectivity 1473006-4

The TE Connectivity 1473006-4 is a DDR2 SO-DIMM socket. The individual manufacturer record specifies 200 positions, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash. Check the exact drawing for PCB footprint, keying, contact layout and mechanical clearance.

What is the 1473006-4 used for?

Provides the board connection for a matching removable memory module in computing or embedded equipment. Position count, memory standard and mechanical key must match.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Provide the complete TE part number, required quantity and packaging. Confirm the exact PCB footprint, contact plating, keying and module or card standard. Confirm lifecycle, stock, condition and lead time separately at quotation.

Other parts in the TE Connectivity DDR2 and earlier DIMM and SO-DIMM sockets family

Listed for reference. They differ from the 1473006-4 in rating, supply, interface or function and are not interchangeable with it unless TE Connectivity says so. Match the part number on your unit.

Product	Type	Lifecycle	Qty Available	Price	Action
TE Connectivity 1473005-4DDR2 SO-DIMM socket, 200 positions, 5.2 mm stack height, standard keying	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1473149-4DDR2 SO-DIMM socket, 200 positions, 5.2 mm stack height, standard keying	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1473150-4DDR2 SO-DIMM socket, 200 positions, 5.2 mm stack height, reverse keying	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1565917-4DDR2 SO-DIMM socket, 200 positions, 5.2 mm stack height, standard keying	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1565918-4DDR2 SO-DIMM socket, 200 positions, 5.2 mm stack height, reverse keying	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1612773-4DDR2 SO-DIMM socket, 200 positions, 6.5 mm stack height, reverse keying	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1-1735251-2DDR2 SO-DIMM socket: 144 positions, 5.2 mm [ .205 in ] stack height, Tape & Reel packaging	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1612618-4DDR2 SO-DIMM socket: 200 positions, 9.2 mm [ .362 in ] stack height, Semi-Hard Tray Assembly packaging	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1717468-4DDR2 SO-DIMM socket: 200 positions, 6.5 mm [ .256 in ] stack height, Semi-Hard Tray Assembly \| Tray packaging	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1827236-4DDR2 SO-DIMM socket: 200 positions, 4.6 mm [ .18 in ] stack height, Box \| Tray packaging	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1827341-4DDR2 SO-DIMM socket: 200 positions, 8 mm [ .315 in ] stack height, Box \| Tray packaging	DDR2 SO-DIMM socket	Active	In stock	On request	View
TE Connectivity 1717379-4DDR2 SO-DIMM socket: 200 positions, Surface Mount, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash, Tape & Reel	DDR2 SO-DIMM socket	Discontinued	In stock	On request	View
