ABB 3BSC690071R1 AI890
AI890 analog input module
Image is for illustrative purposes only. Please refer to product description.
Delivery options
AI890 (3BSC690071R1) is an ABB S800 analog input module with 8 channels. Signal specification: 0...20 mA.
- Manufacturer
- ABB
- Manufacturer part no.
- 3BSC690071R1
- Model
- AI890
- Product family
- S800 I/O Modules
- Type
- Analog input module
- Category
- PLCs and I/O › Analogue I/O modules
- Lifecycle
- To be confirmed
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- ABB
- Manufacturer part no.
- 3BSC690071R1
- Type
- Analog input module
- Application
- Acquires analogue field signals for process monitoring and control.
- Used with
- TU890, TU891
- Module model
- AI890
- Article number
- 3BSC690071R1
- Type
- Analog Input
- Number of channels
- 8
- Signal specification
- 0...20 mA
- Signal type
- Unipolar single ended
- Resolution
- 12 bit
- HART
- No
- SOE
- No
- Redundancy
- No
- High integrity
- No
- Intrinsic safety
- Yes
- Isolation
- Group wise isolated from ground
- Current limiting
- Built in current limited transmitter power
- Update cycle time
- 5 ms
- Power dissipation
- 1.5 W
- Current consumption +5 V Modulebus
- Typ. 70 mA, Max. 150 mA
- Current consumption +24 V external
- Typ. 220 mA, Max. <300 mA
- Temperature, Operating
- 0 to +55 °C (+32 to +131 °F)
- Temperature, Storage
- -40 to +70 °C (-40 to +158 °F)
- Relative humidity
- 5 to 95 %, non-condensing
- Protection class
- IP20 according to IEC 60529
- Use with MTU
- TU890, TU891
- Keying code
- AC
- Width
- 45 mm
Show all 33 specificationsShow fewer
- Height
- 119 mm
- Depth
- 102 mm, 111 mm including connector
- Weight
- 0.2 kg
Technical documents (1)
Key features
- 8 analog input channels
- Signal range: 0...20 mA
- Resolution: 12 bit
- Isolation: Group wise isolated from ground
- Redundancy: No
- HART: No
About the ABB 3BSC690071R1
AI890 (3BSC690071R1) is an ABB S800 analog input module with 8 channels. Signal specification: 0...20 mA. The module uses the S800 mechanical format. The specified resolution is 12 bit. ABB lists group wise isolated from ground isolation. Order number 3BSC690071R1 identifies this module variant; the model name and revision should be checked together before replacement.
What is the 3BSC690071R1 used for?
Acquires analogue field signals for process monitoring and control.
Lifecycle and successor
To be confirmed.
Before you order
What to photograph or confirm so the right unit is quoted.
Confirm both AI890 and order number 3BSC690071R1, hardware revision, installed controller and I/O configuration. Match signal range, channel wiring, termination unit and keying. Confirm redundancy or safety requirements against the OEM system documentation; related modules are not automatically interchangeable.
Other parts in the ABB S800 I/O family
Listed for reference. They differ from the 3BSC690071R1 in rating, supply, interface or function and are not interchangeable with it unless ABB says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| ABB 3BSE008516R1 AI810AI810 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE052604R1 AI815AI815 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE008544R1 AI820AI820 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE036456R1 AI825AI825 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE040662R1 AI830AAI830A analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE051306R1 AI835AAI835A analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE028925R1 AI843AI843 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE023675R1 AI845AI845 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE039293R1 AI880AAI880A analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690141R1 AI893AI893 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690086R1 AI895AI895 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690072R1 AO890AO890 analog output module | Analog output module | To be confirmed | On Request | On request | View |
You may also be interested in
ABB
ABB 3BSE020512R1 AI801
View
ABB

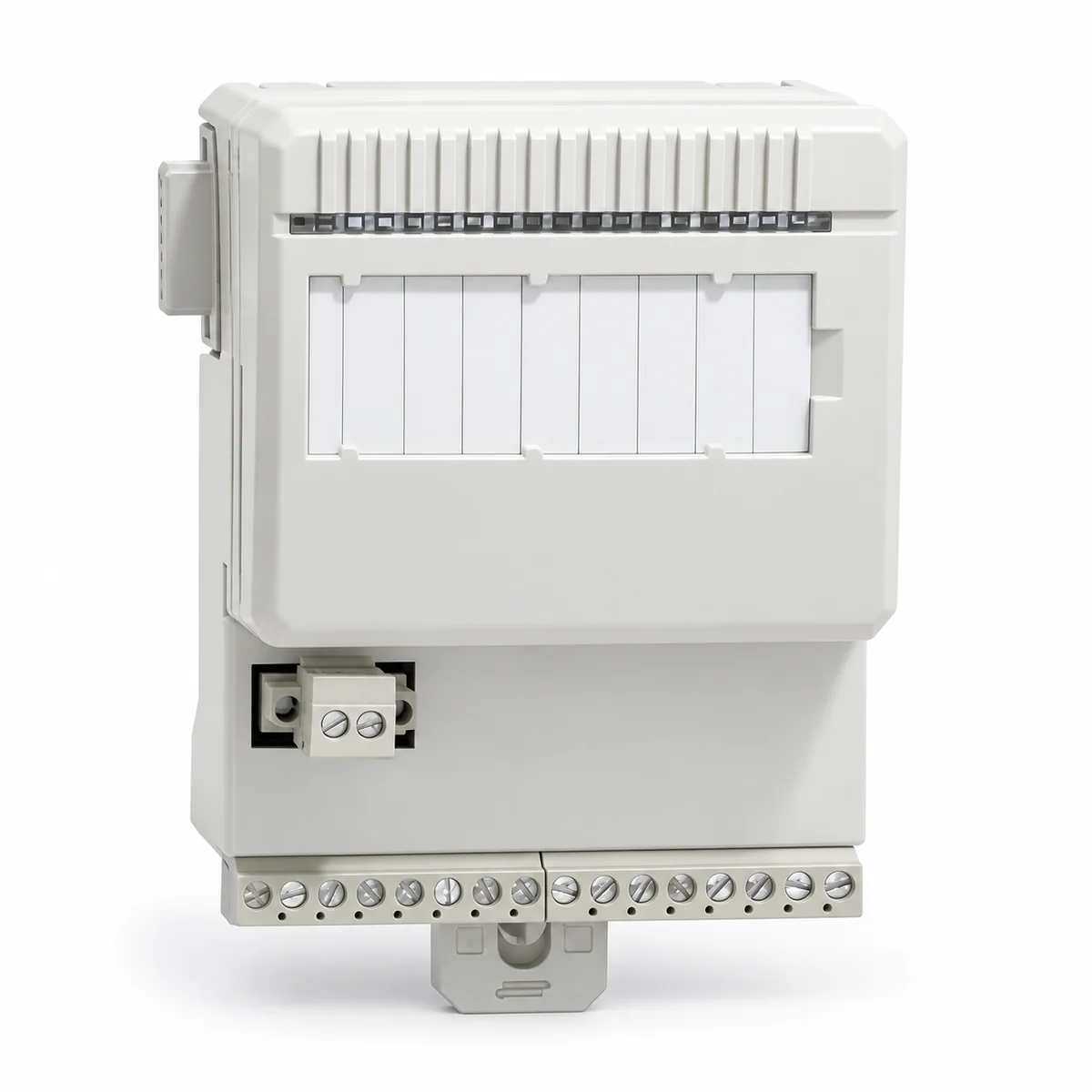

ABB 3BSE020514R1 AO801
View
ABB
ABB 3BSE020508R1 DI801
View
ABB

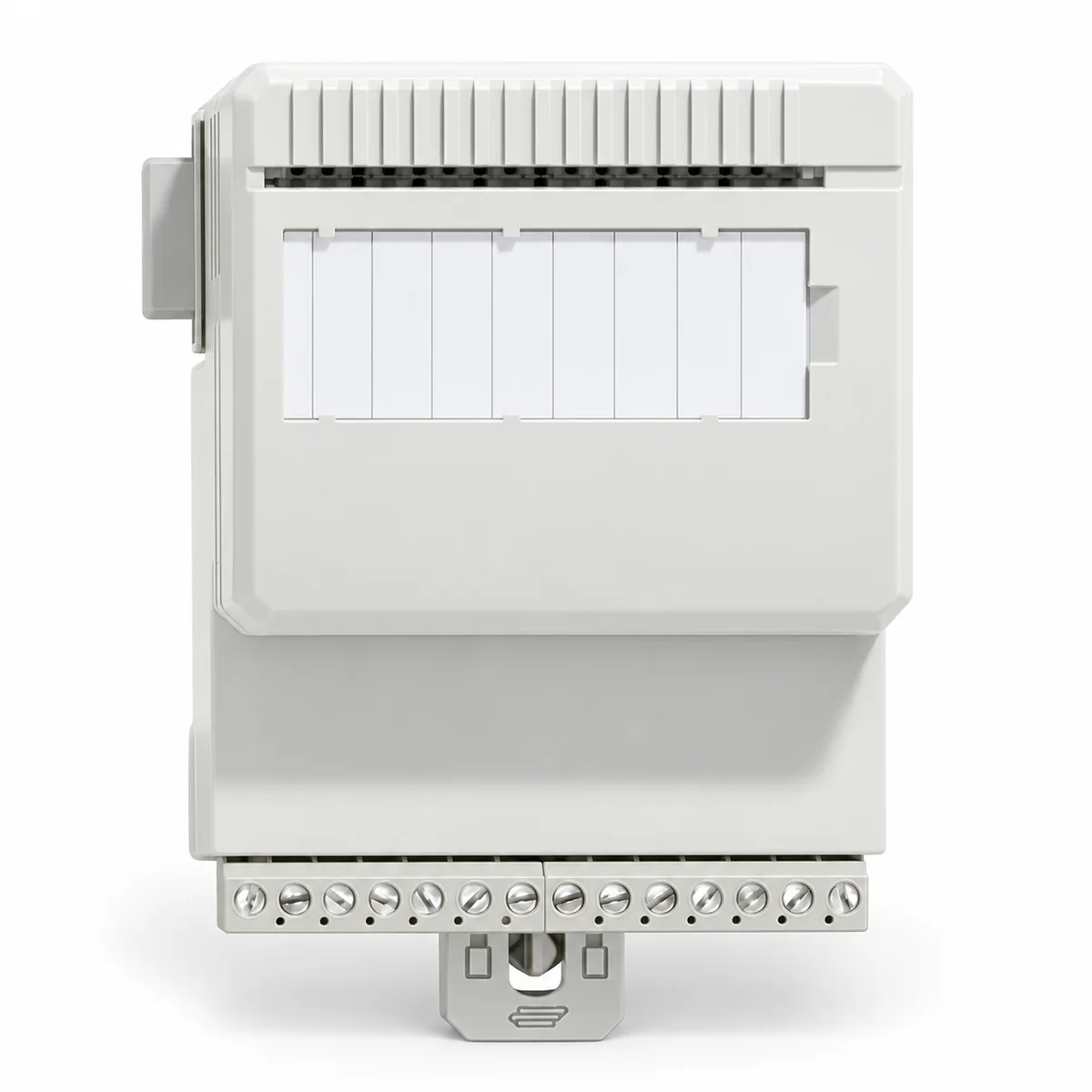

ABB 3BSE022360R1 DI802
View
ABB

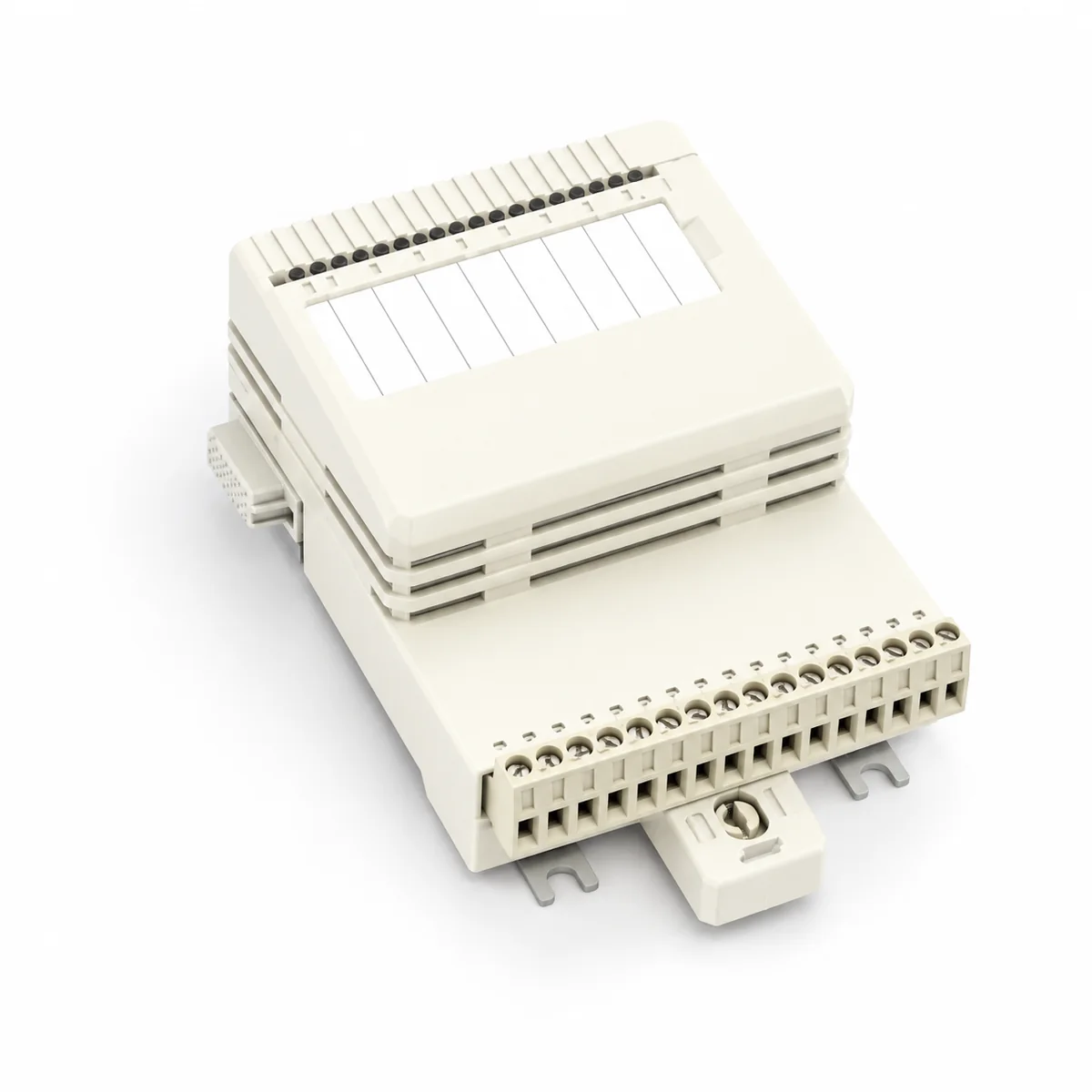

ABB 3BSE022362R1 DI803
