1761-L32BWA

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1761-L32BWA

Type

MicroLogix controller

Application

PLC controller

Used with

MicroLogix system

Communication

DF1

Controller

120/240V AC

Input Signal

24V DC

Interface

RS-232

Memory

1KB

Number Of Channels

20 I/P, 12 O/P

Output Signal

12 Relay

Power Supply

120/240V AC

Technical documents (1)

• Rockwell Automation product page 1761-L32BWA

Key features

• 20 24V DC inputs
• 12 outputs (12 relay)
• 120/240V AC power supply
• Rs-232 port
• DF1 protocols

About the Allen-Bradley 1761-L32BWA

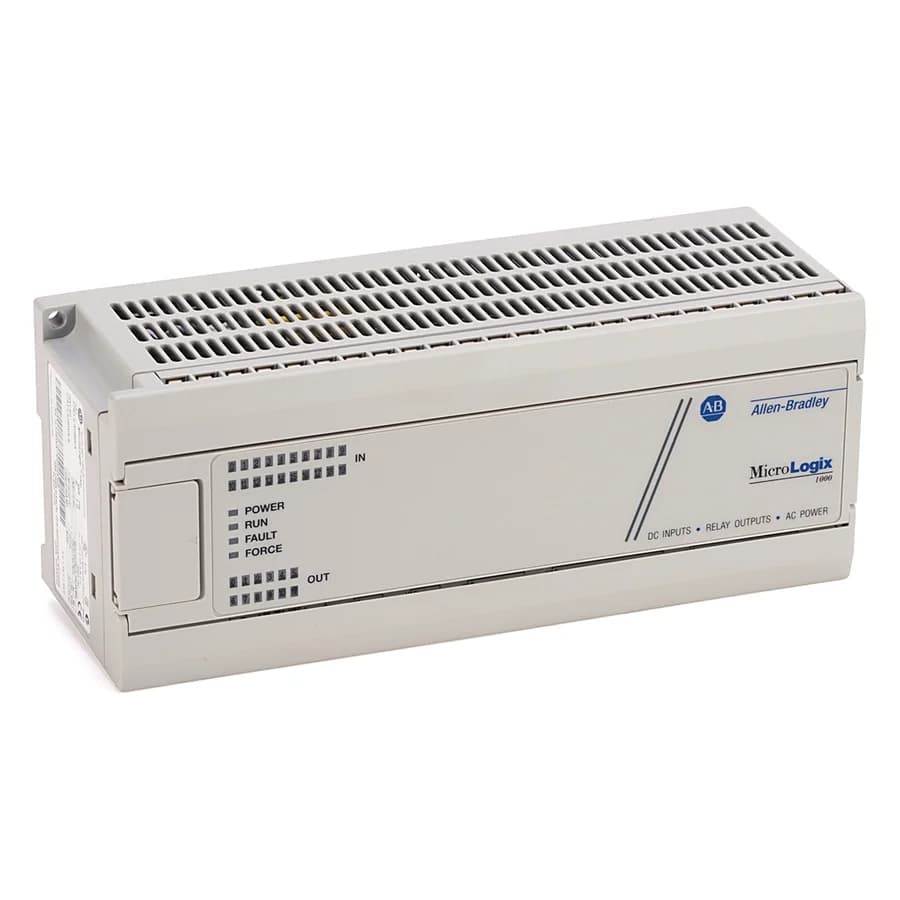

The Allen-Bradley 1761-L32BWA is a MicroLogix 1000 controller with the processor, 32 I/O points and power supply in one unit. Rockwell's product page gives it 20 inputs at 24V DC, 12 outputs (12 relay), a 120/240V AC supply and 1 KB of memory. It has an RS-232 port and communicates using DF1. Rockwell Automation lists it as discontinued.

What is the 1761-L32BWA used for?

The 1761-L32BWA controls a small machine or piece of equipment on its own, reading its 20 inputs and switching its 12 outputs. The letters after the point count give the input, output and supply types, so another 32-point MicroLogix 1000 is not necessarily the same unit.

Lifecycle and successor

Discontinued.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1761-L32BWA on the controller's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
