Allen-Bradley 1783-US5T

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1783-US5T

Type

Industrial Ethernet switch

Application

Industrial Ethernet network

Used with

EtherNet/IP networks

Inrush current

1.85 A

Power input

24V (12…48V DC, 18...30V AC, 50/60 Hz), SELV

Power

3.4 W

Current, nom

DC 180 mA, AC 360 mA

Current, max

DC 380 mA, AC 750 mA

Wire size

2.5 mm2 (14 AWG) copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure, with a suitable ring terminal

Screw torque

0.91 Nm (8.05 inlb)

Enclosure type

None (open-style)

North American

T4

Temperature, operating

-10 °C < Ta < +60 °C (14 °F < Ta < +140 °F)

Temperature, ambient, max

60 °C (140 °F)

Temperature, nonoperating

-40…+85 °C (-40…+185 °F)

Relative humidity

5…95% noncondensing

Vibration

2 g @ 10…500 Hz

Shock, operating

15 g

Shock, nonoperating

30 g

Emissions

IEC 61000-6-4

ESD immunity

6 kV contact discharges 8 kV air discharges

EFT/B immunity

±4 kV at 5 kHz on power ports ±2 kV at 5 kHz on communication ports

Surge transient immunity

±2 kV line-line (DM) and ±4 kV line-earth (CM) on power ports ±2 kV line-earth (CM) on communication ports

Conducted RF immunity

10V rms with 1 kHz sine wave 80% AM from 150 kHz…80 MHz

Environmental rating

IP30

Technical documents (1)

• Rockwell Automation technical data 1783-TD002

Key features

• Stratix 2000 5T port unmanaged switch
• Power input 12…48V DC or 18...30V AC, SELV
• Open-style enclosure with IP30 environmental rating
• Operating temperature -10 °C to +60 °C
• Vibration rating of 2 g at 10…500 Hz

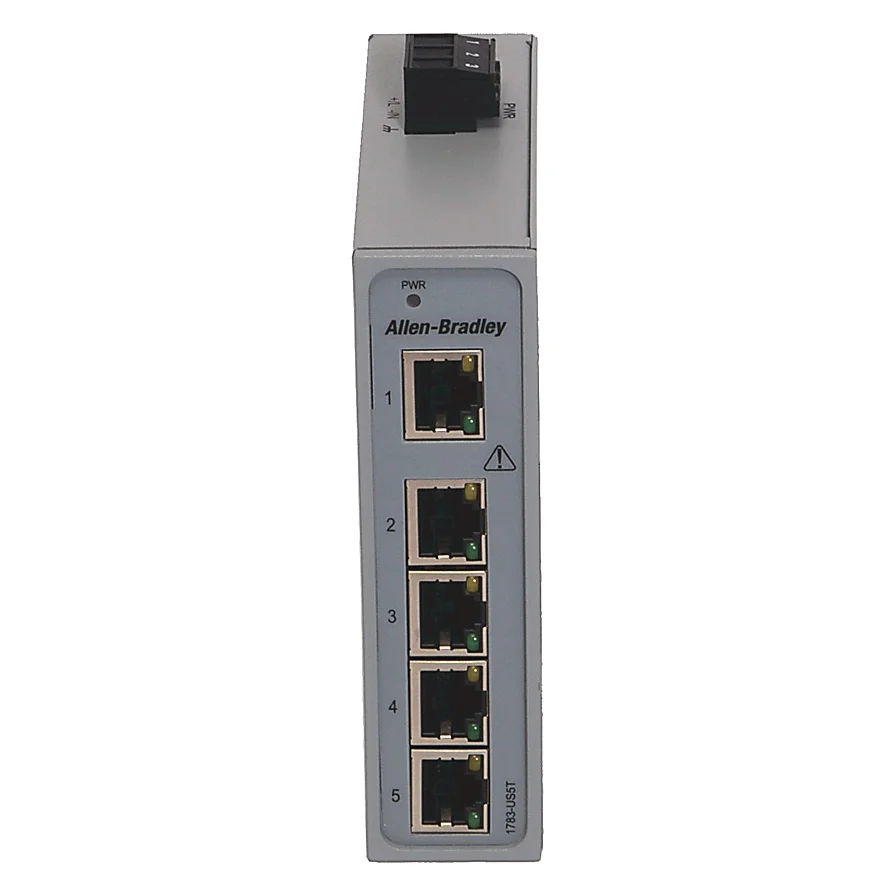

About the Allen-Bradley 1783-US5T

The 1783-US5T is a Stratix 2000 5T port unmanaged switch, now discontinued. Its power input is 24V (12…48V DC, 18...30V AC, 50/60 Hz, SELV), and it uses 3.4 W. It is open-style, rated IP30, and works from -10 °C to +60 °C. The 1783-USP5T is named by the maker as the successor (Functional Replacement).

What is the 1783-US5T used for?

It connects a few Ethernet devices in a control panel without configuration. Nominal current is 180 mA on DC and 360 mA on AC, and both power and communication ports carry immunity ratings.

Lifecycle and successor

Discontinued (Rockwell Automation lifecycle status, checked 24 October 2026).

OEM successor: 1783-USP5T

Before you order

What to photograph or confirm so the right unit is quoted.

Read the catalog number 1783-US5T, the series letter and the firmware revision from the label. Send us a photo of the label and we confirm the match before we quote.
