5069-L320ERMS3K

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

5069-L320ERMS3K

Type

Compact GuardLogix safety controller

Application

PLC controller

Used with

5069 Compact 5000 I/O

Communication

EtherNet/IP, USB

Conformal coating

Yes

Depth

136.81mm, 5.39"

Height

123mm, 4.84"

Interface

11 x 1 Gb EtherNet port

Isolation

300V(cont)

Memory

2MB

Power Supply

MOD Power 18…32V DC SA Power

Processor

Quad Core

Safety Memory

1MB

Technical documents (1)

• Rockwell Automation technical data 5069-TD002

Key features

• 11 x 1 Gb EtherNet port
• Quad-core processor
• MOD Power input 18…32V DC
• EtherNet/IP and USB communication
• 300V continuous isolation

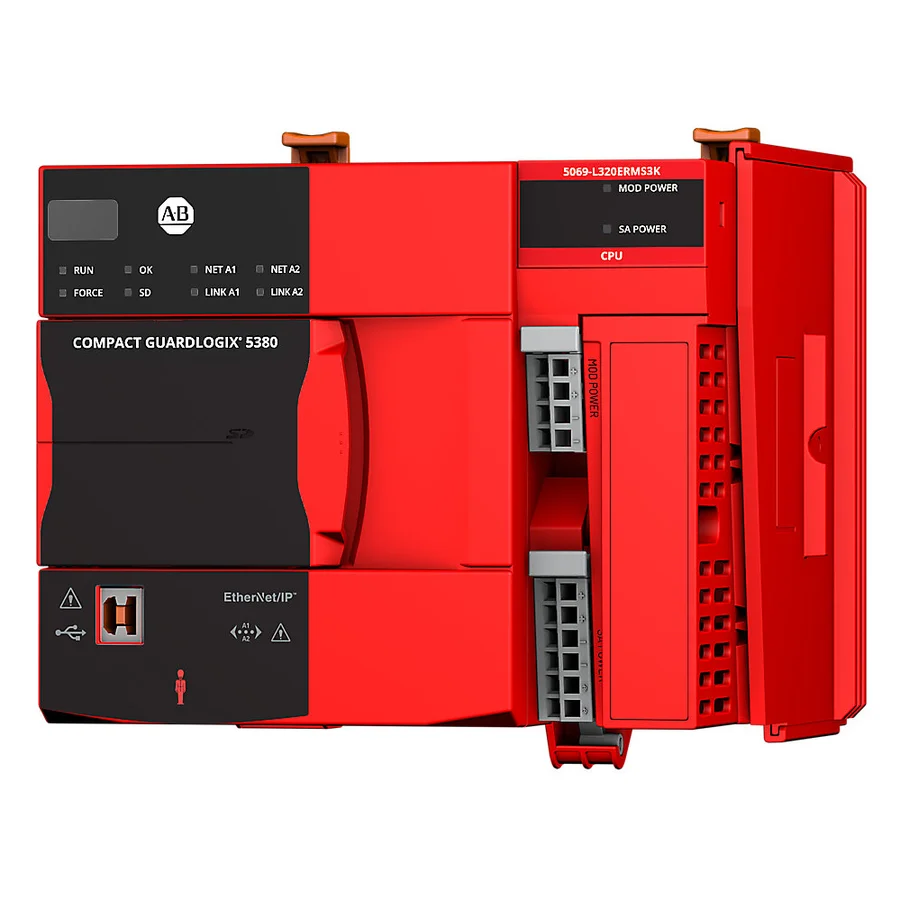

About the Allen-Bradley 5069-L320ERMS3K

The Allen-Bradley 5069-L320ERMS3K is a Compact GuardLogix SIL3 safety controller for 5069 local I/O, in Rockwell's motion version. Rockwell's product page gives it 2 MB of user memory and 1 MB of safety memory, 11 x 1 Gb EtherNet port and a quad-core processor. Its MOD Power input is rated 18…32V DC. Rockwell Automation lists it as Active.

What is the 5069-L320ERMS3K used for?

The 5069-L320ERMS3K runs the control program in a CompactLogix system, working with local 5069 I/O modules and with devices on EtherNet/IP. Alongside its standard tasks it runs a safety task, so standard and safety control share one controller.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 5069-L320ERMS3K on the controller's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
