5069-L350ERMS3K

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

5069-L350ERMS3K

Type

Compact GuardLogix safety controller

Application

PLC controller

Used with

5069 Compact 5000 I/O

Controller tasks

31 standard tasks, 1 safety task 1000 programs/task, All event triggers

USB port

USB 2.0, Type B, Full speed (12 Mbps), Programming, configuration, firmware update, and online edits only

Ethernet performance

10 Mbps, 100 Mbps, 1 Gbps, Full-duplex only

I/O Capacity (Class 0/1)

128,000 without CIP Security 40,000 with integrity 20,000 with integrity and confidentiality

Message Rate Capacity

1000 without CIP Security 750 with integrity 450 with integrity and confidentiality

EtherNet/IP network

DLR, Star, Linear

EtherNet/IP nodes

120

Socket interfaces

32

User memory

5 MB

Safety memory

2.5 MB

Optional nonvolatile

1784-SD1 (1 GB) 1784-SD2 (2 GB), ships with controller 1784-SDHC8 (8 GB) 1784-SDHC32 (32 GB) 9509-CMSDCD4 (4 GB) CodeMeter CmCard SD

Local I/O modules

31

Number of power cycles

80,000

MOD Power voltage range

18…32V DC SELV/PELV

MOD Power current, max

950 mA

MOD Power inrush

2.375 A

MOD Power passthrough voltage range

18…32V DC @ 4.05 A

MOD Power current rating, max

5 A, Do not exceed 5 A current draw at the MOD Power RTB.

SA Power voltage ranges

0…32V DC SELV/PELV

SA Power current, max

10 mA (DC power)

SA Power passthrough voltage ranges

0…32V DC @ 9.99 A

SA Power current rating, max

10 A (DC power), Do not exceed 10 A current draw at the SA Power RTB.

Power dissipation, max

18.0 W

Isolation voltage

300V (continuous), Basic Insulation Type, SA and MOD Power to Backplane 300V (continuous), Basic Insulation Type, USB to Backplane 300V (continuous), Basic Insulation Type, SA to MOD Power 300V (continuous), Double Insulation Type, USB to MOD Power 300V (continuous), Basic Insulation Type, Ethernet to Backplane 300V (continuous), Double Insulation Type, USB to SA Power 300V (continuous), Double Insulation Type, Ethernet to MOD Power No isolation between Ethernet ports 300V (continuous), Double Insulation Type, Ethernet to SA Power Type tested at 1500V AC for 60 seconds 50V (continuous), Functional Insulation Type, Ethernet to USB

Weight, approx

1.2 kg (2.645 lb)

Technical documents (1)

• Rockwell Automation technical data 5069-TD002

Key features

• Ethernet at 10 Mbps, 100 Mbps or 1 Gbps
• 31 standard tasks and 1 safety task
• SD card ships with the controller
• MOD Power 18…32V DC

About the Allen-Bradley 5069-L350ERMS3K

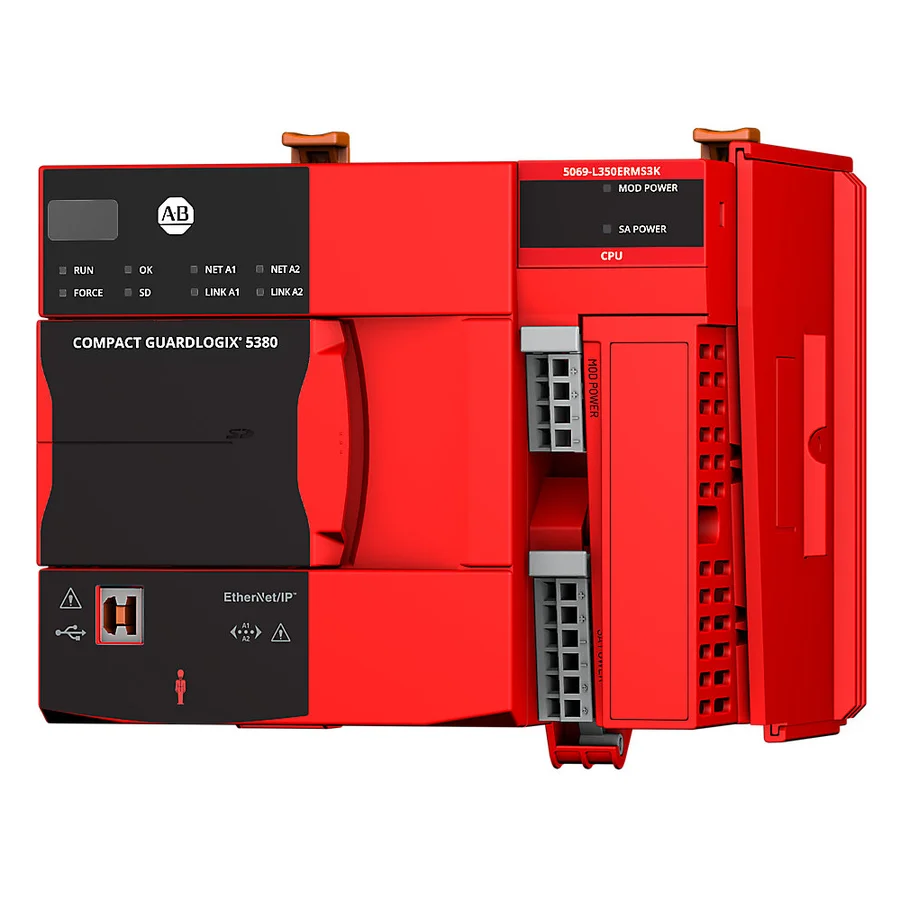

The Allen-Bradley 5069-L350ERMS3K is a Compact GuardLogix SIL3 safety controller for 5069 local I/O, in Rockwell's motion version. Rockwell's technical data gives it 5 MB of user memory and 2.5 MB of safety memory, 120 EtherNet/IP nodes and up to 31 local I/O modules. Its Ethernet ports run at 10 Mbps, 100 Mbps or 1 Gbps. Power dissipation is 18.0 W at most. Rockwell Automation lists it as Active.

What is the 5069-L350ERMS3K used for?

The 5069-L350ERMS3K runs the control program in a CompactLogix system, working with local 5069 I/O modules and with devices on EtherNet/IP. Alongside its standard tasks it runs a safety task, so standard and safety control share one controller.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 5069-L350ERMS3K on the controller's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
