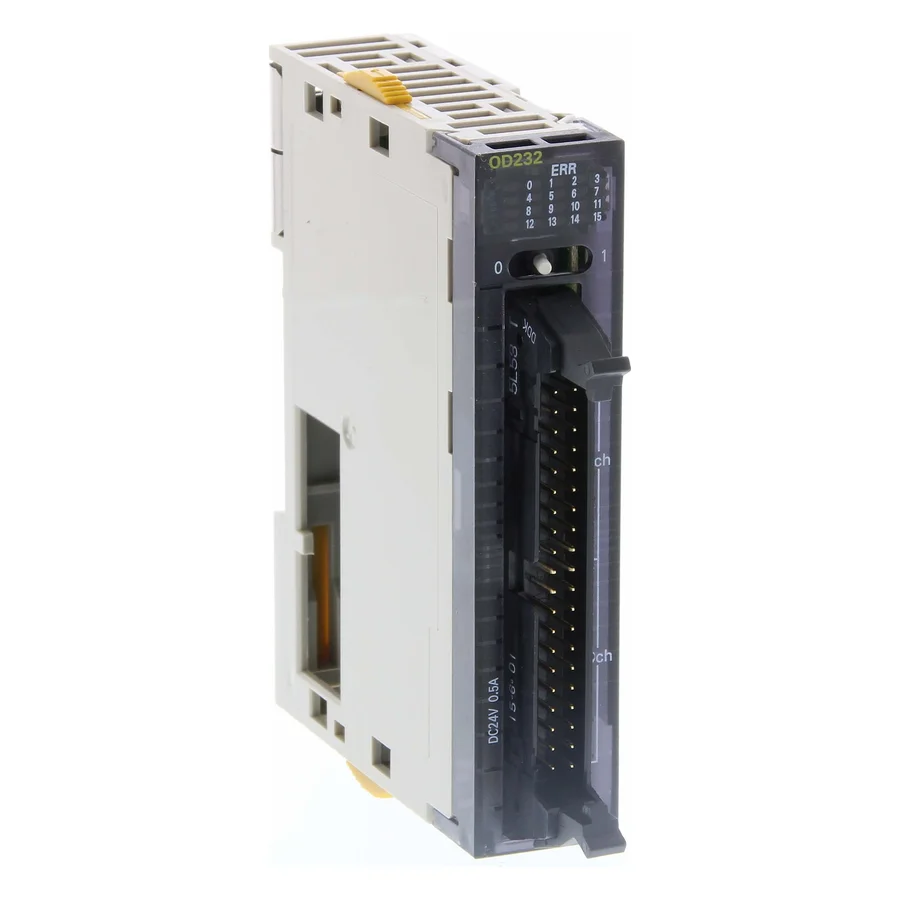

Omron CJ1W-OD232

Technical specifications

Manufacturer

Omron

Manufacturer part no.

CJ1W-OD232

Type

Digital output module

Application

I/O module

Used with

CJ-series CPUs (CJ1, CJ2)

I/O system

CJ I/O Bus

Expansion unit type

Basic I/O Unit

Type of module

Digital I/O

OFF/ON delay

0.5-1 ms

Number of digital outputs

32

Digital output type

PNP

Permitted voltage at output

20.4-26.4 V

Output current

0.5 A

I/O connection type

MIL (plug not included)

Number of I/O connectors

1

Number of IOV (V+) terminals

2

Number of IOG (V-) terminals

2

Height

90 mm

Width

20 mm

Depth

83.6 mm

Weight

70 g

Technical documents (1)

• Omron product page CJ1W-OD232

Key features

• OFF/ON delay: 0.5-1 ms
• Number of I/O connectors: 1
• Expansion unit type: Basic I/O Unit
• Size 90 mm high, 20 mm wide, 83.6 mm deep

About the Omron CJ1W-OD232

The Omron CJ1W-OD232 is a CJ1W digital output unit. Omron describes it as: Digital output unit, 32 x transistor outputs, PNP, 0.5 A, 24 VDC, load short-circuit protection, MIL40 connector (not included). Its specification table gives 32 digital outputs, PNP outputs and 0.5 A output current. Omron's European product page carries no end-of-production notice for it.

What is the CJ1W-OD232 used for?

The CJ1W-OD232 mounts on the CJ I/O bus beside a CJ-series CPU, which reads and writes its digital output signals each cycle.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number CJ1W-OD232 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
