NX102-1200

Technical specifications

Manufacturer

Omron

Manufacturer part no.

NX102-1200

Type

Omron NX1 machine automation controller

Application

PLC controller

Used with

NX I/O units

Controller functionality

Motion control, OPC-UA, Position control, Sequence control

Max. number of synchronous axes

8

Max. number of PTP axes

4

Max. number of axes (incl. virtual)

15

Primary task cycle time

1 ms

Program memory

5 MB

Variables memory

33.5 MB

Communication port(s)

EtherCAT Master, EtherNet/IP, Ethernet TCP/IP

Communication option(s)

Serial RS-232C, Serial RS-422, Serial RS-485

Max. number of remote I/O nodes

64

I/O system

NX I/O Bus

Max. number of expansion units

32

Height

100 mm

Width

66 mm

Depth

100 mm

Weight

470 g

Technical documents (1)

• Omron product page NX102-1200

Key features

• Communication ports: EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
• Primary task cycle time 1 ms
• Up to 32 expansion units
• Controller functions: Motion control, OPC-UA, Position control, Sequence control

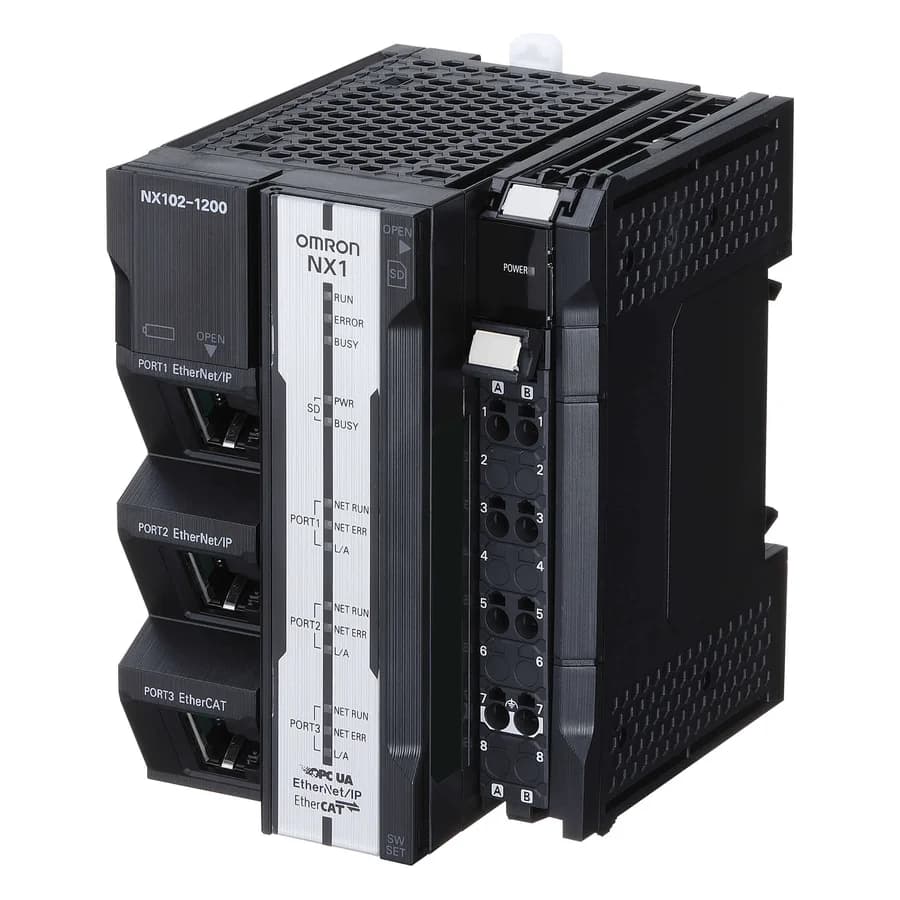

About the Omron NX102-1200

The Omron NX102-1200 is a Sysmac NX102 machine automation controller. Omron describes it as: NX1 programable logic controller built-in EtherNet/IP™ up to 64 connections, EtherCAT® up to 8 synchronous axes. Omron's European product page carries no end-of-production notice for it.

What is the NX102-1200 used for?

The NX102-1200 runs sequence and motion control for a machine, with servo drives and I/O on its EtherCAT network and EtherNet/IP for links to HMIs and other controllers.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number NX102-1200 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
