6EP1333-3BA10

Siemens SITOP PSU200M, 1/2-phase, 24 V DC 5 A

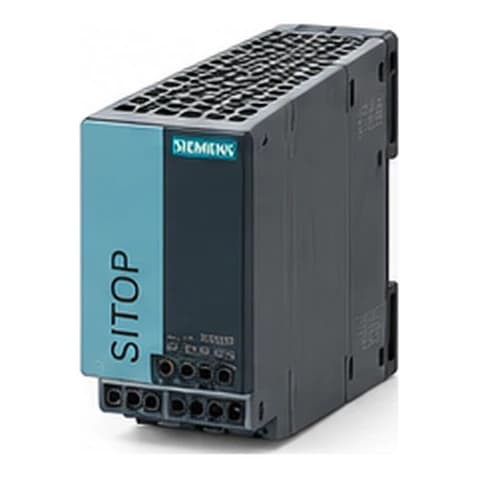

Generic illustration of a Siemens SITOP 24 V DC power supply, not a photograph of 6EP1333-3BA10; the exact product may look different.

Image is for illustrative purposes only. Please refer to product description.

Delivery options

Siemens SITOP PSU200M 5 A stabilized power supply: input 120/230-500 V AC, output 24 V DC, 5 A.

Manufacturer: Siemens
Manufacturer part no.: 6EP1333-3BA10
Product family: SITOP 24 V DC Power Supplies
Type: Power supply
Lifecycle: Active product (Siemens SiePortal)
OEM successor: Not stated
Technical datasheet: Data sheet

Technical specifications

Manufacturer: Siemens
Manufacturer part no.: 6EP1333-3BA10
Type: Power supply
Application: 24 V DC control power supply
Used with: Control cabinets, DIN rail
product type designation: PSU200M
product designation: Power supply SITOP modular
type of current supply: 24 V/5 A
input / type of the power supply network: 1-phase and 2-phase AC
input / phase number: 1
voltage curve at input: AC
input / supply voltage at AC: Set by means of selector switch on the device; starting from Vin > 90/180 V
input / supply voltage 1 at AC: 120 ... 230 V
input / supply voltage 2 at AC: 230 ... 500 V
input voltage 1 at AC: 85 ... 264 V
input voltage 2 at AC: 176 ... 550 V
supply voltage / at 50 Hz: 230 V
supply voltage / at 60 Hz: 120 V
input / line frequency: 50/60 Hz
input / line frequency: 47 ... 63 Hz
wide range input: Yes
input / overvoltage overload capability: 1300 Vpeak, 1.3 ms
input / buffering time for rated value of the output current in the event of power failure minimum: 25 ms
input / operating condition of the mains buffering: at Vin = 120/230 V, typ. 150 ms at Vin = 400 V
input current / at rated input voltage 120 V: 2.2 A
input current / at rated input voltage 230 V: 1.2 A
input current / at rated input voltage 500 V: 0.61 A
input / current limitation of inrush current at 25 °C maximum: 35 A
input / I2t value maximum: 1.7 A²·s
input / fuse protection type: T 3.15 A (not accessible)

Show all 124 specifications

input / fuse protection type in the feeder: Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711- 1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V
voltage curve at output: Controlled, isolated DC voltage
product function output voltage controlled: Yes
product function output voltage stabilized: Yes
output voltage at DC rated value: 24 V
output voltage / at output 1 at DC rated value: 24 V
output voltage / at output 1 at DC: 24 V
output voltage adjustable: Yes; via potentiometer
adjustable output voltage: 24 ... 28.8 V
output / relative overall tolerance of the voltage: 3 %
relative control precision of the output voltage / on slow fluctuation of input voltage: 0.1 %
relative control precision of the output voltage / on slow fluctuation of ohm loading: 0.1 %
residual ripple / maximum: 50 mV
voltage peak / maximum: 200 mV
output / display version for normal operation: Green LED for 24 V OK
type of signal at output: relay contact (normally open, contact rating (SELV (ES1) must be observed): 30 V DC/0.1 A
behavior of the output voltage when switching on: Overshoot of Vout approx. 3 %
output / response delay maximum: 1 s
voltage increase time of the output voltage / typical: 50 ms
output current / rated value: 5 A
output current / rated range: 0 ... 5 A
output / supplied active power typical: 120 W
short-term overload current / at short-circuit during operation typical: 15 A
duration of overloading capability for excess current / at short-circuit during operation: 25 ms
constant overload current / on short-circuiting during the start-up typical: 6 A
output / bridging of equipment: Yes; switchable characteristic
output / number of parallel-switched equipment resources for increasing the power: 2
efficiency in percent: 88 %
power loss [W] / at rated output voltage for rated value of the output current typical: 17 W
power loss [W] / during no-load operation maximum: 4 W
closed-loop control / relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical: 0.1 %
closed-loop control / relative control precision of the output voltage load step of resistive load 50/100/50 % typical: 3 %
setting time / load step 50 to 100% typical: 2 ms
setting time / load step 100 to 50% typical: 2 ms
setting time / maximum: 5 ms
design of the overvoltage protection: < 35 V
protection and monitoring / property of the output short-circuit proof: Yes
design of short-circuit protection: Alternatively, constant current characteristic approx. 5.5 A or latching shutdown
protection and monitoring / typical: 6 A
enduring short circuit current RMS value / typical: 6 A
protection and monitoring / display version for overload and short circuit: LED yellow for "overload", LED red for "latching shutdown"
safety / galvanic isolation between input and output: Yes
safety / galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
safety / operating resource protection class: Class I
leakage current / maximum: 3.5 mA
leakage current / typical: 0.25 mA
safety / protection class IP: IP20
standard / for emitted interference: EN 55022 Class B
standard / for mains harmonics limitation: EN 61000-3-2
standard / for interference immunity: EN 61000-6-2
certificate of suitability / CE marking: Yes
certificate of suitability / UL approval: Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability / UKCA marking: Yes
certificate of suitability / EAC approval: Yes
certificate of suitability / Regulatory Compliance Mark (RCM): Yes
certificate of suitability / NEC Class 2: No
certificate of suitability / SEMI F47: Yes
type of certification / BIS: Yes; R-41183539, R-41188271
type of certification / CB-certificate: Yes
standards, specifications, approvals / MTBF at 40 °C: 1 123 973 h
certificate of suitability / IECEx: No
certificate of suitability / ATEX: No
certificate of suitability / ULhazloc approval: No
certificate of suitability / FM registration: No
standards, specifications, approvals marine classification / shipbuilding approval: Yes
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS): Yes
Marine classification association / French marine classification society (BV): No
Marine classification association / Det Norske Veritas (DNV): Yes
Marine classification association / Lloyds Register of Shipping (LRS): No
standards, specifications, approvals Environmental Product Declaration / Environmental Product Declaration: Yes
global warming potential [CO2 eq] / total: 445.1 kg
global warming potential [CO2 eq] / during manufacturing: 14.4 kg
global warming potential [CO2 eq] / during operation: 430.5 kg
global warming potential [CO2 eq] / after end of life: 0.12 kg
ambient temperature / during operation: -25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage
ambient temperature / during transport: -40 ... +85 °C
ambient temperature / during storage: -40 ... +85 °C
ambient conditions / environmental category according to IEC 60721: Climate class 3K3, 5 ... 95% no condensation
type of electrical connection: screw terminal
at input: L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded
at output: +, -: 2 screw terminals each for 0.2 ... 2.5 mm²
for auxiliary contacts: 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²
mechanical data / width × height × depth of the enclosure: 70 × 125 × 121 mm
mechanical data / installation width × mounting height: 70 mm × 225 mm
required spacing / top: 50 mm
required spacing / bottom: 50 mm
required spacing / left: 0 mm
required spacing / right: 0 mm
mechanical data / fastening method: Snaps onto DIN rail EN 60715 35x7.5/15
mechanical data / DIN-rail mounting: Yes
mechanical data / S7 rail mounting: No
mechanical data / wall mounting: No
mechanical data / housing can be lined up: Yes
mechanical data / net weight: 0.6 kg

Technical documents (1)

Siemens data sheet 6EP1333-3BA10

Key features

Input 85-264 V or 176-550 V AC
Output 24 V DC, 5 A
25 ms mains buffering at rated load
Efficiency 88 %
Two units can be connected in parallel for more power

About the Siemens 6EP1333-3BA10

The Siemens 6EP1333-3BA10 is the SITOP PSU200M 5 A. Siemens's data sheet gives two input ranges, 85-264 V and 176-550 V AC, a stabilized 24 V DC output at 5 A, 25 ms of mains buffering at rated output current, an efficiency of 88 % and parallel connection of two units for more power. SiePortal lists it as an active product.

What is the 6EP1333-3BA10 used for?

It supplies 24 V DC to the control circuits in a cabinet: PLC and I/O modules, sensors, HMI panels, relays and contactor coils.

Lifecycle and successor

Active product (Siemens SiePortal).

Before you order

What to photograph or confirm so the right unit is quoted.

Check the order number and the rating (input voltage, 24 V output current) on the unit's label, and add up the 24 V load before choosing a larger or smaller replacement.
