Siemens 6ES7131-4BD01-0AA0
ET 200S electronic module, 4 DI, 24 V DC, pack of 5
Read from the product label
- Maker
- Siemens
- Part no.
- 6ES7131-4BD01-0AA0
- Serial / rev.
- as printed on your unit
Image is for illustrative purposes only. Please refer to product description.
Delivery options
Siemens SIMATIC ET 200S electronic modules: 4 digital inputs at 24 V DC, standard, 15 mm wide, sold as a pack of 5.
- Manufacturer
- Siemens
- Manufacturer part no.
- 6ES7131-4BD01-0AA0
- Product family
- SIMATIC ET 200S Distributed I/O
- Type
- Digital input module
- Category
- PLCs and I/O › Digital I/O modules
- Lifecycle
- Discontinued
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- Siemens
- Manufacturer part no.
- 6ES7131-4BD01-0AA0
- Type
- Digital input module
- Application
- Digital input module
- Used with
- ET 200S station
- Supply voltage / Rated value (DC)
- 24 V; From power module
- Supply voltage / Reverse polarity protection
- Yes
- Input current / from supply voltage L+, max.
- Dependent on encoder
- Input current / from backplane bus 3.3 V DC, max.
- 10 mA
- Encoder supply / Type of output voltage
- min. L+ (-0.5 V), under load
- Output current / Rated value
- 500 mA
- Output current / permissible range, lower limit
- 0 mA
- Output current / permissible range, upper limit
- 500 mA
- Power loss, typ.
- 0.7 W
- Address space per module / Address space per module, max.
- 1 byte
- Address space per module / with packing
- 4 bit
- Number of digital inputs
- 4
- Digital inputs / Input characteristic curve in accordance with IEC 61131, type 1
- Yes
- Input voltage / Type of input voltage
- DC
- Input voltage / Rated value (DC)
- 24 V
- Input voltage / for signal "0"
- -30 to +5 V
- Input voltage / for signal "1"
- +15 to +30 V
- Input current / for signal "1", typ.
- 7 mA; at 24 V
- Input delay (for rated value of input voltage) / for standard inputs / parameterizable
- No
- Input delay (for rated value of input voltage) / for standard inputs / at "0" to "1", min.
- 2 ms; typically 3 ms
- Input delay (for rated value of input voltage) / for standard inputs / at "0" to "1", max.
- 4.5 ms
- Input delay (for rated value of input voltage) / for standard inputs / at "1" to "0", min.
- 2 ms; typically 3 ms
- Input delay (for rated value of input voltage) / for standard inputs / at "1" to "0", max.
- 4.5 ms
- Cable length / shielded, max.
- 1 000 m
- Cable length / unshielded, max.
- 600 m
Show all 42 specificationsShow fewer
- Connectable encoders / 2-wire sensor
- Yes
- Connectable encoders / 2-wire sensor / permissible quiescent current (2-wire sensor), max.
- 1.5 mA
- Interrupts/diagnostics/status information / Diagnostics function
- No
- Diagnostics indication LED / Group error SF (red)
- No
- Diagnostics indication LED / Status indicator digital input (green)
- Yes; per channel
- Potential separation digital inputs / between the channels
- No
- Potential separation digital inputs / between the channels and backplane bus
- Yes
- Isolation tested with
- 500 V DC
- Width
- 15 mm
- Height
- 81 mm
- Depth
- 52 mm
- Weight, approx.
- 35 g
Technical documents (1)
Key features
- 4 digital inputs, 24 V DC, IEC 61131 type 1
- 15 mm wide
- Sensor supply up to 500 mA
- Supplied as 5 modules per pack
- Discontinued by Siemens on 1 October 2023; spare part only
About the Siemens 6ES7131-4BD01-0AA0
The Siemens 6ES7131-4BD01-0AA0 is the standard 4-channel 24 V DC input module of the ET 200S, supplied by Siemens as a pack of 5 modules. Siemens's data sheet gives 4 inputs at 24 V DC (IEC 61131 type 1), signal "1" at 15 to 30 V, a sensor supply of up to 500 mA, a 15 mm width and up to 1,000 m of shielded cable. SiePortal shows the phase-out announced on 1 October 2020 and the product cancellation on 1 October 2023, and siemens's data sheet marks it as a spare part.
What is the 6ES7131-4BD01-0AA0 used for?
It reads switches and sensors into an ET 200S station, four at a time.
Lifecycle and successor
Discontinued.
Before you order
What to photograph or confirm so the right unit is quoted.
Quote the quantity in packs of 5, and check the order number on the module's front.
Other parts in the Siemens SIMATIC ET 200S family
Listed for reference. They differ from the 6ES7131-4BD01-0AA0 in rating, supply, interface or function and are not interchangeable with it unless Siemens says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| Siemens 6ES7151-3BA23-0AB0IM 151-3 PN HF interface module for ET 200S, PROFINET | Interface module | Discontinued | On Request | On request | View |
You may also be interested in
Siemens
Siemens 6ES7153-1AA03-0XB0
View
Siemens
Siemens 6ES7153-2BA10-0XB0
View
Siemens
Siemens 6ES7155-6AU01-0CN0
View
Siemens
Siemens 6ES7193-6AR00-0AA0
View
Siemens
Siemens 6ES7193-6BP00-0DA0
View
Siemens
Siemens 6ES7193-6BP00-0BA0
View
Siemens
Siemens 6ES7131-6BH01-0BA0
View
Siemens

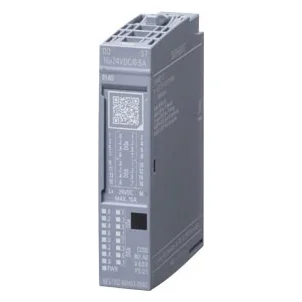

Siemens 6ES7132-6BH01-0BA0
