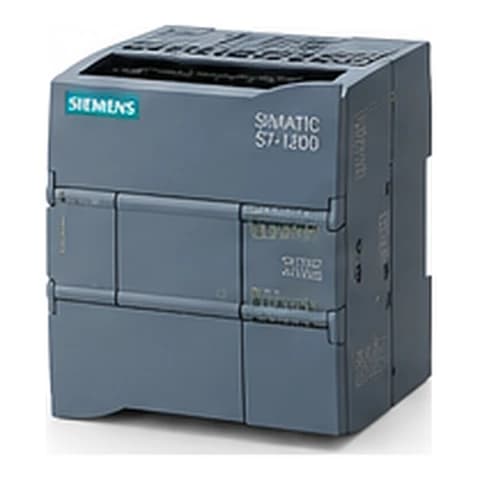

Image is for illustrative purposes only. Please refer to product description.
- Manufacturer
- Siemens
- Manufacturer part number
- 6ES7214-1AG40-0XB0
- Product family
- SIMATIC S7-1200 PLC
- Category
- PLCs and I/O › CPU and processor modules
- Technical datasheet
- Data sheet
Specifications
| Attribute | Value |
|---|---|
| Type | PLC CPU |
| Manufacturer lifecycle | Active |
| Product type designation | CPU 1214C DC/DC/DC |
| Firmware version | V4.7 |
| Engineering with / Programming package | STEP 7 V20 or higher |
| Rated value (DC) / 24 V DC | Yes |
| Supply voltage / permissible range, lower limit (DC) | 20.4 V |
| Supply voltage / permissible range, upper limit (DC) | 28.8 V |
| Supply voltage / Reverse polarity protection | Yes |
| Load voltage L+ / Rated value (DC) | 24 V |
| Load voltage L+ / permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+ / permissible range, upper limit (DC) | 28.8 V |
| Input current / Current consumption (rated value) | 500 mA; CPU only |
| Input current / Current consumption, max. | 1 500 mA; CPU with all expansion modules |
| Input current / Inrush current, max. | 12 A; at 28.8 V |
Show all 245 specificationsShow fewer specifications
| Input current / I²t | 0.5 A²·s |
|---|---|
| Output current / for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM |
| 24 V encoder supply / 24 V | L+ minus 4 V DC min. |
| Power loss, typ. | 12 W |
| Work memory / integrated | 150 kbyte |
| Load memory / Integrated | 4 Mbyte |
| Load memory / Plug-in (SIMATIC Memory Card), max. | with SIMATIC memory card |
| Backup / present | Yes |
| Backup / maintenance-free | Yes |
| Backup / without battery | Yes |
| CPU processing times / for bit operations, typ. | 0.08 µs; / instruction |
| CPU processing times / for word operations, typ. | 1.7 µs; / instruction |
| CPU processing times / for floating point arithmetic, typ. | 2.3 µs; / instruction |
| CPU-blocks / Number of elements (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
| OB / Number, max. | Limited only by RAM for code |
| Retentive data area (incl. timers, counters, flags), max. | 14 kbyte |
| Flag / Size, max. | 8 kbyte; Size of bit memory address area |
| Local data / per priority class, max. | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
| Process image / Inputs, adjustable | 1 kbyte |
| Process image / Outputs, adjustable | 1 kbyte |
| Hardware configuration / Number of modules per system, max. | 3 comm. modules, 1 signal board, 8 signal modules |
| Number of modules per system, max. / number of expansion boards (SB, CB, BB) | 1 |
| Number of modules per system, max. / number of signal modules (SM) | 8 |
| Number of modules per system, max. / number of communications modules (CM) | 3 |
| Clock / Hardware clock (real-time) | Yes |
| Clock / Backup time | 480 h; Typical |
| Clock / Deviation per day, max. | ±60 s/month at 25 °C |
| Number of digital inputs | 14; Integrated |
| Number of digital inputs / of which inputs usable for technological functions | 6; HSC (High Speed Counting) |
| Digital inputs / Sourcing/sinking input | Yes |
| Number of simultaneously controllable inputs / all mounting positions / up to 40 °C, max. | 14 |
| Input voltage / Rated value (DC) | 24 V |
| Input voltage / for signal "0" | 5 V DC at 1 mA |
| Input voltage / for signal "1" | 15 V DC at 2.5 mA |
| Input delay (for rated value of input voltage) / for standard inputs / parameterizable | 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms |
| Input delay (for rated value of input voltage) / for standard inputs / at "0" to "1", min. | 0.2 ms |
| Input delay (for rated value of input voltage) / for standard inputs / at "0" to "1", max. | 12.8 ms |
| Input delay (for rated value of input voltage) / for interrupt inputs / Parameterizable | Yes |
| Input delay (for rated value of input voltage) / for technological functions / Parameterizable | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
| Digital inputs / Cable length / shielded, max. | 500 m; 50 m for technological functions |
| Digital inputs / Cable length / unshielded, max. | 300 m; for technological functions: No |
| Number of digital outputs | 10 |
| Number of digital outputs / of which high-speed outputs | 4; 100 kHz Pulse Train Output |
| Digital outputs / Limitation of inductive shutdown voltage to | L+ (-48 V) |
| Switching capacity of the outputs / with resistive load, max. | 0.5 A |
| Switching capacity of the outputs / on lamp load, max. | 5 W |
| Output voltage / for signal "0", max. | 0.1 V; with 10 kOhm load |
| Output voltage / for signal "1", min. | 20 V |
| Output current / for signal "1" rated value | 0.5 A |
| Output current / for signal "0" residual current, max. | 0.1 mA |
| Output delay with resistive load / "0" to "1", max. | 1 µs |
| Output delay with resistive load / "1" to "0", max. | 5 µs |
| Switching frequency / of the pulse outputs, with resistive load, max. | 100 kHz |
| Relay outputs / Number of relay outputs | 0 |
| Digital outputs / Cable length / shielded, max. | 500 m |
| Digital outputs / Cable length / unshielded, max. | 150 m |
| Number of analog inputs | 2 |
| Input ranges / Voltage | Yes |
| Input ranges (rated values), voltages / 0 to +10 V | Yes |
| Input ranges (rated values), voltages / 0 to +10 V / Input resistance (0 to 10 V) | ≥100k ohms |
| Analog inputs / Cable length / shielded, max. | 100 m; twisted and shielded |
| Number of analog outputs | 0 |
| Integration and conversion time/resolution per channel / Resolution with overrange (bit including sign), max. | 10 bit |
| Integration and conversion time/resolution per channel / Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel / Conversion time (per channel) | 625 µs |
| Connectable encoders / 2-wire sensor | Yes |
| Number of PROFINET interfaces | 1 |
| 1. Interface / Interface type | PROFINET |
| 1. Interface / Isolated | Yes |
| 1. Interface / automatic detection of transmission rate | Yes |
| 1. Interface / Autonegotiation | Yes |
| 1. Interface / Autocrossing | Yes |
| Interface types / RJ 45 (Ethernet) | Yes |
| Interface types / Number of ports | 1 |
| Interface types / integrated switch | No |
| Protocols / PROFINET IO Controller | Yes |
| Protocols / PROFINET IO device | Yes |
| Protocols / SIMATIC communication | Yes |
| Protocols / Open IE communication | Yes; Optionally also encrypted |
| Protocols / Web server | Yes |
| Protocols / Media redundancy | No |
| PROFINET IO Controller / Transmission rate, max. | 100 Mbit/s |
| PROFINET IO Controller / Services / PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| PROFINET IO Controller / Services / Isochronous mode | No |
| PROFINET IO Controller / Services / IRT | No |
| PROFINET IO Controller / Services / PROFIenergy | No |
| PROFINET IO Controller / Services / Prioritized startup | Yes |
| PROFINET IO Controller / Services / Number of IO devices with prioritized startup, max. | 16 |
| PROFINET IO Controller / Services / Number of connectable IO Devices, max. | 16 |
| PROFINET IO Controller / Services / Number of connectable IO Devices for RT, max. | 16 |
| PROFINET IO Controller / Services / of which in line, max. | 16 |
| PROFINET IO Controller / Services / Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| PROFINET IO Controller / Services / Updating time | The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data. |
| PROFINET IO Device / Services / PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| PROFINET IO Device / Services / Isochronous mode | No |
| PROFINET IO Device / Services / IRT | No |
| PROFINET IO Device / Services / Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device / Services / PROFIenergy | Yes |
| PROFINET IO Device / Services / Prioritized startup | Yes |
| PROFINET IO Device / Services / Shared device | Yes |
| PROFINET IO Device / Services / Number of IO Controllers with shared device, max. | 2 |
| PROFINET IO Device / Services / Asset management record | Yes |
| Protocols / Supports protocol for PROFINET IO | Yes |
| Protocols / PROFIsafe | No |
| Protocols / PROFIBUS | Yes; CM 1243-5 (master) or CM 1242-5 (slave) required |
| Protocols / OPC UA | Yes; OPC UA Server |
| Protocols / AS-Interface | Yes; CM 1243-2 required |
| Protocols (Ethernet) / TCP/IP | Yes |
| Protocols (Ethernet) / DHCP | No |
| Protocols (Ethernet) / SNMP | Yes |
| Protocols (Ethernet) / DCP | Yes |
| Protocols (Ethernet) / LLDP | Yes |
| Redundancy mode / PROFINET system redundancy (S2) | No |
| Redundancy mode / PROFINET system redundancy (R1) | No |
| Redundancy mode / Media redundancy / MRP | No |
| Redundancy mode / Media redundancy / MRP interconnection, supported | No |
| Redundancy mode / Media redundancy / MRPD | No |
| SIMATIC communication / S7 routing | Yes |
| Open IE communication / TCP/IP | Yes |
| Open IE communication / TCP/IP / Data length, max. | 8 kbyte |
| Open IE communication / ISO-on-TCP (RFC1006) | Yes |
| Open IE communication / ISO-on-TCP (RFC1006) / Data length, max. | 8 kbyte |
| Open IE communication / UDP | Yes |
| Open IE communication / UDP / Data length, max. | 1 472 byte |
| Web server / supported | Yes |
| Web server / User-defined websites | Yes |
| OPC UA / Runtime license required | Yes; "Basic" license required |
| OPC UA / Runtime license required / OPC UA Server | Yes; data access (read, write, subscribe), method call, runtime license required |
| OPC UA / Runtime license required / OPC UA Server / Application authentication | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA / Runtime license required / OPC UA Server / User authentication | "anonymous" or by user name & password |
| OPC UA / Runtime license required / OPC UA Server / Number of sessions, max. | 10 |
| OPC UA / Runtime license required / OPC UA Server / Number of subscriptions per session, max. | 5 |
| OPC UA / Runtime license required / OPC UA Server / Sampling interval, min. | 100 ms |
| OPC UA / Runtime license required / OPC UA Server / Publishing interval, min. | 200 ms |
| OPC UA / Runtime license required / OPC UA Server / Number of server methods, max. | 20 |
| OPC UA / Runtime license required / OPC UA Server / Number of monitored items, recommended max. | 1 000 |
| OPC UA / Runtime license required / OPC UA Server / Number of server interfaces, max. | 2 |
| OPC UA / Runtime license required / OPC UA Server / Number of nodes for user-defined server interfaces, max. | 2 000 |
| OPC UA / Further protocols / MODBUS | Yes |
| S7 communication / supported | Yes |
| S7 communication / as server | Yes |
| S7 communication / as client | Yes |
| S7 communication / User data per job, max. | See online help (S7 communication, user data size) |
| Number of connections / overall | PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 68 max |
| Status/control / Status/control variable | Yes |
| Status/control / Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Forcing / Forcing | Yes |
| Diagnostic buffer / present | Yes |
| Traces / Number of configurable Traces | 2 |
| Traces / Memory size per trace, max. | 512 kbyte |
| Diagnostics indication LED / RUN/STOP LED | Yes |
| Diagnostics indication LED / ERROR LED | Yes |
| Diagnostics indication LED / MAINT LED | Yes |
| Counter / Number of counters | 6 |
| Counter / Counting frequency, max. | 100 kHz |
| Integrated Functions / Frequency measurement | Yes |
| Integrated Functions / controlled positioning | Yes |
| Integrated Functions / Number of position-controlled positioning axes, max. | 8 |
| Integrated Functions / Number of positioning axes via pulse-direction interface | 4; With integrated outputs |
| Integrated Functions / PID controller | Yes |
| Integrated Functions / Number of alarm inputs | 4 |
| Integrated Functions / Number of pulse outputs | 4 |
| Integrated Functions / Limit frequency (pulse) | 100 kHz |
| Potential separation digital inputs / Potential separation digital inputs | No |
| Potential separation digital inputs / between the channels, in groups of | 1 |
| Potential separation digital outputs / Potential separation digital outputs | Yes |
| Potential separation digital outputs / between the channels | No |
| Potential separation digital outputs / between the channels, in groups of | 1 |
| Interference immunity against discharge of static electricity / Interference immunity against discharge of static | Yes |
| Interference immunity against discharge of static electricity / electricity acc. to IEC 61000-4-2 / Test voltage at air discharge | 8 kV |
| Interference immunity against discharge of static electricity / electricity acc. to IEC 61000-4-2 / Test voltage at contact discharge | 6 kV |
| Interference immunity to cable-borne interference / Interference immunity on supply lines acc. to IEC 61000- 4-4 | Yes |
| Interference immunity to cable-borne interference / Interference immunity on signal cables acc. to IEC 61000- 4-4 | Yes |
| Interference immunity against voltage surge / Interference immunity on supply lines acc. to IEC 61000- 4-5 | Yes |
| Interference immunity against conducted variable disturbance induced by high-frequency fields / Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes |
| Emission of radio interference acc. to EN 55 011 / Limit class A, for use in industrial areas | Yes; Group 1 |
| Emission of radio interference acc. to EN 55 011 / Limit class B, for use in residential areas | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 |
| IP degree of protection | IP20 |
| Standards, approvals, certificates / Siemens Eco Profile (SEP) | Siemens EcoTech |
| Standards, approvals, certificates / CE mark | Yes |
| Standards, approvals, certificates / UL approval | Yes |
| Standards, approvals, certificates / cULus | Yes |
| Standards, approvals, certificates / FM approval | Yes |
| Standards, approvals, certificates / RCM (formerly C-TICK) | Yes |
| Standards, approvals, certificates / KC approval | Yes |
| Standards, approvals, certificates / Marine approval | Yes |
| Ecological footprint / environmental product declaration | Yes; type II acc. to ISO 14021 |
| Ecological footprint / Global warming potential / global warming potential, (total) [CO2 eq] | 111 kg |
| Ecological footprint / Global warming potential / global warming potential, (during production) [CO2 eq] | 20.1 kg |
| Ecological footprint / Global warming potential / global warming potential, (during operation) [CO2 eq] | 91.5 kg |
| Ecological footprint / Global warming potential / global warming potential, (after end of life cycle) [CO2 eq] | -0.9 kg |
| Free fall / Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation / min. | -20 °C |
| Ambient temperature during operation / max. | 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical |
| Ambient temperature during operation / horizontal installation, min. | -20 °C |
| Ambient temperature during operation / horizontal installation, max. | 60 °C |
| Ambient temperature during operation / vertical installation, min. | -20 °C |
| Ambient temperature during operation / vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation / min. | -40 °C |
| Ambient temperature during storage/transportation / max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 / Operation, min. | 795 hPa |
| Air pressure acc. to IEC 60068-2-13 / Operation, max. | 1 080 hPa |
| Air pressure acc. to IEC 60068-2-13 / Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 / Storage/transport, max. | 1 080 hPa |
| Altitude during operation relating to sea level / Installation altitude, min. | -1 000 m |
| Altitude during operation relating to sea level / Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Relative humidity / Operation, max. | 95 %; no condensation |
| Vibrations / Vibration resistance during operation acc. to IEC 60068- 2-6 | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail |
| Vibrations / Operation, tested according to IEC 60068-2-6 | Yes |
| Shock testing / tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations / SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| Programming / Programming language / LAD | Yes |
| Programming / Programming language / FBD | Yes |
| Programming / Programming language / SCL | Yes |
| Know-how protection / User program protection/password protection | Yes |
| Know-how protection / Copy protection | Yes |
| Know-how protection / Block protection | Yes |
| Access protection / protection of confidential configuration data | Yes |
| Access protection / Protection level: Write protection | Yes |
| Access protection / Protection level: Read/write protection | Yes |
| Access protection / Protection level: Complete protection | Yes |
| Access protection / User administration | Yes; device-wide |
| Access protection / Number of users | 42 |
| Access protection / Number of groups | 14 |
| Access protection / Number of roles | 20 |
| Cycle time monitoring / can be set | Yes |
| Width | 110 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 415 g |
Description
The Siemens 6ES7214-1AG40-0XB0 is the S7-1200 CPU 1214C DC/DC/DC. Siemens's data sheet gives 150 KB of work memory, 14 digital inputs and 10 digital outputs at 24 V DC and 2 analog inputs on board, six inputs usable for high-speed counting and four outputs for 100 kHz pulse trains, and a PROFINET interface that can act as IO controller, on a 20.4-28.8 V DC supply. SiePortal lists it as an active product.
Application: Compact PLC controller
Used with: S7-1200 signal boards and modules
What is the 6ES7214-1AG40-0XB0 used for?
It controls small machines on its own I/O, extended with S7-1200 signal modules where needed, and links to HMIs and drives over PROFINET.
Key features
- 150 KB integrated work memory
- On board: 14 DI and 10 DO at 24 V DC, 2 AI 0-10 V
- 6 inputs usable for high-speed counting; 4 outputs for 100 kHz pulse trains
- PROFINET interface, IO controller
- DC supply, DC inputs, DC (transistor) outputs
Documents and Resources
Product Questions
Is the 6ES7214-1AG40-0XB0 discontinued?
No. Its manufacturer lifecycle status is Active.
Can another Siemens SIMATIC S7-1200 part replace it?
Potential replacements must be checked against the required ratings, dimensions and connections. Sharing a family name does not establish interchangeability.
Do you ship worldwide?
Yes. TimControls ships worldwide. Parts usually ship within 3 to 7 working days of order confirmation, and the exact lead time and shipping options are stated on your quote. Include your delivery country and postal code when you ask for a quote.
Latest news
TimControls is an independent distributor. Manufacturer names and logos are the property of their respective owners and identify products we source; they do not imply manufacturer authorization or affiliation.
