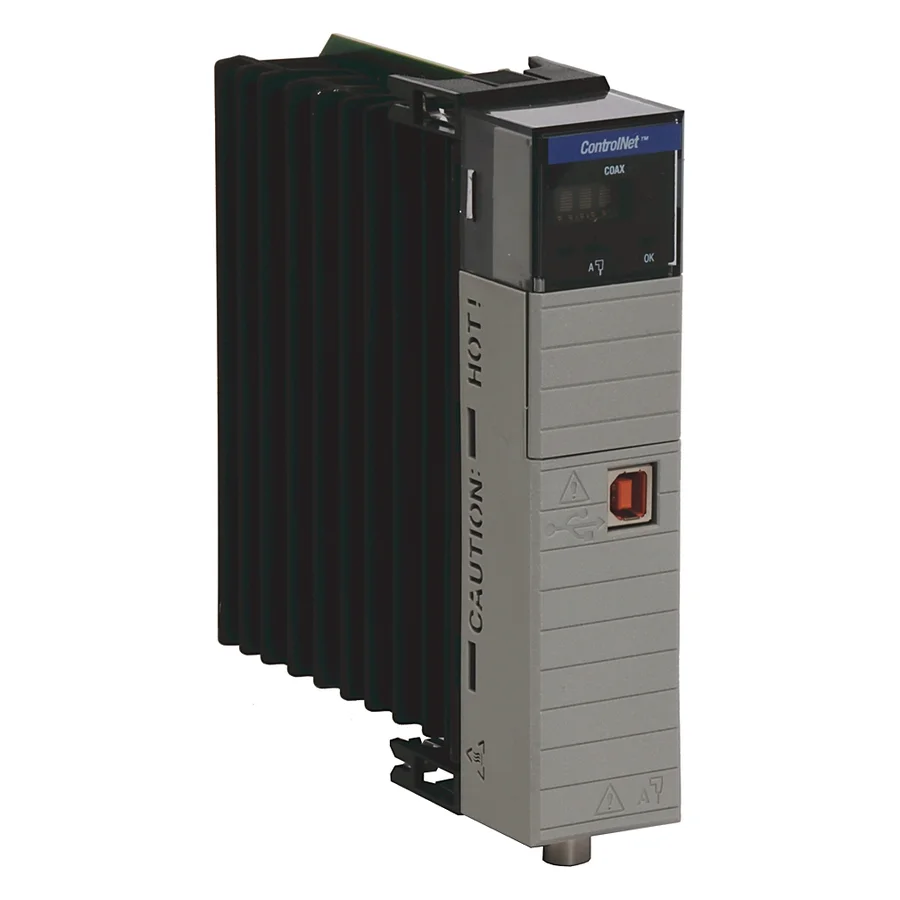

Image is for illustrative purposes only. Please refer to product description.
- Manufacturer
- Allen-Bradley
- Manufacturer part number
- 1756-CN2
- Product family
- ControlLogix Communication Modules (1756)
- Technical datasheet
- Data sheet
Specifications
| Attribute | Value |
|---|---|
| Type | ControlNet communication module |
| Manufacturer lifecycle | Active |
| Communication | ControlNet |
| Interface | 1 ControlNet BNC |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Connections supported, max | 131 maximum |
| ControlNet cable | 1786-RG6 quad shield RG6 coaxial cable |
| ControlNet port | 1 ControlNet BNC |
| Current draw | 1100mA @ 5.1V DC, 3mA @ 24V DC |
| EFT/B immunity | ±3kV @ 5kHz on ControlNet ports |
| Emissions | CISPR 11: Class A |
| Enclosure type rating | None (open-style) |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Isolation voltage | Standard: 30V (continuous), basic insulation type, ControlNet network to, backplane, Redundant: 30V (continuous), basic insulation type, ControlNet A/B to, backplane, and ControlNet A to ControlNet B, USB to backplane and USB to ControlNet, No isolation b |
| Logix communication connections | 128 |
Show all 32 specificationsShow fewer specifications
| Module location | Chassis based, any slot |
|---|---|
| Number of nodes, max | 99 nodes |
| Operating temperature | 0 to 60 °C |
| Power dissipation | 5.6 W |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| Relative humidity | 5...95% noncondensing |
| Shock | Operating: 30 G, Nonoperating: 30 G |
| Slot width | 1 |
| Storage temperature | -40 to 85 °C |
| Supporting protocol for other bus systems | Yes |
| Surge transient immunity | ±2 kV line-earth (CM) on ControlNet ports |
| Surrounding air temperature, max | 60 °C |
| Thermal dissipation | 19.1 btu/h |
| Transmission rate | 5000 kbps |
| Vibration | 2 G @ 10...500 Hz |
| Weight, approx | 0.26 kg |
| Wiring category | 1 - on ControlNet ports, 3 - on USB ports |
Description
The Allen-Bradley 1756-CN2 is a ControlLogix Communication Module, described by Rockwell Automation as a ControlNet Interface Module (100 connections). Rockwell's product data gives a ControlNet transmission rate of 5000 kbps, one ControlNet BNC port, a maximum of 99 nodes and a maximum of 131 connections. It is chassis based, fits any slot, is one slot wide and has an open-style enclosure with no enclosure type rating. Rockwell lists its lifecycle status as Active Mature, with a current draw of 1100mA @ 5.1V DC and 3mA @ 24V DC.
Application: Communication module
Used with: ControlLogix 1756 chassis
What is the 1756-CN2 used for?
The 1756-CN2 gives a ControlLogix chassis an interface to a ControlNet network. Rockwell specifies 1786-RG6 quad shield RG6 coaxial cable for the ControlNet connection, and lists 128 Logix communication connections. It is used in chassis-based control systems where devices communicate over ControlNet.
Key features
- One ControlNet BNC interface at 5000 kbps
- Up to 99 nodes and 131 connections maximum
- Chassis based, any slot, one slot wide
- Operates 0 to 60 °C, 5 to 95% noncondensing humidity
- Open-style enclosure, approx. 0.26 kg
