1756-EN2TPXT

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1756-EN2TPXT

Type

Communication module

Application

Communication module

Used with

ControlLogix 1756 chassis

EtherNet/IP communication rate

10/100 Mbps

Logix communication connections

256

TCP communication connections

128

Current draw @ 5.1V DC

1 A

Power dissipation

5.1 W

Thermal dissipation

17.4 BTU/hr

Isolation voltage

30V (continuous), Basic Insulation Type, Ethernet to Backplane, USB to Backplane, and USB to Ethernet, Compliant and tested according to IEC/UL 61010-1

Slot width

1

Module location

Chassis-based, any slot

Chassis

1756-A7XT/C, 1756-A10XT/C, 1756-A7ZXT, 1756-A10ZXT

Ethernet port

2 Ethernet RJ45 Category 5

Ethernet cable

802.3 compliant shielded or unshielded twisted-pair

USB port

USB full speed (12 Mbps)

Wiring category

2 - on Ethernet ports 3 - on USB ports

Temperature code

T4

Enclosure type rating

None (open-style)

Temperature, operating

-25 ≤Ta ≤ +70 °C (-13 ≤ Ta ≤ +158 °F) -25 ≤Ta ≤ +70 °C (-13 ≤ Ta ≤ +158 °F)

Temperature, nonoperating

-40…85 °C (-40…185 °F)

Relative humidity

5…95% noncondensing

Conformal Coated

Yes

Vibration

2 g @ 10…500 Hz

Shock, operating

30 g

Emissions

Class A

ESD immunity

6 kV contact discharges 8 kV air discharges

Radiated RF immunity

10V/m with 1 kHz sine wave 80% AM from 80…2000 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz 3V/m with 1 kHz sine wave 80% AM from 2000…6000 MHz

Technical documents (1)

• Rockwell Automation technical data 1756-TD003

Key features

• Two RJ45 Ethernet ports (Category 5)
• USB port, full speed (12 Mbps)
• Operating temperature -25 to +70 °C
• Current draw 1 A
• Fits any slot of a 1756 chassis

About the Allen-Bradley 1756-EN2TPXT

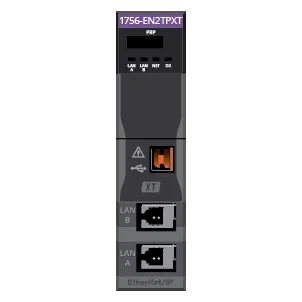

The Allen-Bradley 1756-EN2TPXT is a ControlLogix EtherNet/IP communication module. Rockwell's own summary: EtherNet/IP communication module, PRP dual port, 10/100M twisted pair, 128 TCP connections, extreme environment. Rockwell's technical data gives 10/100 Mbps on two RJ45 Ethernet ports (Category 5), 128 TCP and 256 Logix communication connections, and a current draw of 1 A. Rockwell Automation lists it as Active.

What is the 1756-EN2TPXT used for?

The 1756-EN2TPXT connects a ControlLogix chassis to EtherNet/IP, for I/O, messaging, and links to other controllers and HMIs. PRP sends each message over two independent networks, so the link survives the loss of one.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1756-EN2TPXT on the module's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
