1763-L16AWA

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1763-L16AWA

Type

MicroLogix controller

Application

PLC controller

Used with

MicroLogix system

Communication

DF1, DH-485, Modbus RTU, ASCII, EtherNet/IP messaging

Controller

MicroLogix 1100, 120/240V ac

Embedded Analog

(2) Analog Voltage I/P

Input Signal

120 V AC

Interface

Ethernet Port and Isolated

Memory

8 KB

Number Of Channels

10 I/P, 6 O/P

Output Signal

Relay

Power Supply

120/240V AC

Technical documents (1)

• Rockwell Automation product page 1763-L16AWA

Key features

• 10 120V AC inputs
• 6 relay outputs
• 120/240V AC power supply
• Embedded analog: 2 analog voltage inputs
• Ethernet port and isolated port

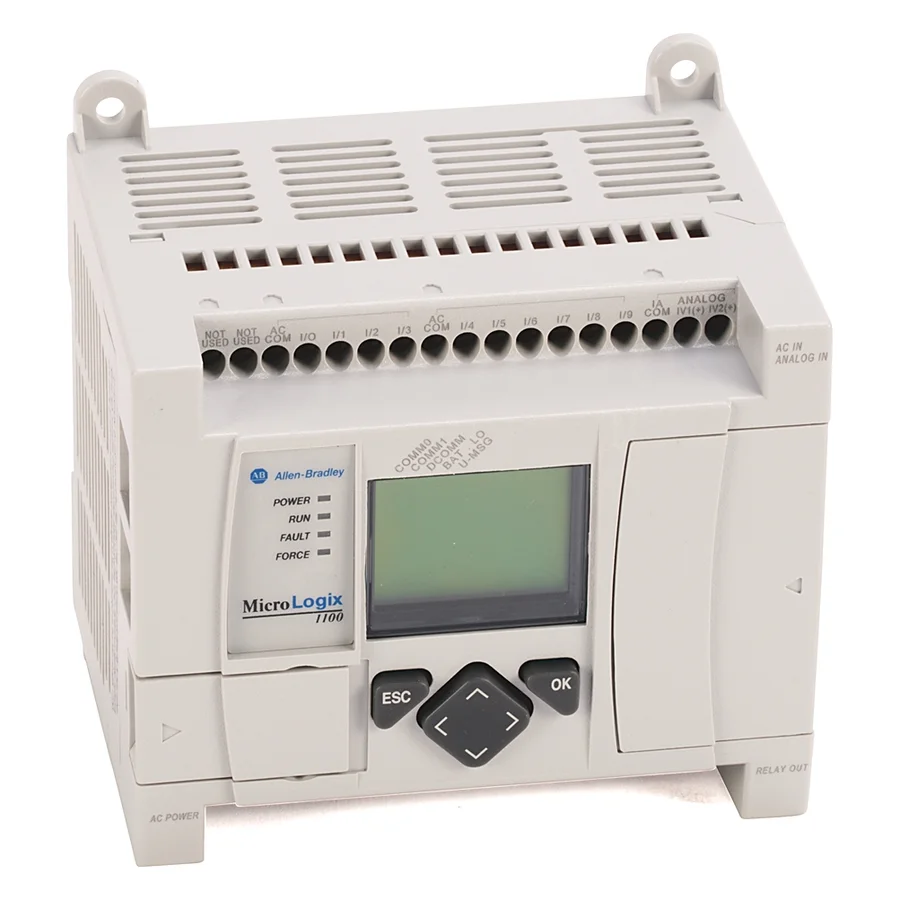

About the Allen-Bradley 1763-L16AWA

The Allen-Bradley 1763-L16AWA is a MicroLogix 1100 controller with the processor, 16 I/O points and power supply in one unit. Rockwell's product page gives it 10 inputs at 120V AC, 6 relay outputs, a 120/240V AC supply and 8 KB of memory, with 2 analog voltage inputs built in. It has an Ethernet port and an isolated port and communicates using DF1, DH-485, Modbus RTU, ASCII and EtherNet/IP messaging. Rockwell Automation lists it as discontinued.

What is the 1763-L16AWA used for?

The 1763-L16AWA controls a small machine or piece of equipment on its own, reading its 10 inputs and switching its 6 outputs. The letters after the point count give the input, output and supply types, so another 16-point MicroLogix 1100 is not necessarily the same unit.

Lifecycle and successor

Discontinued.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1763-L16AWA on the controller's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
