1769-L30ERM

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1769-L30ERM

Type

CompactLogix controller

Application

PLC controller

Used with

1769 Compact I/O

Controller tasks

32 tasks 100 programs/task

Communication

EtherNet/IP, DeviceNet via 1769-SDN scanner

Sockets, max

32

Integrated Motion

As many as 4 axes

Programming

Relay ladder, Structured Text, Function block, SFC

Temperature, operating

0…60 °C (32…140 °F)

Temperature, storage

-40…+85 °C (-40…+185 °F)

Temperature, surrounding air

60 °C (140 °F)

Relative humidity

5…95% noncondensing

Vibration

5 g @ 10…500 Hz

Shock, operating

20 g - DIN rail 30 g - Panel

Shock, nonoperating

30 g - DIN rail 40 g - Panel

Emissions

IEC 61000-6-4

ESD immunity

6 kV contact discharges 8 kV air discharges

Radiated RF immunity

10V/m with 1 kHz sine wave 80% AM from 80…6000 MHz

EFT/B immunity

±3 kV at 5 kHz on communication ports

Surge transient immunity

±2 kV line-earth (CM) on communication ports

Conducted RF immunity

10V rms with 1 kHz sine wave 80% AM from 150 kHz…80 MHz

User memory

1 MB

Optional nonvolatile

1784-SD1 card with 1 Gb of available memory (shipped with controller) 1784-SD2 card with 2 Gb of available memory (available for separate ordering)

Number of I/O module

3

Current draw @ 5V DC

500 mA

Current draw @ 24V

225 mA

Power dissipation

4.5 W

Isolation voltage

30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and, Ethernet to Ethernet, Type tested at 500V AC for 60 s

Technical documents (1)

• Rockwell Automation technical data 1769-TD005

Key features

• 32 tasks, 100 programs per task
• Relay ladder, structured text, function block and SFC programming
• DeviceNet through a 1769-SDN scanner
• DIN rail or panel mounting
• Weight about 0.31 kg (0.68 lb)

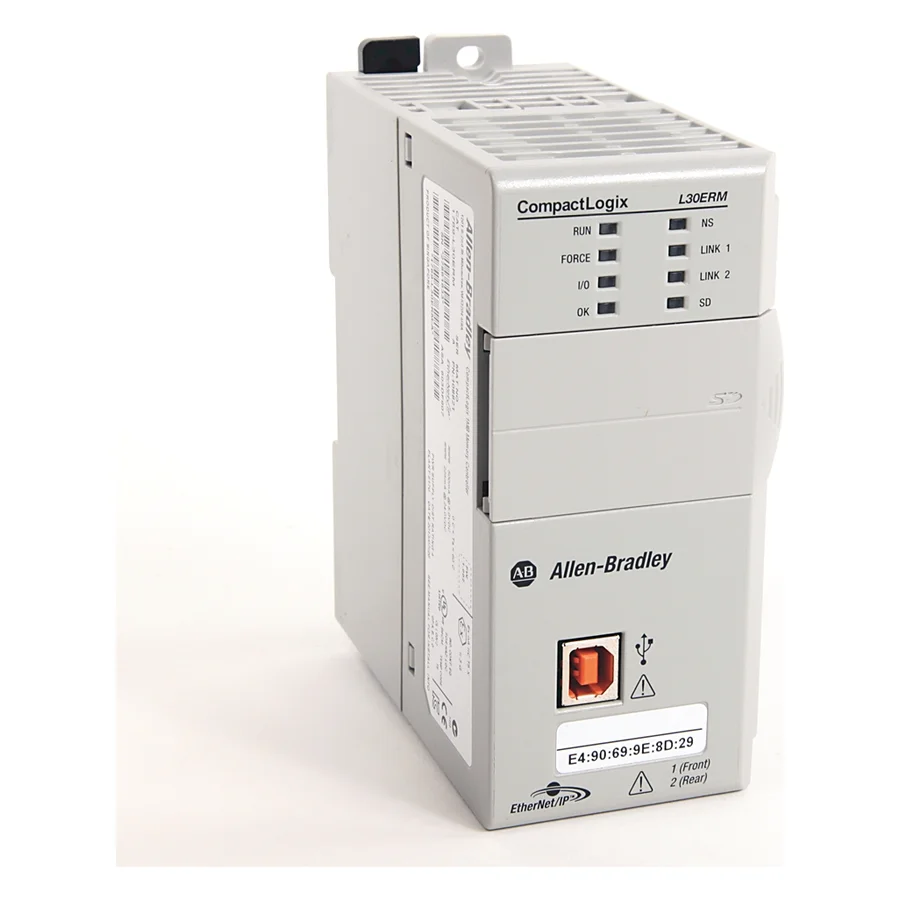

About the Allen-Bradley 1769-L30ERM

The Allen-Bradley 1769-L30ERM is a CompactLogix motion controller for 1769 Compact I/O. Rockwell's technical data gives it 1 MB of user memory and up to 4 axes of integrated motion. Rockwell Automation lists it as Active Mature.

What is the 1769-L30ERM used for?

The 1769-L30ERM runs the control program on a machine or line, working with 1769 Compact I/O and devices on EtherNet/IP. It also controls motion axes over EtherNet/IP.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1769-L30ERM on the controller's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
