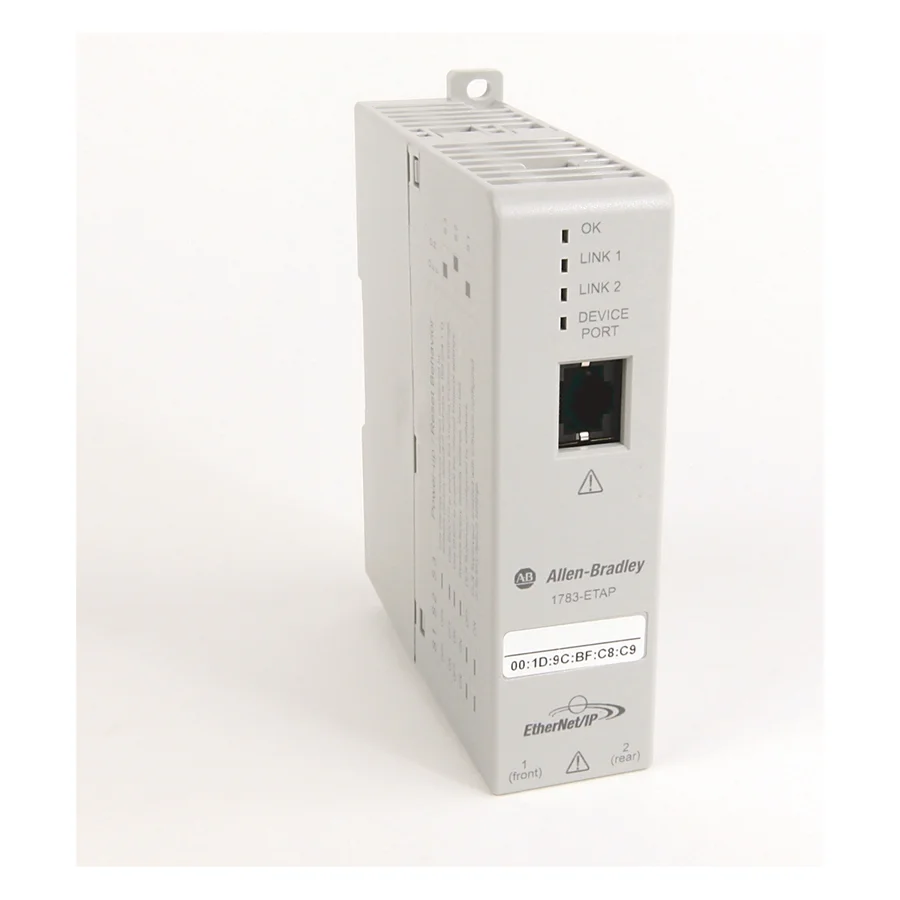

Allen-Bradley 1783-ETAP

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1783-ETAP

Type

EtherNet/IP tap

Application

Industrial Ethernet network

Used with

EtherNet/IP networks

Description

EtherNet/IP tap 3 copper ports

Tap type

Copper

Current consumption, max

125 mA @ 24V DC

DC power supply voltage rating

24V DC (20.4…27.6V DC) CL 2/SELV

Isolation voltage

30V (continuous), basic insulation type, network channels to power and network channels to network channels

Power consumption, max

3 W

Wire size, Ethernet connection

RJ45 connector according to IEC 60603-7, 2- or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702

Wire size, DC power connection

One 0.33…3.3 mm2 (22…12 AWG) or two 0.33…1.3 mm2 (22…16 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max

Screw torque, power terminal

0.6…0.8 Nm (5…7 inlb)

Wiring category

1 - on power ports 2 - on communication ports

Enclosure type rating

None (open-style)

North American temp code

T5

Temperature, operating

-25…+70 °C (-13…+158 °F)

Temperature, surrounding air, max

70° C (158 °F)

Temperature, nonoperating

-40…+85 °C (-40…+185 °F)

Relative humidity

5…95% noncondensing

Vibration

5 g @ 10…500 Hz

Shock, operating

30 g

Shock, nonoperating

50 g

Emissions

Class A

ESD immunity

6 kV contact discharges 8 kV air discharges

EFT/B immunity

±4 kV at 5 kHz on power ports ±3 kV at 5 kHz on communication ports

Surge transient immunity

±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports ±2 kV line-earth (CM) on communication ports

Conducted RF immunity

10V rms with 1 kHz sine wave 80% AM from 150 kHz…80 MHz

Voltage variation

10 ms interruption on DC supply ports

Technical documents (1)

• Rockwell Automation technical data 1783-TD002

Key features

• Three copper EtherNet/IP ports with RJ45 connectors
• 24V DC supply, 20.4 to 27.6V DC range
• Maximum current consumption of 125 mA at 24V DC
• Operating temperature range of -25 to +70 °C
• Vibration rating of 5 g at 10 to 500 Hz

About the Allen-Bradley 1783-ETAP

The 1783-ETAP is an EtherNet/IP tap with 3 copper ports, now discontinued. It runs from 24V DC (20.4 to 27.6V DC) CL 2/SELV, drawing up to 125 mA at 24V DC and 3 W. It works from -25 to +70 °C in an open-style housing. The 1783-ETAP3T is named by the maker as the successor (Functional Replacement).

What is the 1783-ETAP used for?

It connects a device to a copper EtherNet/IP network, over RJ45 connectors with 2- or 4-pair Category 5e minimum cable. The DC power terminal takes one 0.33 to 3.3 mm2 wire, at a screw torque of 0.6 to 0.8 Nm.

Lifecycle and successor

Discontinued (Rockwell Automation lifecycle status, checked 24 October 2026).

OEM successor: 1783-ETAP3T
