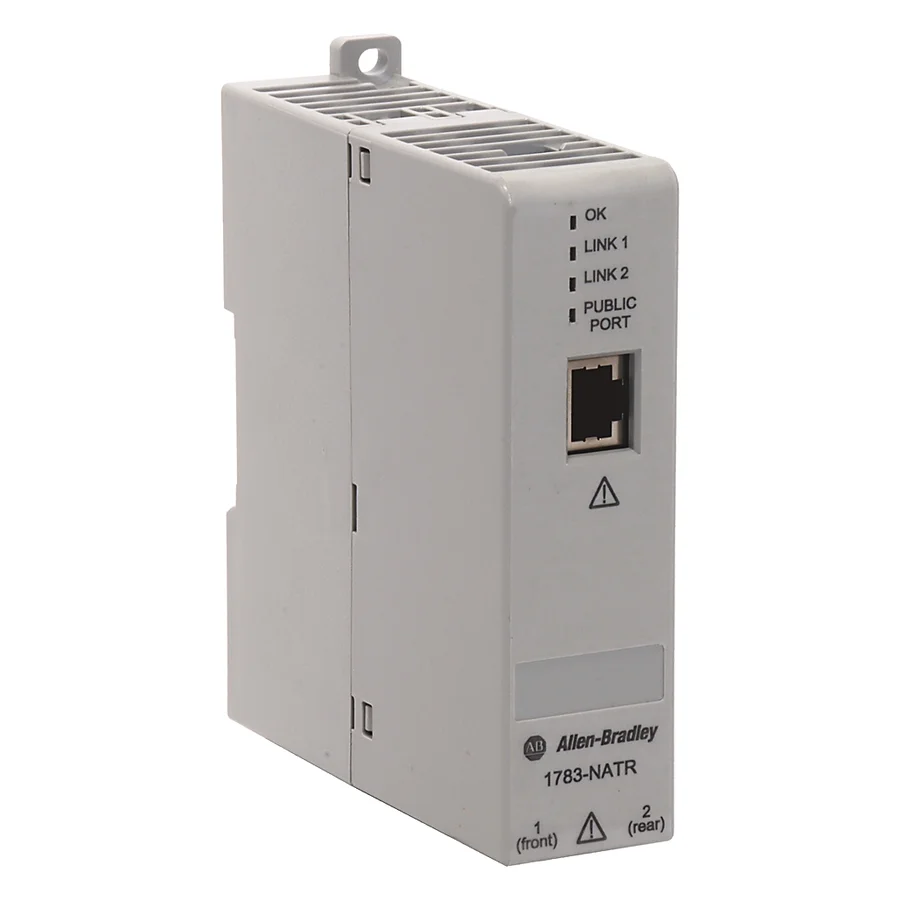

Allen-Bradley 1783-NATR

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1783-NATR

Type

Network address translation device

Application

Industrial Ethernet network

Used with

EtherNet/IP networks

Enclosure type rating

None (open-style)

Voltage and current ratings

DC power supply input: 20.4…27.6V DC/limited voltage, Current rating: 150 mA

Power consumption, max

3 W

Isolation voltage

Functional insulation type (IEC-61010-2-201), Ethernet Ports to Power ports

Wire size, power connection

Single wire: 0.33…3.3 mm² (22…12 AWG) stranded copper wire rated at 75 °C (167 °F), or greater, 1.2 mm (3/64 in.) insulation max, Double wire: 0.33…1.3 mm² (22…16 AWG) solid copper wire rated at 75 °C (167 °F), or greater, 1.2 mm (3/64 in.) insulation max

Wiring category

2 - on power ports 2 - on Ethernet ports

North American temp code

T4

Temperature, operating

-25…+70 °C (-13…+158 °F)

Temperature, surrounding air, max

70 °C (158 °F)

Temperature, nonoperating

-40…+85 °C (-40…+185 °F)

Relative humidity

5…95% noncondensing

Vibration

5 g @ 10…500 Hz

Shock, operating

30 g

Shock, nonoperating

50 g

Emissions

IEC 61000-6-4

ESD immunity

6 kV contact discharges 8 kV air discharges

EFT/B immunity

±2 kV at 5 kHz on power ports ±2 kV at 5 kHz on Ethernet ports

Surge transient immunity

±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports ±2 kV line-earth (CM) on Ethernet ports

Conducted RF immunity

10V rms with 1 kHz sine wave 80% AM from 150 kHz…80 MHz

Technical documents (1)

• Rockwell Automation technical data 1783-TD002

Key features

• Configurable NAT router
• DC power supply input of 20.4…27.6V DC, 150 mA
• Operating temperature range of -25…+70 °C
• Vibration rating of 5 g at 10…500 Hz
• Open-style enclosure type with no enclosure rating

About the Allen-Bradley 1783-NATR

The 1783-NATR is a configurable NAT router. Its DC supply input is 20.4…27.6V DC, limited voltage, at 150 mA, and it consumes up to 3 W. It works from -25…+70 °C in an open-style housing, and is rated for 5 g vibration at 10…500 Hz and 30 g operating shock.

What is the 1783-NATR used for?

It translates network addresses between two Ethernet networks, such as a machine network and the plant network. Insulation between the Ethernet ports and the power ports is functional. Emissions meet IEC 61000-6-4, with ESD, EFT/B, surge and conducted RF immunity ratings.
