5069-L330ER

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

5069-L330ER

Type

CompactLogix 5380 controller

Application

PLC controller

Used with

5069 Compact 5000 I/O

Communication

EtherNet/IP, USB

Depth

136.81mm, 5.39"

Height

123mm, 4.84"

Interface

2 x 1 Gb EtherNet port

Isolation

300V(cont)

Memory

3MB

Power Supply

MOD Power 18…32V DC SA Power

Processor

Quad Core

Technical documents (1)

• Rockwell Automation technical data 5069-TD002

Key features

• Two 1 Gb Ethernet ports
• Quad-core processor
• MOD Power input 18…32V DC
• EtherNet/IP and USB communication
• 300V continuous isolation

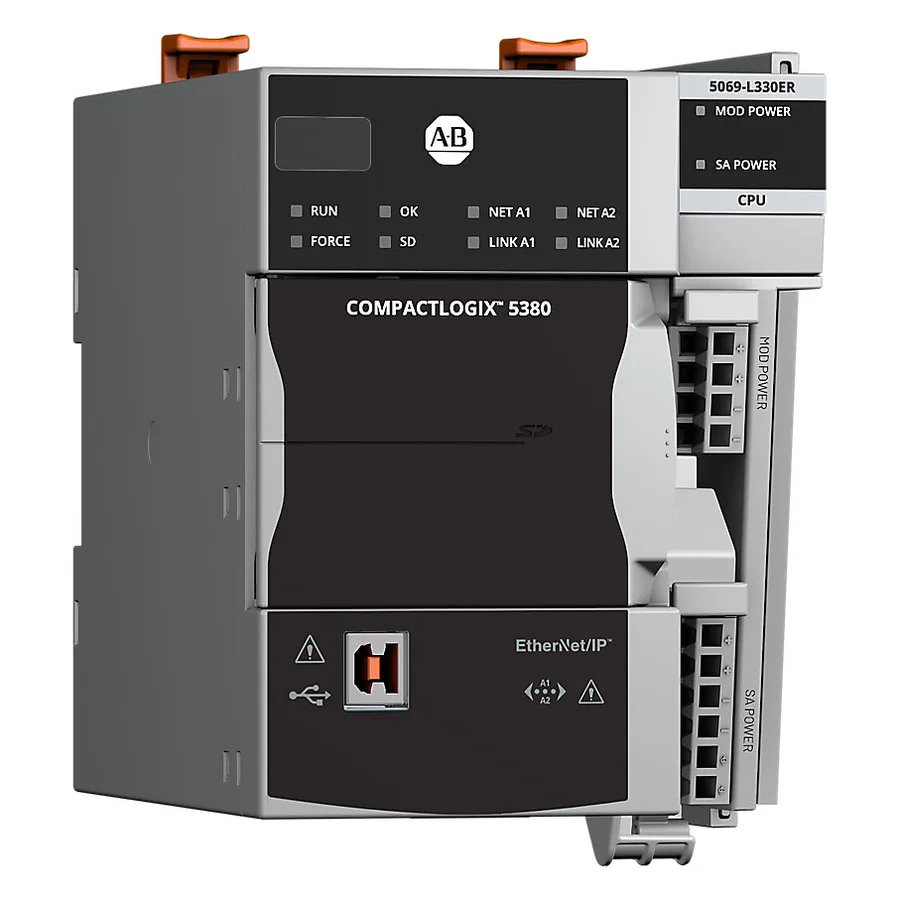

About the Allen-Bradley 5069-L330ER

The Allen-Bradley 5069-L330ER is a CompactLogix controller for 5069 local I/O. Rockwell's product page gives it 3 MB of user memory, two 1 Gb Ethernet ports and a quad-core processor. Its MOD Power input is rated 18…32V DC. Rockwell Automation lists it as Active.

What is the 5069-L330ER used for?

The 5069-L330ER runs the control program in a CompactLogix system, working with local 5069 I/O modules and with devices on EtherNet/IP. Rockwell lists it without integrated motion.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 5069-L330ER on the controller's label, with the series letter and firmware revision. Send us a photo of the label and we will confirm the details before quoting.
