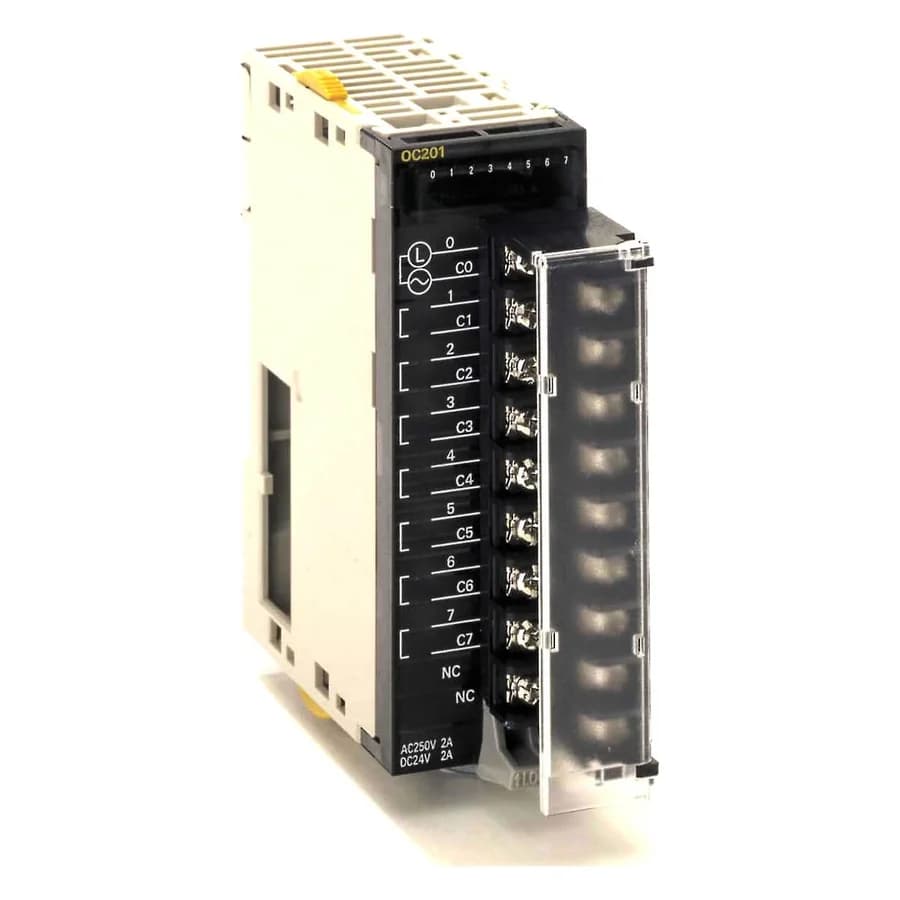

Omron CJ1W-OC201

Technical specifications

Manufacturer

Omron

Manufacturer part no.

CJ1W-OC201

Type

Digital output module

Application

I/O module

Used with

CJ-series CPUs (CJ1, CJ2)

I/O system

CJ I/O Bus

Expansion unit type

Basic I/O Unit

Type of module

Digital I/O

OFF/ON delay

0-15 ms

Number of digital outputs

8

Digital output type

Relay NO

Permitted voltage at output

5-24 V

Output current

2 A

I/O connection type

Screw

Number of I/O connectors

1

Height

90 mm

Width

31 mm

Depth

89 mm

Weight

88 g

Technical documents (1)

• Omron product page CJ1W-OC201

Key features

• OFF/ON delay: 0-15 ms
• Number of I/O connectors: 1
• Expansion unit type: Basic I/O Unit
• Size 90 mm high, 31 mm wide, 89 mm deep

About the Omron CJ1W-OC201

The Omron CJ1W-OC201 is a CJ1W digital output unit. Omron describes it as: Digital output unit, 8 x relay outputs, 250 VAC/24 VDC, 2 A max, independent commons, screw terminal. Its specification table gives 8 digital outputs, relay NO outputs and 2 A output current. Omron's European product page carries no end-of-production notice for it.

What is the CJ1W-OC201 used for?

The CJ1W-OC201 mounts on the CJ I/O bus beside a CJ-series CPU, which reads and writes its digital output signals each cycle.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number CJ1W-OC201 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
