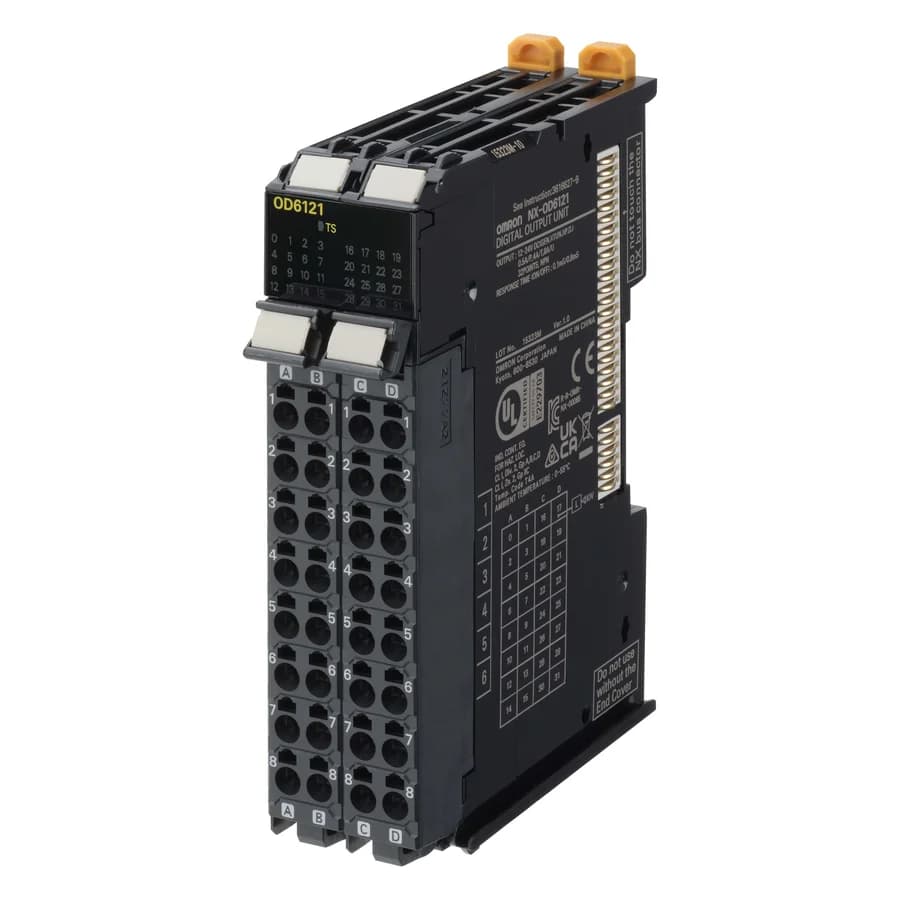

Omron NX-OD6121

Technical specifications

Manufacturer

Omron

Manufacturer part no.

NX-OD6121

Type

Digital output module

Application

I/O module

Used with

NX-series controllers and NX bus couplers

I/O system

NX I/O Bus

Type of module

Digital I/O

OFF/ON delay

0.1-0.8 ms

Number of digital outputs

32

Digital output type

NPN

Permitted voltage at output

10.2-28.8 V

Output current

0.5 A

Signal processing

Free running, Standard speed, Synchronous

I/O connection type

Push-in

Number of I/O connectors

1

Degree of protection (IP)

IP20

Weight

130 g

Technical documents (1)

• Omron product page NX-OD6121

Key features

• Signal processing: Free running, Standard speed, Synchronous
• OFF/ON delay: 0.1-0.8 ms
• Degree of protection (IP): IP20
• Number of I/O connectors: 1

About the Omron NX-OD6121

The Omron NX-OD6121 is an NX digital output unit. Omron describes it as: 32 Digital Outputs, Standard speed, NPN 12~24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 24 mm wide. Its specification table gives 32 digital outputs, NPN outputs and 0.5 A output current. Omron's European product page carries no end-of-production notice for it.

What is the NX-OD6121 used for?

The NX-OD6121 slots onto the NX I/O bus next to an NX controller or bus coupler, carrying its digital output signals to and from the machine.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number NX-OD6121 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
