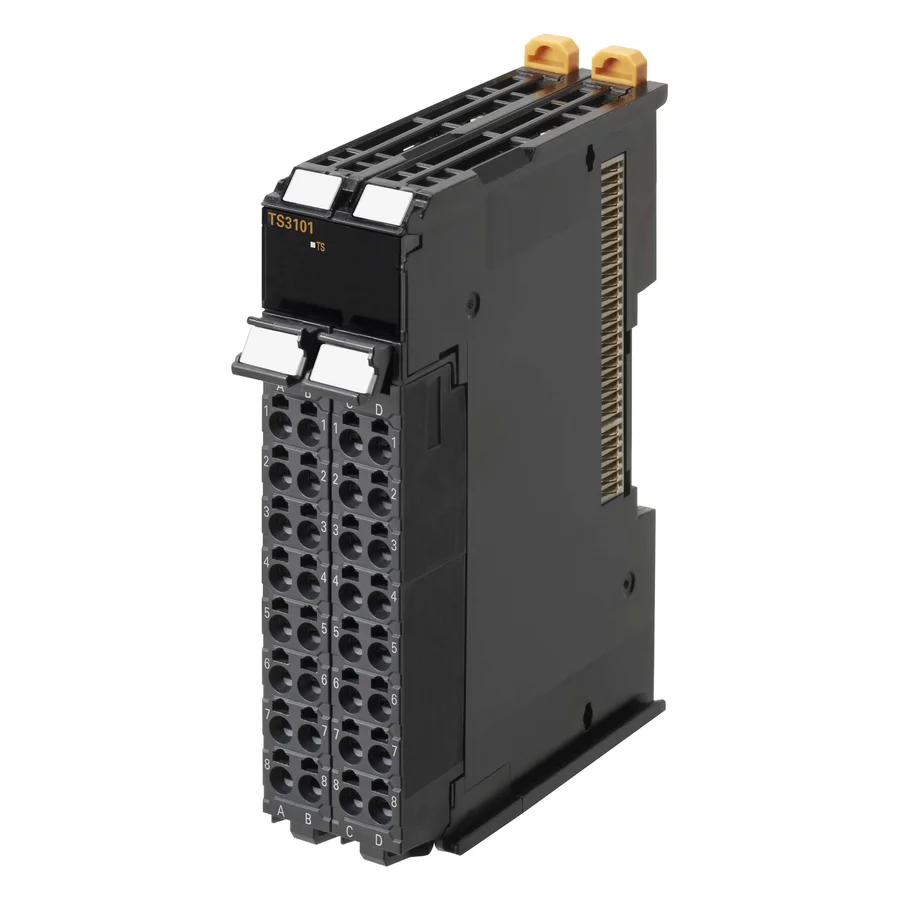

Omron NX-TS3101
NX Analogue Input Unit, 4 Thermocouple Inputs
Image is for illustrative purposes only. Please refer to product description.
Delivery options
Omron NX-TS3101 is an NX analogue input unit for the NX I/O Bus, 4 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C (W/Re5-26), P (PLII), resolution 0.1°C, 250 ms/Unit, screwless push-in connectors, 24 mm wide.
- Manufacturer
- Omron
- Manufacturer part no.
- NX-TS3101
- Product family
- Omron NX I/O Units
- Type
- Analog input module
- Category
- I/O modules › Analogue input and output modules
- Lifecycle
- Active
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- Omron
- Manufacturer part no.
- NX-TS3101
- Type
- Analog input module
- Application
- I/O module
- Used with
- NX-series controllers and NX bus couplers
- I/O system
- NX I/O Bus
- Type of module
- Analog I/O
- Number of analog inputs
- 4
- Temperature input type
- B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U
- Resolution of the analog inputs
- 14 Bit
- Input circuit type
- Differential
- Conversion time
- 250 ms/unit
- Signal processing
- Free running
- I/O connection type
- Push-in
- Number of I/O connectors
- 2
- Degree of protection (IP)
- IP20
- Height
- 100 mm
- Width
- 24 mm
- Depth
- 80 mm
- Weight
- 140 g
Technical documents (1)
Key features
- Signal processing: Free running
- Degree of protection (IP): IP20
- Number of I/O connectors: 2
- Size 100 mm high, 24 mm wide, 80 mm deep
About the Omron NX-TS3101
The Omron NX-TS3101 is an NX analogue input unit. Omron describes it as: 4 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C (W/Re5-26), P (PLII), resolution 0.1°C, 250 ms/Unit, screwless push-in connectors, 24 mm wide. Its specification table gives 4 analogue inputs, 14 Bit input resolution and push-in connection. Omron's European product page carries no end-of-production notice for it.
What is the NX-TS3101 used for?
The NX-TS3101 slots onto the NX I/O bus next to an NX controller or bus coupler, carrying its analogue input signals to and from the machine.
Lifecycle and successor
Active.
Before you order
What to photograph or confirm so the right unit is quoted.
Check the model number NX-TS3101 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
Alternatives for NX-TS3101
The manufacturer’s named successor and other parts in the same family. None is a drop-in replacement without checking wiring, I/O and configuration for your installation.
| Product | Manufacturer | Type | Lifecycle | Relationship | Qty Available | Price | Action |
|---|---|---|---|---|---|---|---|
| Omron NX-TC3407NX Temperature Control Unit, 4 loops | Omron | Temperature control module | Active | Same family | On Request | On request | View › |
| Omron NX-TC3408NX Temperature Control Unit, 4 loops | Omron | Temperature control module | Active | Same family | On Request | On request | View › |
| Omron NX-TS2101NX Analogue Input Unit, 2 Thermocouple Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS2102NX Analogue Input Unit, 2 Thermocouple Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS2104NX Analogue Input Unit, 2 Thermocouple Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS2201NX Analogue Input Unit, 2 Temperature Sensor Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS2202NX Analogue Input Unit, 2 Temperature Sensor Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS2204NX Analogue Input Unit, 2 Temperature Sensor Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS3102NX Analogue Input Unit, 4 Thermocouple Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS3104NX Analogue Input Unit, 4 Thermocouple Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS3201NX Analogue Input Unit, 4 Temperature Sensor Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
| Omron NX-TS3204NX Analogue Input Unit, 4 Temperature Sensor Inputs | Omron | Analog input module | Active | Same family | On Request | On request | View › |
