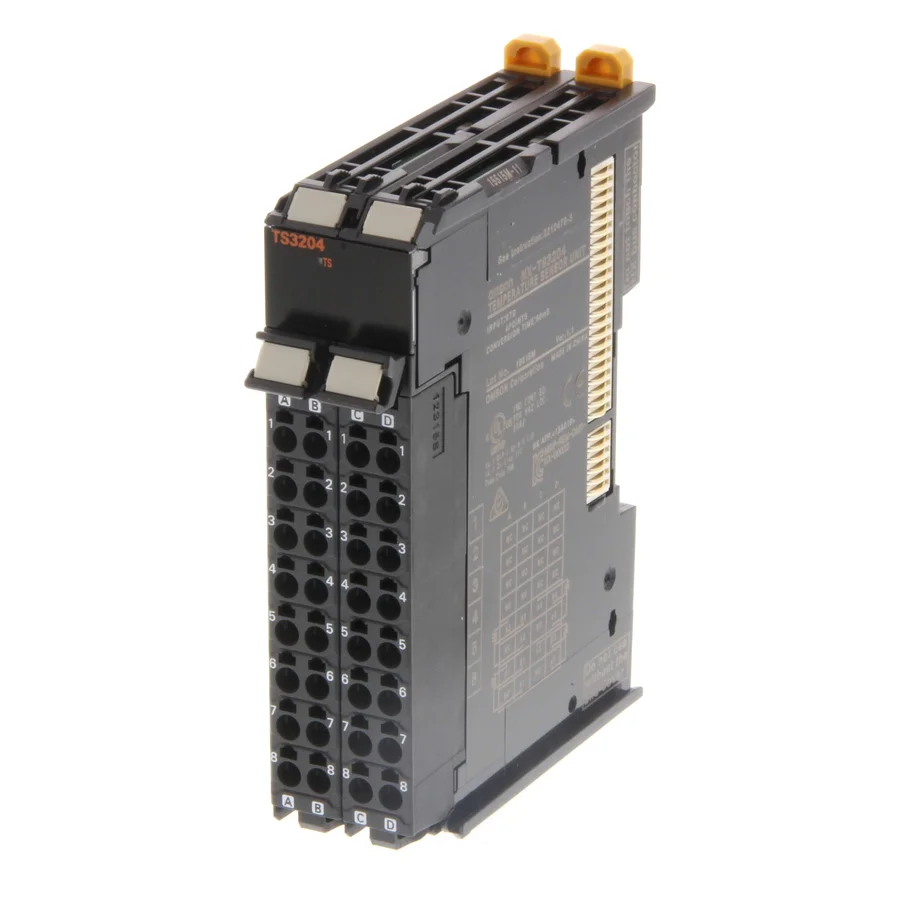

Omron NX-TS3204

Technical specifications

Manufacturer

Omron

Manufacturer part no.

NX-TS3204

Type

Analog input module

Application

I/O module

Used with

NX-series controllers and NX bus couplers

I/O system

NX I/O Bus

Type of module

Analog I/O

Number of analog inputs

4

Temperature input type

Pt100, Pt1000

Resolution of the analog inputs

20 Bit

Input circuit type

Single-ended

Conversion time

60 ms/unit

Signal processing

Free running

I/O connection type

Push-in

Number of I/O connectors

2

Degree of protection (IP)

IP20

Height

100 mm

Width

24 mm

Depth

80 mm

Weight

140 g

Technical documents (1)

• Omron product page NX-TS3204

Key features

• Signal processing: Free running
• Degree of protection (IP): IP20
• Number of I/O connectors: 2
• Size 100 mm high, 24 mm wide, 80 mm deep

About the Omron NX-TS3204

The Omron NX-TS3204 is an NX analogue input unit. Omron describes it as: 4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000 (3-wire) resolution 0.001°C, 60 ms/Unit, screwless push-in connectors, 24 mm wide. Its specification table gives 4 analogue inputs, 20 Bit input resolution and push-in connection. Omron's European product page carries no end-of-production notice for it.
