Siemens 6ES7223-1BL22-0XA0

EM 223 digital I/O, 16 DI / 16 DO, 24 V DC

Read from the product label

Maker: Siemens
Part no.: 6ES7223-1BL22-0XA0
Serial / rev.: as printed on your unit

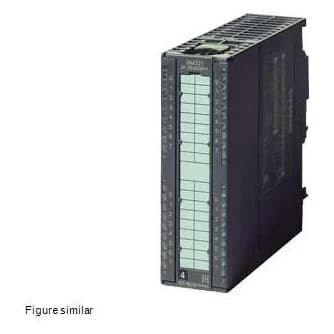

Image is for illustrative purposes only. Please refer to product description.

Delivery options

Siemens SIMATIC S7-200 EM 223 expansion module: 16 inputs at 24 V DC (sink/source) and 16 outputs at 24 V DC, 0.75 A each, for S7-22x CPUs.

Manufacturer: Siemens
Manufacturer part no.: 6ES7223-1BL22-0XA0
Product family: SIMATIC S7-200 Micro PLCs
Type: Digital I/O module
Category: PLCs and I/O › Digital I/O modules
Lifecycle: Discontinued
OEM successor: Not stated
Technical datasheet: Data sheet

Technical specifications

Manufacturer: Siemens
Manufacturer part no.: 6ES7223-1BL22-0XA0
Type: Digital I/O module
Application: Digital expansion module
Used with: SIMATIC S7-200 CPU 22x
Load voltage L+ / Rated value (DC): 24 V
Load voltage L+ / permissible range, lower limit (DC): 20.4 V
Load voltage L+ / permissible range, upper limit (DC): 28.8 V
Input current / from backplane bus 5 V DC, max.: 160 mA
Power loss, typ.: 6 W
Number of digital inputs: 16
Input voltage / Type of input voltage: DC
Input voltage / Rated value (DC): 24 V
Input voltage / for signal "0": 0 to 5 V
Input voltage / for signal "1": 15 V DC to 30 V DC
Input current / for signal "1", typ.: 4 mA
Input delay (for rated value of input voltage) / for standard inputs / at "0" to "1", max.: 4.5 ms
Number of digital outputs: 16
Digital outputs / Short-circuit protection: No
Digital outputs / Limitation of inductive shutdown voltage to: L+ (-48 V)
Output voltage / for signal "0", max.: 0.1 V
Output voltage / for signal "1", min.: 20 V
Output current / for signal "1" rated value: 750 mA
Total current of the outputs (per group) / all mounting positions / Current per conductor/group, max.: 3 A; 3 / 3 / 6
Relay outputs / Switching capacity of contacts / with inductive load, max.: 0.75 A; each output
Relay outputs / Switching capacity of contacts / on lamp load, max.: 5 W
Relay outputs / Switching capacity of contacts / with resistive load, max.: 0.75 A; each output
Cable length / shielded, max.: 500 m
Cable length / unshielded, max.: 150 m
Connectable encoders / 2-wire sensor: Yes

Show all 41 specifications

Connectable encoders / 2-wire sensor / permissible quiescent current (2-wire sensor), max.: 1 mA
Potential separation digital inputs / Potential separation digital inputs: Yes; Optocoupler
Potential separation digital inputs / between the channels, in groups of: 4
Potential separation digital outputs / Potential separation digital outputs: Yes; Optocoupler
Potential separation digital outputs / between the channels, in groups of: 4; 4 / 4 / 8
Isolation tested with: 500 V AC
Plug-in I/O terminals: Yes
Width: 137.5 mm
Height: 80 mm
Depth: 62 mm
Weight, approx.: 360 g

Technical documents (1)

Siemens data sheet 6ES7223-1BL22-0XA0

Key features

16 digital inputs, 24 V DC, sink or source
16 digital outputs, 24 V DC, 0.75 A each
Plug-in I/O terminals
Only for S7-22x CPUs
Cancelled by Siemens on 1 October 2017, discontinued on 1 November 2025; listed as a spare part

About the Siemens 6ES7223-1BL22-0XA0

The Siemens 6ES7223-1BL22-0XA0 is an S7-200 EM 223 with 16 inputs and 16 outputs, all at 24 V DC. Siemens's data sheet gives sink/source inputs, sourcing outputs at 0.75 A each, plug-in terminals and a 137.5 mm wide housing, for S7-22x CPUs only. SiePortal shows the product cancellation on 1 October 2017 and the product discontinued on 1 November 2025; Siemens still lists it as a spare part.
