TE Connectivity 1-1612773-4
DDR SO-DIMM socket (generation unresolved): 200 positions, Surface Mount, 6.5 mm [ .256 in ] stack height, Right Angle, Gold Flash, Semi-Hard Tray Assembly
Image is for illustrative purposes only. Please refer to product description.
Delivery options
What sets the 1-1612773-4 apart in the DDR2 and earlier DIMM and SO-DIMM sockets family: stack height 6.5 mm [ .256 in ], keying reverse Keying and DRAM type double Data Rate (DDR). The TE Connectivity 1-1612773-4 is a DDR SO-DIMM socket (generation unresolved). The individual manufacturer record specifies 200 positions, Surface Mount, 6.5 mm [ .256 in ] stack height, Right Angle, Gold Flash, Semi-Hard Tray Assembly. Check the exact drawing for PCB footprint, keying, contact layout and mechanical clearance.
- Manufacturer
- TE Connectivity
- Manufacturer part no.
- 1-1612773-4
- Product family
- DDR2, DDR and SDRAM DIMM and SO-DIMM Sockets
- Type
- DDR SO-DIMM socket (generation unresolved)
- Lifecycle
- Discontinued
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- TE Connectivity
- Manufacturer part no.
- 1-1612773-4
- Type
- DDR SO-DIMM socket (generation unresolved)
- Application
- Provides the board connection for a matching removable memory module in computing or embedded equipment. Position count, memory standard and mechanical key must match.
- Used with
- DDR SO-DIMM socket (generation unresolved); exact drawing match required
- DRAM type
- Double Data Rate (DDR)
- Stack height
- 6.5 mm [ .256 in ]
- Module orientation
- Right Angle
- Positions
- 200
- Pitch
- .6 mm [ .024 in ]
- Rows
- 2
- Keys
- 1
- DRAM voltage (V)
- 1.8
- Ejector location
- Both Ends
- Ejector type
- Locking
- Module key position
- SGRAM
- Latch material
- Stainless Steel
- PCB termination plating
- Gold Flash
- Contact material
- Copper Alloy
- Mating plating
- Gold Flash
- PCB termination
- Surface Mount
- Keying
- Reverse Keying
- PCB retention
- Solder Peg
- Housing color
- Black
- Housing material
- High Temperature Thermoplastic
- Row spacing
- 6.2 mm [ .244 in ]
- Packaging
- Semi-Hard Tray Assembly
Technical documents (1)
Key features
- Positions: 200
- PCB termination: Surface Mount
- Stack height: 6.5 mm [ .256 in ]
- Module orientation: Right Angle
- Mating plating: Gold Flash
- Packaging: Semi-Hard Tray Assembly
About the TE Connectivity 1-1612773-4
The TE Connectivity 1-1612773-4 is a DDR SO-DIMM socket (generation unresolved). The individual manufacturer record specifies 200 positions, Surface Mount, 6.5 mm [ .256 in ] stack height, Right Angle, Gold Flash, Semi-Hard Tray Assembly. Check the exact drawing for PCB footprint, keying, contact layout and mechanical clearance.
What is the 1-1612773-4 used for?
Provides the board connection for a matching removable memory module in computing or embedded equipment. Position count, memory standard and mechanical key must match.
Lifecycle and successor
Discontinued.
Before you order
What to photograph or confirm so the right unit is quoted.
Provide the complete TE part number, required quantity and packaging. Confirm the exact PCB footprint, contact plating, keying and module or card standard. Confirm lifecycle, stock, condition and lead time separately at quotation.
Other parts in the TE Connectivity DDR2 and earlier DIMM and SO-DIMM sockets family
Listed for reference. They differ from the 1-1612773-4 in rating, supply, interface or function and are not interchangeable with it unless TE Connectivity says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| TE Connectivity 1-1473005-1DDR1 SO-DIMM socket, 200 positions, 5.2 mm stack height, standard keying | DDR1 SO-DIMM socket | Active | In stock | On request | View |
| TE Connectivity 1-1473005-4DDR SO-DIMM socket (generation unresolved): 200 positions, 5.2 mm [ .205 in ] stack height, Semi-Hard Tray Assembly packaging | DDR SO-DIMM socket (generation unresolved) | Discontinued | In stock | On request | View |
| TE Connectivity 1-1735251-2DDR2 SO-DIMM socket: 144 positions, 5.2 mm [ .205 in ] stack height, Tape & Reel packaging | DDR2 SO-DIMM socket | Active | In stock | On request | View |
| TE Connectivity 1612923-1DDR1 SO-DIMM socket: 200 positions, 5.2 mm [ .205 in ] stack height, Semi-Hard Tray Assembly | Tray packaging | DDR1 SO-DIMM socket | Discontinued | In stock | On request | View |
| TE Connectivity 1473006-4DDR2 SO-DIMM socket: 200 positions, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash | DDR2 SO-DIMM socket | Active | In stock | On request | View |
| TE Connectivity 1-1473006-1DDR1 SO-DIMM socket: 200 positions, Surface Mount, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash, Semi-Hard Tray Assembly | DDR1 SO-DIMM socket | Discontinued | In stock | On request | View |
| TE Connectivity 1939495-1DDR2 DIMM socket: 240 positions, Surface Mount, Vertical, Gold (Au), Box & Tray | Tray | DDR2 DIMM socket | Discontinued | In stock | On request | View |
| TE Connectivity 1888669-1DDR2 DIMM socket: 240 positions, Through Hole - Solder, Vertical, Gold (Au), Box & Tray | Tray | DDR2 DIMM socket | Discontinued | In stock | On request | View |
| TE Connectivity 5-1612773-4DDR SO-DIMM socket (generation unresolved): 200 positions, Surface Mount, 6.5 mm [ .256 in ] stack height, Right Angle, Gold Flash, Semi-Hard Tray Assembly | DDR SO-DIMM socket (generation unresolved) | Discontinued | In stock | On request | View |
| TE Connectivity 1717379-1DDR1 SO-DIMM socket: 200 positions, Surface Mount, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash, Tape & Reel | DDR1 SO-DIMM socket | Discontinued | In stock | On request | View |
| TE Connectivity 1717379-4DDR2 SO-DIMM socket: 200 positions, Surface Mount, 5.2 mm [ .205 in ] stack height, Right Angle, Gold Flash, Tape & Reel | DDR2 SO-DIMM socket | Discontinued | In stock | On request | View |
| TE Connectivity 292406-5DDR SO-DIMM socket (generation unresolved): 200 positions, Surface Mount, 4 mm [ .157 in ] stack height, Right Angle, Gold (Au), Reel | DDR SO-DIMM socket (generation unresolved) | Discontinued | In stock | On request | View |
You may also be interested in
- In stock
TE Connectivity

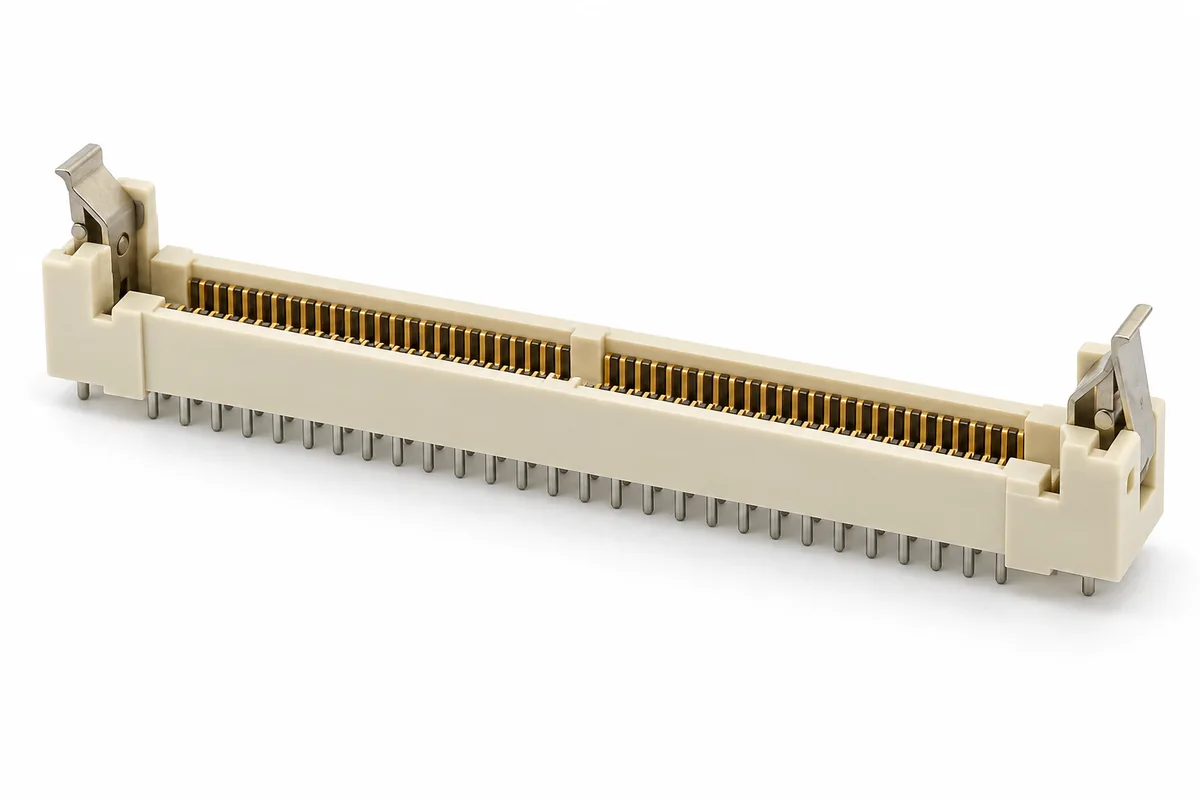

TE Connectivity 5822030-3
