ABB 3BSC690087R1 AO895
AO895 analog output module
Image is for illustrative purposes only. Please refer to product description.
Delivery options
AO895 (3BSC690087R1) is an ABB S800 analog output module with 8 channels. Signal specification: 4...20 mA.
- Manufacturer
- ABB
- Manufacturer part no.
- 3BSC690087R1
- Model
- AO895
- Product family
- S800 I/O Modules
- Type
- Analog output module
- Category
- PLCs and I/O › Analogue I/O modules
- Lifecycle
- To be confirmed
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- ABB
- Manufacturer part no.
- 3BSC690087R1
- Type
- Analog output module
- Application
- Provides analogue commands from the control system to field equipment.
- Used with
- TU890, TU891 and TU891Z
- Module model
- AO895
- Article number
- 3BSC690087R1
- Type
- Analog Output
- Number of channels
- 8
- Signal specification
- 4...20 mA
- Signal type
- Unipolar single ended
- Resolution
- 12 bit
- HART
- Yes
- SOE
- No
- Redundancy
- No
- High integrity
- No
- Intrinsic safety
- Yes
- Isolation
- Groupwise isolated from ground
- Output load
- <625 ohms at up to 22 mA
- Current limiting
- Short circuit proof current limited output
- Power dissipation
- 4.25 W
- Current consumption +5 V Modulebus
- Typ. 130 mA
- Current consumption +24 V external
- Typ. 250 mA, Max. <330 mA
- Temperature, Operating
- 0 to +55 °C (+32 to +131 °F)
- Temperature, Storage
- -40 to +70 °C (-40 to +158 °F)
- Relative humidity
- 5 to 95 %, non-condensing
- Protection class
- IP20 according to IEC 60529
- Use with MTU
- TU890, TU891 and TU891Z
- Keying code
- AF
- Width
- 45 mm
Show all 33 specificationsShow fewer
- Height
- 119 mm
- Depth
- 102 mm, 111 mm including connector
- Weight
- 0.2 kg
Technical documents (1)
Key features
- 8 analog output channels
- Signal range: 4...20 mA
- Resolution: 12 bit
- Isolation: Groupwise isolated from ground
- Redundancy: No
- HART: Yes
About the ABB 3BSC690087R1
AO895 (3BSC690087R1) is an ABB S800 analog output module with 8 channels. Signal specification: 4...20 mA. The module uses the S800 mechanical format. The specified resolution is 12 bit. ABB lists groupwise isolated from ground isolation. Order number 3BSC690087R1 identifies this module variant; the model name and revision should be checked together before replacement.
What is the 3BSC690087R1 used for?
Provides analogue commands from the control system to field equipment.
Lifecycle and successor
To be confirmed.
Before you order
What to photograph or confirm so the right unit is quoted.
Confirm both AO895 and order number 3BSC690087R1, hardware revision, installed controller and I/O configuration. Match signal range, channel wiring, termination unit and keying. Confirm redundancy or safety requirements against the OEM system documentation; related modules are not automatically interchangeable.
Other parts in the ABB S800 I/O family
Listed for reference. They differ from the 3BSC690087R1 in rating, supply, interface or function and are not interchangeable with it unless ABB says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| ABB 3BSC690071R1 AI890AI890 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690141R1 AI893AI893 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690086R1 AI895AI895 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE038415R1 AO810V2AO810V2 analog output module | Analog output module | To be confirmed | On Request | On request | View |
| ABB 3BSE052605R1 AO815AO815 analog output module | Analog output module | To be confirmed | On Request | On request | View |
| ABB 3BSE008546R1 AO820AO820 analog output module | Analog output module | To be confirmed | On Request | On request | View |
| ABB 3BSE045584R1 AO845AAO845A analog output module | Analog output module | To be confirmed | On Request | On request | View |
| ABB 3BSC690072R1 AO890AO890 analog output module | Analog output module | To be confirmed | On Request | On request | View |
| ABB 3BSE008508R1 DI810DI810 digital input module | Digital input module | To be confirmed | On Request | On request | View |
| ABB 3BSE008552R1 DI811DI811 digital input module | Digital input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690073R1 DI890DI890 digital input module | Digital input module | To be confirmed | On Request | On request | View |
| ABB 3BSC690074R1 DO890DO890 digital output module | Digital output module | To be confirmed | On Request | On request | View |
You may also be interested in
ABB
ABB 3BSE020512R1 AI801
View
ABB
ABB 3BSE020514R1 AO801
View
ABB
ABB 3BSE020508R1 DI801
View
ABB
ABB 3BSE022360R1 DI802
View
ABB
ABB 3BSE022362R1 DI803
View
ABB
ABB 3BSE020510R1 DO801
View
ABB
ABB 3BSE022364R1 DO802
View
Danfoss
Danfoss VLT 6062 525-600 V
ViewDanfoss
Danfoss VLT 6072 525-600 V
ViewDanfoss
Danfoss VLT 6102 525-600 V
ViewDanfoss
Danfoss VLT 6122 525-600 V
View
Danfoss

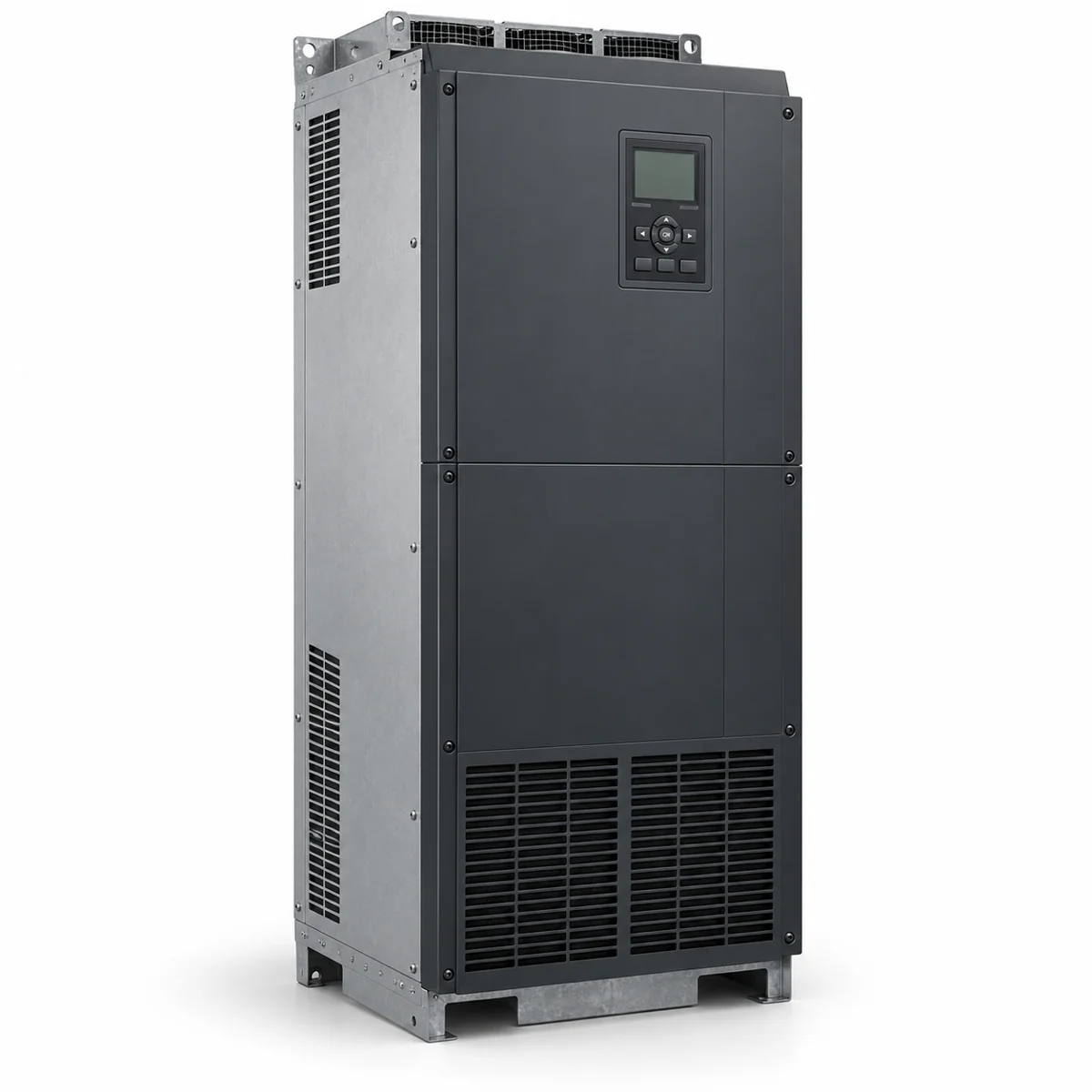

Danfoss VLT 6152 525-600 V
