1756-L8SP

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1756-L8SP

Type

Safety partner module

Application

PLC controller

Used with

ControlLogix 1756 chassis

Safety memory

Configured to match primary controller

Energy storage module

Embedded in controller, non-removable

Number of power cycles

80,000

Current draw @ 1.2V DC

5.0 mA

Current draw @ 5.1V DC

1.20 A

Power dissipation

6.2 W

Thermal dissipation

21.2 BTU/hr

Weight, approx

0.394 kg (.868 lb)

Slot width

1

Module location

Chassis slot immediately to the right of the primary controller

Chassis

1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, 1756-A17K, Series B and Series C

Temperature code

T4

Enclosure type rating

None (open-style)

Temperature, operating (SIL 2/PLd)

0 °C ≤ Ta ≤ +60 °C (+32 °F ≤ Ta ≤ +140 °F) for Series C Chassis 0 °C ≤ Ta ≤ +50 °C (+32 °F ≤ Ta ≤ +122 °F) for Series B Chassis

Temperature, nonoperating

-40…+85 °C (-40…+185 °F) Chassis Series C and B

Relative humidity

5…95% noncondensing

Conformal coated

Yes

Vibration

IEC 60068-2-6 (Test Fc, Operating)

Shock, operating

IEC 60068-2-27 (Test Ea, Unpackaged Shock)

Emissions

IEC 61000-6-4

ESD immunity

IEC 61000-4-2

Radiated RF immunity

IEC 61000-4-3

EFT/B Immunity

IEC 61000-4-4

Surge Transient Immunity

IEC 61000-4-5

Conducted RF Immunity

IEC 61000-4-6

Technical documents (1)

• Rockwell Automation technical data 1756-TD001

Key features

• Safety memory configured to match primary controller
• Fits chassis slot immediately right of primary controller
• Embedded, non-removable energy storage module
• Conformal coated, with T4 temperature code
• Rated for 80,000 power cycles

About the Allen-Bradley 1756-L8SP

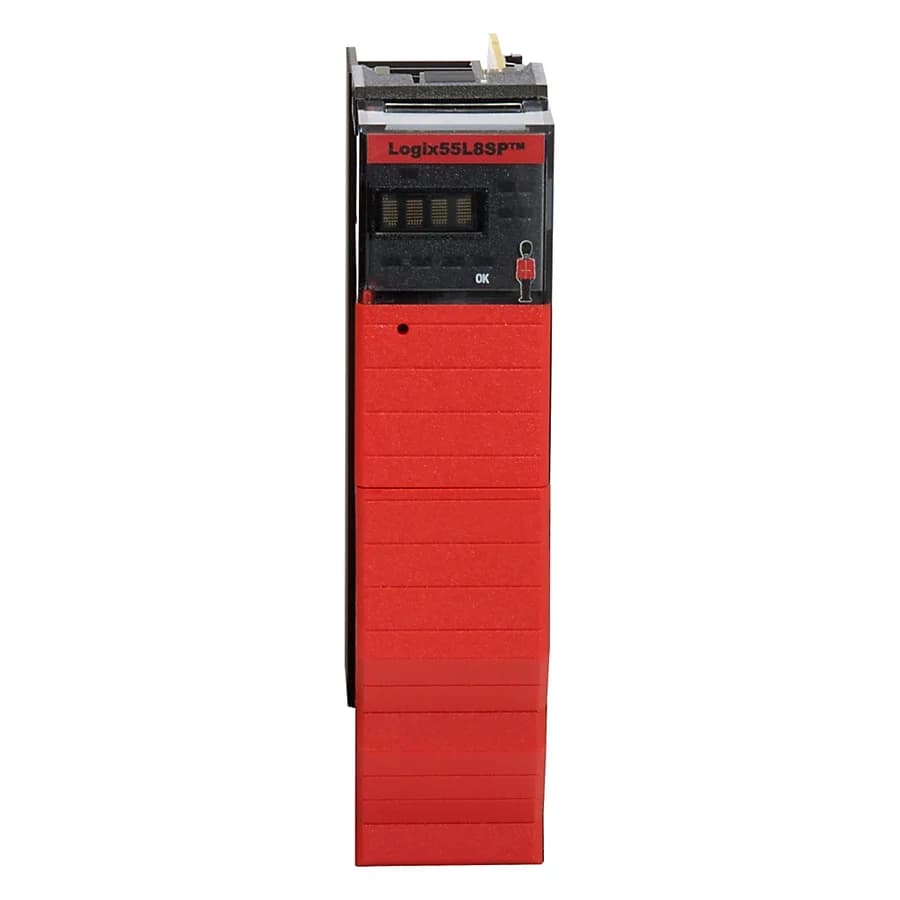

The Allen-Bradley 1756-L8SP is the GuardLogix 5580 Safety Partner Controller, which Rockwell Automation lists with an Active lifecycle status. Rockwell specifies safety memory configured to match the primary controller and an energy storage module embedded in the controller, which is non-removable. Rockwell technical data 1756-TD001 gives a current draw of 1.20 A at 5.1V DC, 5.0 mA at 1.2V DC and a power dissipation of 6.2 W. It lists an approximate weight of 0.394 kg and a slot width of 1.

What is the 1756-L8SP used for?

The 1756-L8SP works as the safety partner to the primary controller and is fitted in the chassis slot immediately to its right. Rockwell lists the 1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17 and 1756-A17K chassis, Series B and Series C. For SIL 2/PLd, Rockwell gives an operating temperature of 0 °C to +60 °C in a Series C chassis and 0 °C to +50 °C in a Series B chassis.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1756-L8SP, the series letter and the firmware revision on the label. Send us a photo of the label so we can confirm the part against your requirement.
