DEIF AGC-2
Automatic genset controller
Image is for illustrative purposes only. Please refer to product description.
Delivery options
Legacy automatic genset controller in DEIF's AGC family.
- Manufacturer
- DEIF
- Manufacturer part no.
- AGC-2
- Product family
- AGC Genset Controllers
- Type
- Automatic genset controller
- Category
- Generator controls › Genset controllers
- Lifecycle
- Discontinued
- OEM successor
- AGC-4 Mk II
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- DEIF
- Manufacturer part no.
- AGC-2
- Type
- Automatic genset controller
- Application
- Genset control / power management; confirm exact marine approvals per variant
- Used with
- Generator sets / power-management systems
- Product
- AGC-2 automatic gen-set controller, DEIF Multi-line 2
- Measuring voltage
- 100 to 690 V AC +/-20%
- Measuring current
- -/1 or -/5 A AC, from CTs
- Measuring frequency
- 30 to 70 Hz
- Current overload
- 4 x In continuously; 20 x In for 10 s (max. 75 A); 80 x In for 1 s (max. 300 A)
- Auxiliary supply
- 12/24 V DC (8 to 36 V continuously), max. 8 W
- Relay outputs
- 250 V AC / 24 V DC, 5 A
- Operating temperature
- -25 to 70 °C
- Storage temperature
- -40 to 70 °C
- Protection
- Unit IP20; display IP52 (IP54 with gasket, option L)
- EMC
- EN 61000-6-1/2/3/4, IEC 60255-26, IEC 60533, IACS UR E10
- Mounting
- DIN rail or base mount with 6 screws
- Weight
- Main unit 1.6 kg
- Approvals
- UL/cUL Listed to UL508
Technical documents (1)
Key features
- Automatic mains failure, island, fixed power, peak shaving and load takeover
- Optional load sharing and power management
- Overcurrent (2 levels) and reverse power protection
- Separate display for switchboard door mounting
- M-Logic configurable logic
- GSM option for SMS alarm messages
About the DEIF AGC-2
The DEIF AGC-2 is an automatic gen-set controller from the first generation of DEIF's Multi-line 2 range. It combines three-phase measuring, generator protection and engine control for one generator set, with a separate display that can be mounted on the unit or in the switchboard door. It covers automatic mains failure, island operation, fixed power, peak shaving, load takeover and mains export, with optional load sharing and power management.
What is the AGC-2 used for?
The AGC-2 starts, stops, synchronises and protects a generator set, on its own or as part of a DEIF power management system. Replacing it like for like keeps the existing wiring and configuration; DEIF names the AGC-4 Mk II as the current controller.
Lifecycle and successor
Discontinued.
OEM successor: AGC-4 Mk II
Before you order
What to photograph or confirm so the right unit is quoted.
Check the item number and variant on the label and the installed options. Send a label photo and the vessel name or IMO number.
OEM successor to AGC-2
Named by DEIF as the successor. It is an upgrade, not a like-for-like spare: check wiring, I/O and configuration for your installation before ordering it in place of the AGC-2.
Other parts in the DEIF AGC Legacy family
Listed for reference. They differ from the AGC-2 in rating, supply, interface or function and are not interchangeable with it unless DEIF says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| DEIF AGC-3Automatic genset controller | Automatic genset controller | Discontinued | In Stock | from $667.19 | View |
| DEIF AGC-4Automatic genset controller | Automatic genset controller | Phased out | In Stock | from $2,800.00 | View |
| DEIF AGC 200Advanced genset controller | Advanced genset controller | Discontinued | On Request | On request | View |
| DEIF AGC plant managementPlant management controller | Plant management controller | Phased out | On Request | On request | View |
You may also be interested in
DEIF
DEIF PPU 300
View
DEIF
DEIF GPU 300
View
DEIF
DEIF PPM-3
View
DEIF
DEIF PPU-2
View
DEIF
DEIF PPM-2
View
DEIF
DEIF GPU-2
View
DEIF
DEIF PPU-3
View
Danfoss
Danfoss VLT 5005 525-600 V
ViewDanfoss
Danfoss VLT 5006 525-600 V
ViewDanfoss
Danfoss VLT 5008 525-600 V
ViewDanfoss
Danfoss VLT 5011 525-600 V
View
Danfoss

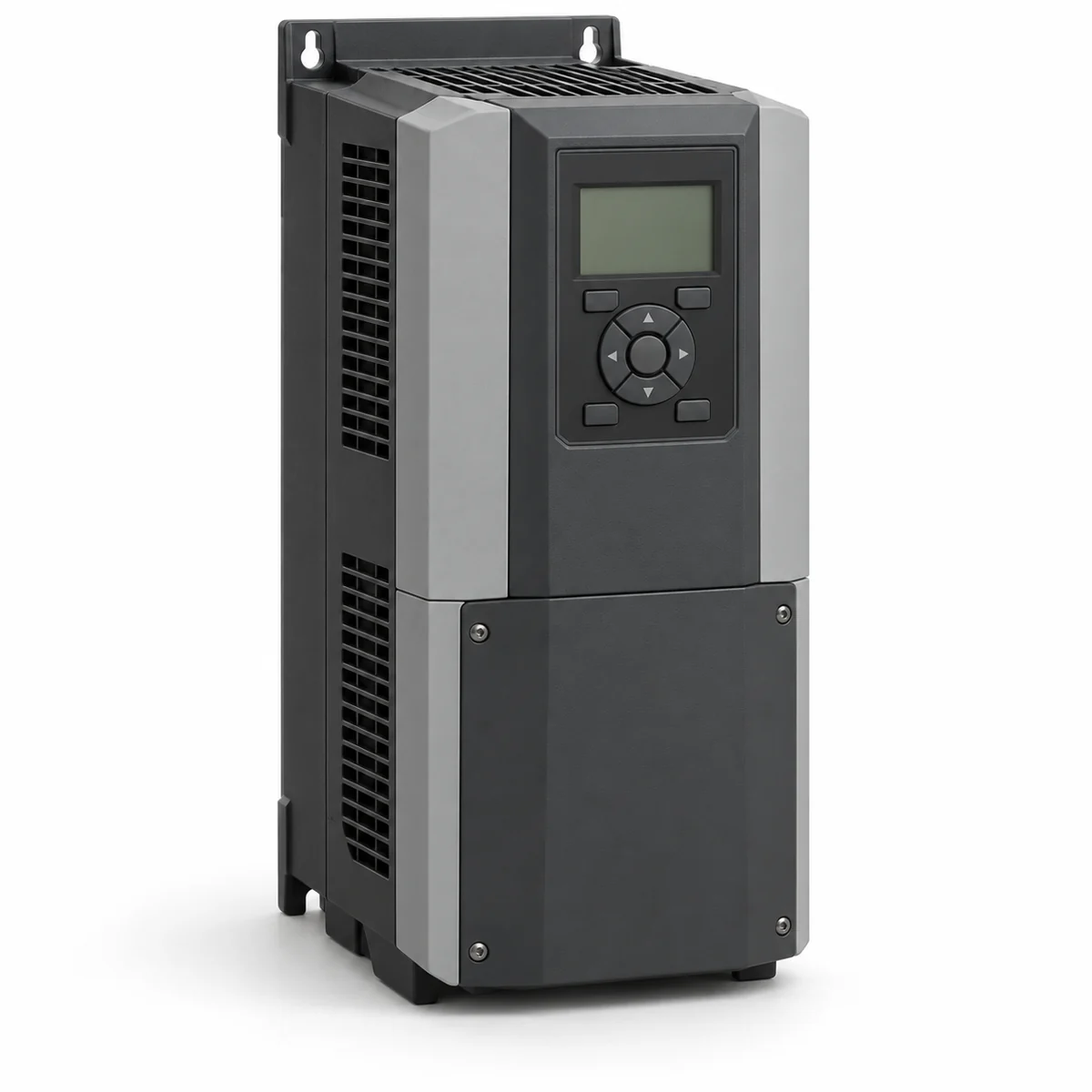

Danfoss VLT 5016 525-600 V
