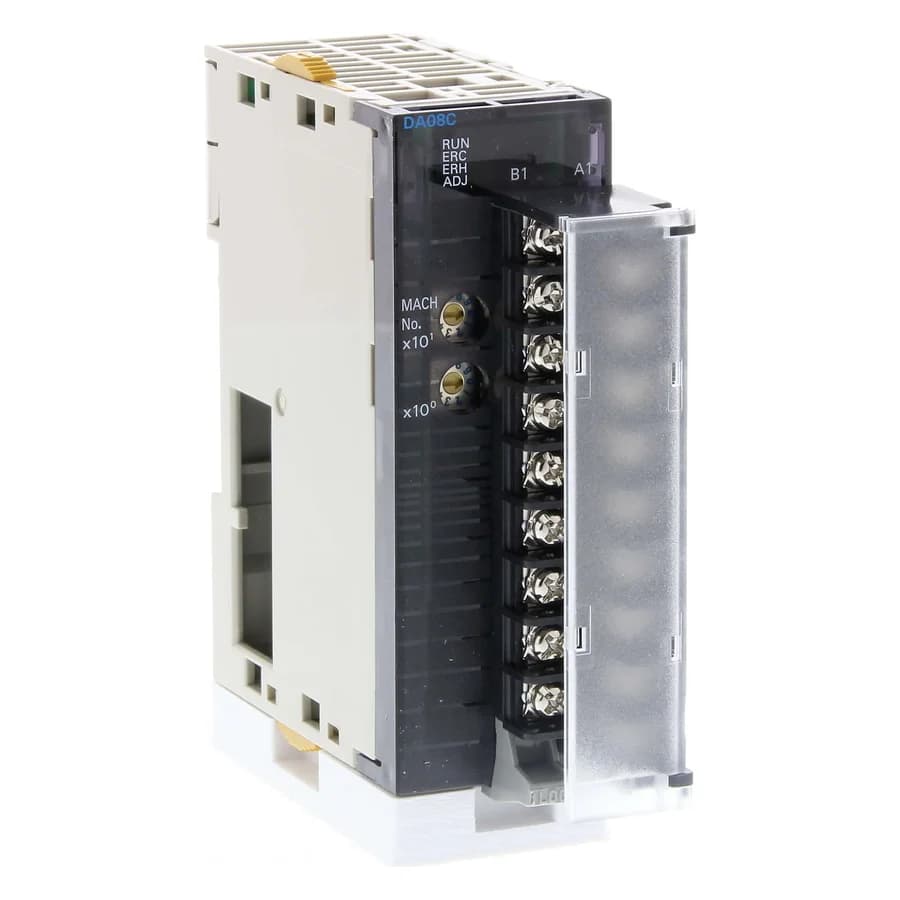

Omron CJ1W-DA08C

Technical specifications

Manufacturer

Omron

Manufacturer part no.

CJ1W-DA08C

Type

Analog output module

Application

I/O module

Used with

CJ-series CPUs (CJ1, CJ2)

I/O system

CJ I/O Bus

Expansion unit type

Special I/O Unit

Type of module

Analog I/O

Number of analog outputs

8

Linear analog output type

4 to 20 mA

Resolution of the analog outputs

12 Bit

I/O connection type

Screw

Number of I/O connectors

1

Height

90 mm

Width

31 mm

Depth

89 mm

Weight

167 g

Technical documents (1)

• Omron product page CJ1W-DA08C

Key features

• Number of I/O connectors: 1
• Expansion unit type: Special I/O Unit
• Size 90 mm high, 31 mm wide, 89 mm deep

About the Omron CJ1W-DA08C

The Omron CJ1W-DA08C is a CJ1W analogue output unit. Omron describes it as: Analog output unit, 8 x outputs 4 to 20 mA, resolution 12 bit, screw terminal. Its specification table gives 8 analogue outputs, 12 Bit output resolution and screw connection. Omron's European product page carries no end-of-production notice for it.

What is the CJ1W-DA08C used for?

The CJ1W-DA08C mounts on the CJ I/O bus beside a CJ-series CPU, which reads and writes its analogue output signals each cycle.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number CJ1W-DA08C on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
