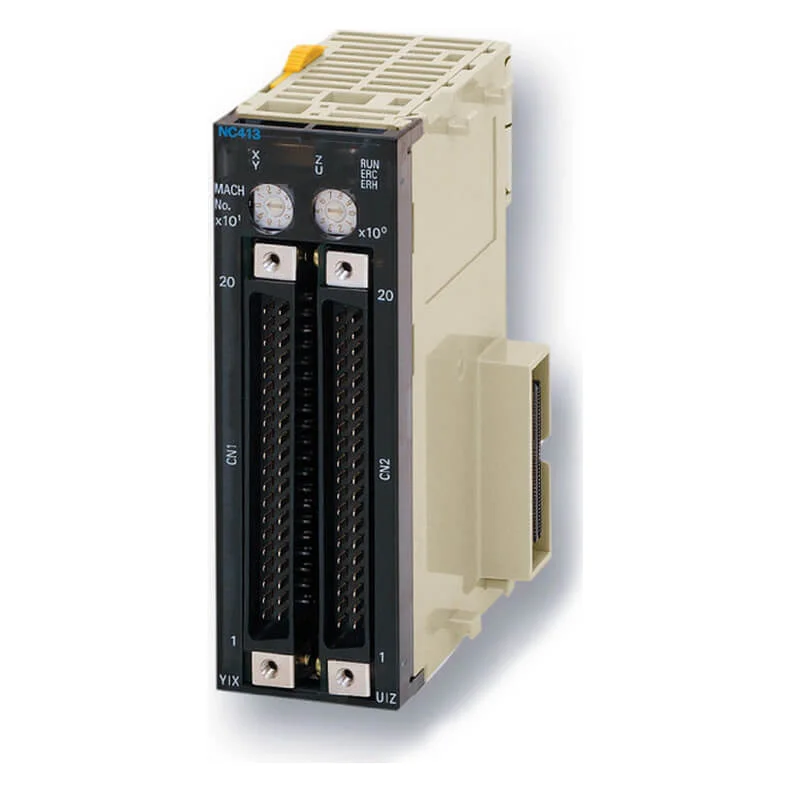

Omron CJ1W-NC413

Technical specifications

Manufacturer

Omron

Manufacturer part no.

CJ1W-NC413

Type

Counter module

Application

I/O module

Used with

CJ-series CPUs (CJ1, CJ2)

I/O system

CJ I/O Bus

Expansion unit type

Special I/O Unit

Type of module

Positioning

Digital input type

Line driver (RS-422), NPN, No voltage, PNP

Digital output type

NPN, Open collector

Max. number of PTP axes

4

Number of pulse output channels

4

Max. pulse output frequency

500 kHz

I/O connection type

FCN (plug not included)

Number of I/O connectors

2

Height

90 mm

Width

31 mm

Depth

66.5 mm

Weight

150 g

Technical documents (1)

• Omron product page CJ1W-NC413

Key features

• Number of I/O connectors: 2
• Expansion unit type: Special I/O Unit
• Size 90 mm high, 31 mm wide, 66.5 mm deep

About the Omron CJ1W-NC413

The Omron CJ1W-NC413 is a CJ1W position control unit. Omron describes it as: Position control unit, 4 axes, NPN open collector pulse string output, 500 KHz. Its specification table gives line driver (RS-422), NPN, No voltage, PNP inputs, NPN, Open collector outputs and FCN (plug not included) connection. Omron's European product page carries no end-of-production notice for it.

What is the CJ1W-NC413 used for?

The CJ1W-NC413 mounts on the CJ I/O bus beside a CJ-series CPU, which reads and writes its position control signals each cycle.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number CJ1W-NC413 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
