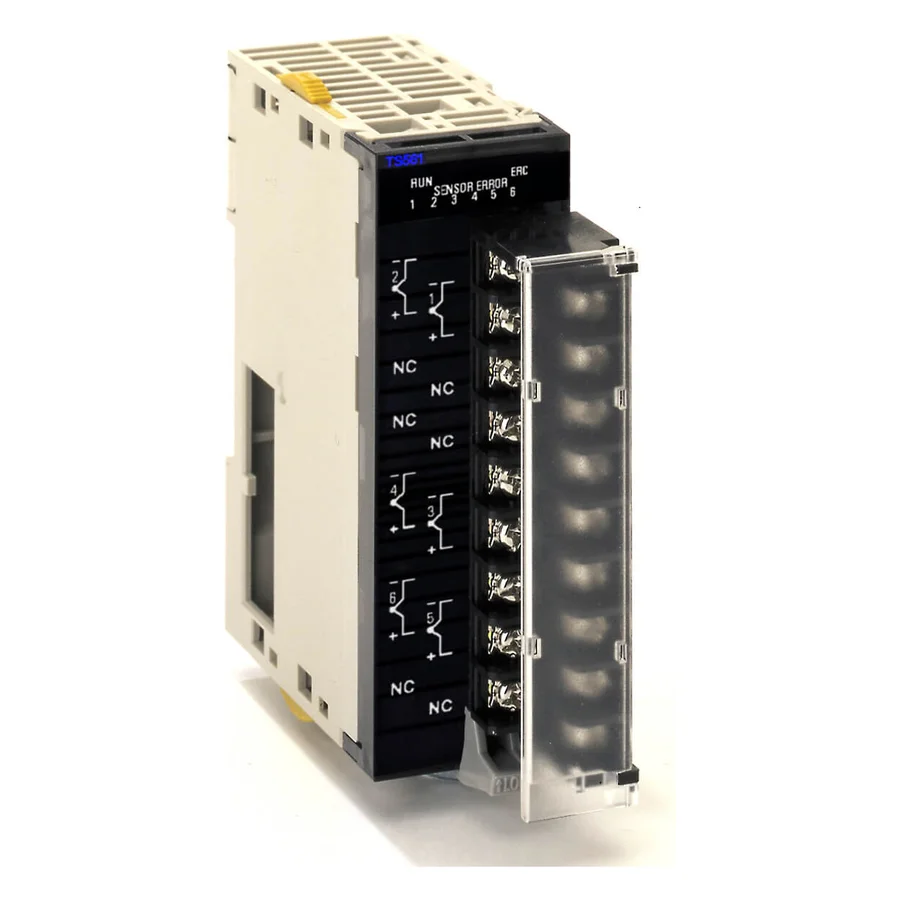

Omron CJ1W-TS561

Technical specifications

Manufacturer

Omron

Manufacturer part no.

CJ1W-TS561

Type

Analog input module

Application

I/O module

Used with

CJ-series CPUs (CJ1, CJ2)

I/O system

CJ I/O Bus

Expansion unit type

Basic I/O Unit

Type of module

Analog I/O

Number of analog inputs

6

Temperature input type

J, K

Resolution of the analog inputs

15 Bit

I/O connection type

Screw

Number of I/O connectors

1

Height

90 mm

Width

31 mm

Depth

89 mm

Weight

176 g

Technical documents (1)

• Omron product page CJ1W-TS561

Key features

• Number of I/O connectors: 1
• Expansion unit type: Basic I/O Unit
• Size 90 mm high, 31 mm wide, 89 mm deep

About the Omron CJ1W-TS561

The Omron CJ1W-TS561 is a CJ1W analogue input unit. Omron describes it as: Thermocouple input unit, 6 x inputs type J, K, resolution 0.1 °C, screw terminal. Its specification table gives 6 analogue inputs, 15 Bit input resolution and screw connection. Omron's European product page carries no end-of-production notice for it.

What is the CJ1W-TS561 used for?

The CJ1W-TS561 mounts on the CJ I/O bus beside a CJ-series CPU, which reads and writes its analogue input signals each cycle.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number CJ1W-TS561 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
