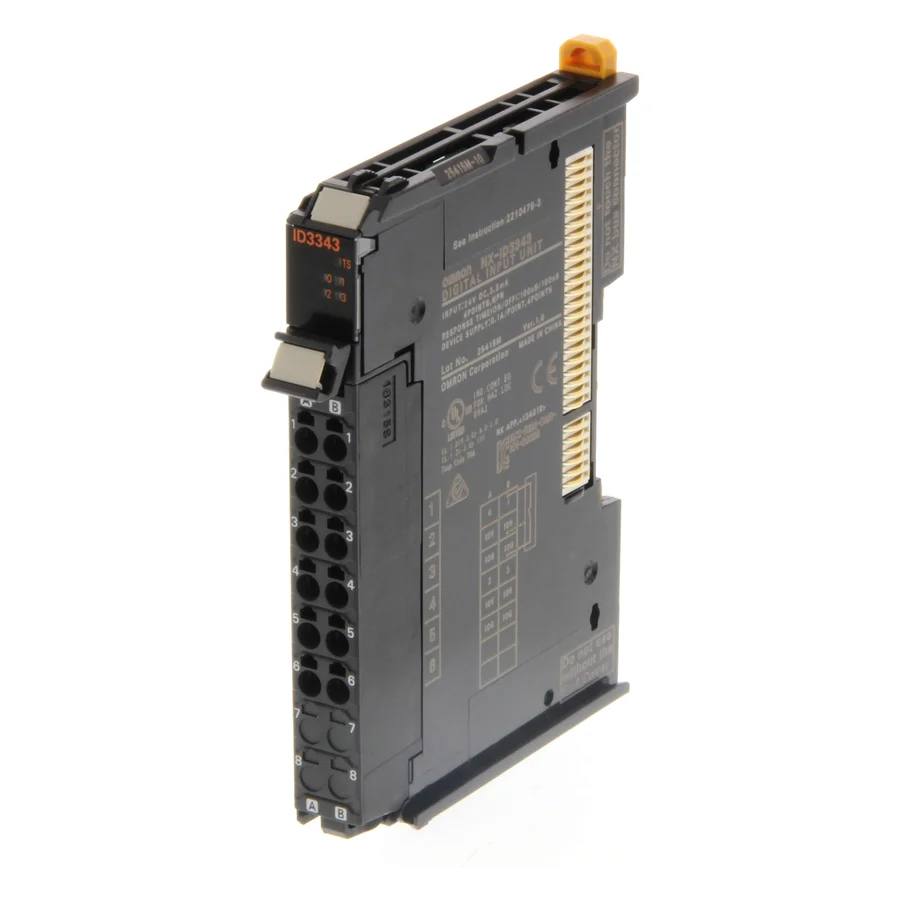

Omron NX-ID3343

Technical specifications

Manufacturer

Omron

Manufacturer part no.

NX-ID3343

Type

Digital input module

Application

I/O module

Used with

NX-series controllers and NX bus couplers

I/O system

NX I/O Bus

Type of module

Digital I/O

Number of digital inputs

4

Digital input type

NPN

Permitted voltage at input

15-28.8 V

OFF/ON delay

0-0.0001 ms

Connection method

2-wire, 3-wire

Signal processing

Free running, High speed, Synchronous

I/O connection type

Push-in

Number of I/O connectors

1

Number of IOV (V+) terminals

4

Number of IOG (V-) terminals

4

Degree of protection (IP)

IP20

Height

104.5 mm

Width

12 mm

Depth

80.1 mm

Weight

65 g

Technical documents (1)

• Omron product page NX-ID3343

Key features

• Signal processing: Free running, High speed, Synchronous
• OFF/ON delay: 0-0.0001 ms
• Connection method: 2-wire, 3-wire
• Degree of protection (IP): IP20
• Number of I/O connectors: 1

About the Omron NX-ID3343

The Omron NX-ID3343 is an NX digital input unit. Omron describes it as: 4 Digital Inputs, High speed, NPN 24 VDC, screwless push-in connector, 12 mm wide. Its specification table gives 4 digital inputs, NPN inputs and 15-28.8 V input voltage. Omron's European product page carries no end-of-production notice for it.
