Omron NX-ID4442

Technical specifications

Manufacturer

Omron

Manufacturer part no.

NX-ID4442

Type

Digital input module

Application

I/O module

Used with

NX-series controllers and NX bus couplers

I/O system

NX I/O Bus

Type of module

Digital I/O

Number of digital inputs

8

Digital input type

PNP

Permitted voltage at input

15-28.8 V

OFF/ON delay

0.02-0.4 ms

Connection method

2-wire

Signal processing

Free running, Standard speed, Synchronous

I/O connection type

Push-in

Number of I/O connectors

1

Number of IOV (V+) terminals

8

Degree of protection (IP)

IP20

Height

104.5 mm

Width

12 mm

Depth

80.1 mm

Weight

65 g

Technical documents (1)

• Omron product page NX-ID4442

Key features

• Signal processing: Free running, Standard speed, Synchronous
• OFF/ON delay: 0.02-0.4 ms
• Connection method: 2-wire
• Degree of protection (IP): IP20
• Number of I/O connectors: 1

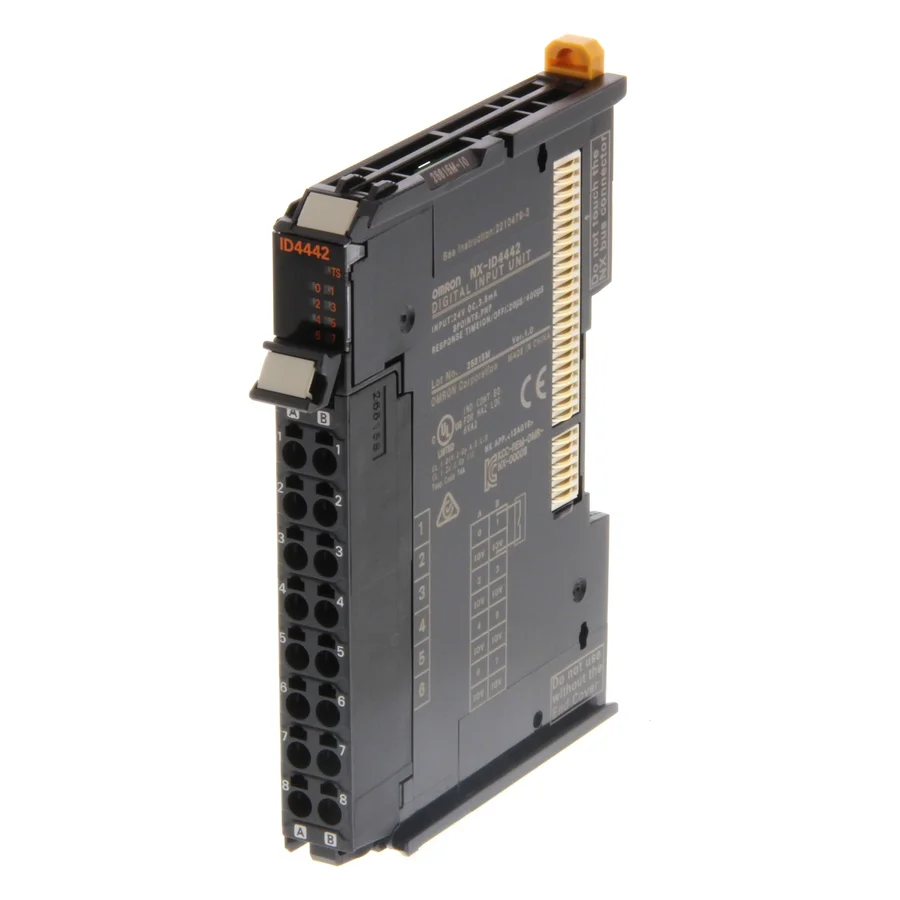

About the Omron NX-ID4442

The Omron NX-ID4442 is an NX digital input unit. Omron describes it as: 8 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide. Its specification table gives 8 digital inputs, PNP inputs and 15-28.8 V input voltage. Omron's European product page carries no end-of-production notice for it.

What is the NX-ID4442 used for?

The NX-ID4442 slots onto the NX I/O bus next to an NX controller or bus coupler, carrying its digital input signals to and from the machine.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the model number NX-ID4442 on the unit's label, with its lot number. Send us a photo of the label and we will confirm the details before quoting.
