BMEH582040C

Technical specifications

Manufacturer

Schneider Electric

Manufacturer part no.

BMEH582040C

Type

Modicon M580 Hot Standby controller

Application

PLC controller

Used with

Modicon M580 Ethernet backplane

Range of product

Modicon M580

Product or component type

Redundant processor module

Impregnation material

Conformal coated

Number of racks

1

Application specific I/O

Serial link; HART; Counter; Motion control; Accurate time stamping; SSI encoder

Checks

Process control

Control channels

Programmable loops

Integrated connection type

1 Ethernet TCP/IP for service port; 2 Ethernet TCP/IP for device network; USB type mini B; 1 Ethernet for HSBY port

Number of remote I/O station

8 - 2 rack(s) per X80 remote drop

Number of distributed equipment

64

Communication module processor capacity

2 Ethernet communication module; 16 AS-Interface module

Communication service

RIO scanner; DIO scanner

Memory description

Expandable flash, 4 GB for data storage; Integrated RAM, 10 kB for system memory; Integrated RAM, 8 MB for program; Integrated RAM, 768 kB for data

Application structure

1 periodic fast task; 1 cyclic/periodic master task

Cybersecurity

DoS prevention; IPSec; SNMP logging; Syslog protocol support; Transport layer security; Audit trail; Embedded firewall; Firmware signature; Password protection; Port hardening; Secure communication (HTTPS); Security log; RBAC user management; PKI digital certificate authentication; Modbus TLS (Modbus Secure Explicit); Centralised certificate management; NIS2.0 compliance; EU CRA compliance; Secure Hot-Standby communication forwarding

Number of instructions per ms

30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 40 Kinst/ms 100 % Boolean

Current consumption

270 mA at 24 V DC

MTBF reliability

650000 H

Marking

CE

Vibration resistance

3 gn

Shock resistance

30 gn

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Relative humidity

5…95 % at 55 °C without condensation

Technical documents (1)

• Schneider Electric product page BMEH582040C

Key features

• Integrated connection type: 1 Ethernet TCP/IP for service port
• Communication service: RIO scanner; DIO scanner
• Application structure: 1 periodic fast task; 1 cyclic/periodic master task
• Memory description: Expandable flash, 4 GB for data storage
• Number of instructions per ms: 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic

About the Schneider Electric BMEH582040C

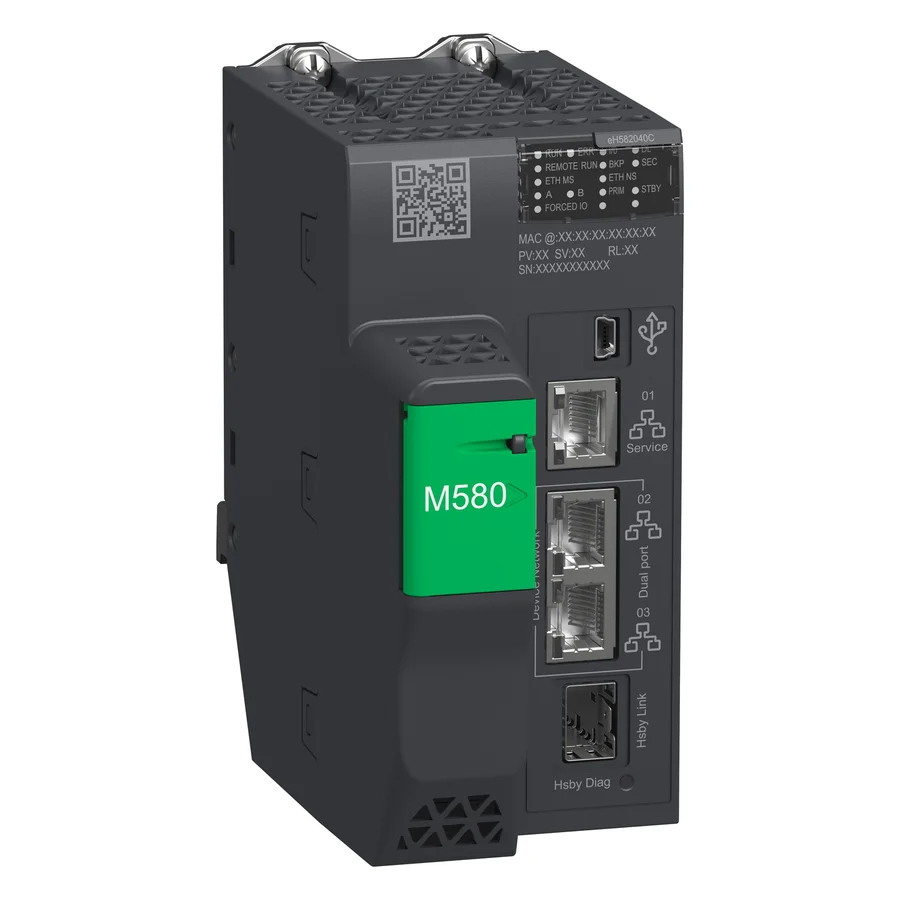

The Schneider Electric BMEH582040C is a redundant processor module from Schneider Electric's Modicon M580 range, which Schneider names "Redundant processor module, Modicon M580, HSBY Level 2, Remote Coated". Its product page gives number of racks 1 and current consumption 270 mA at 24 V DC. Schneider Electric lists it as Active.

What is the BMEH582040C used for?

The BMEH582040C runs the control program in a Modicon M580 rack, exchanging data with the rack's I/O and communication modules.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the reference BMEH582040C on the module's label, with its product version. Send us a photo of the label and we will confirm the details before quoting.
