BMEH584040S

Technical specifications

Manufacturer

Schneider Electric

Manufacturer part no.

BMEH584040S

Type

Modicon M580 Hot Standby controller

Application

PLC controller

Used with

Modicon M580 Ethernet backplane

Range of product

Modicon M580

Product or component type

Redundant processor module

Impregnation material

Conformal coated

Number of racks

1

Application specific I/O

Counter; Motion control; SSI encoder; Accurate time stamping; Serial link; HART

Checks

Process control; Safety control

Control channels

Programmable loops

Integrated connection type

1 Ethernet TCP/IP for service port; 2 Ethernet TCP/IP for device network; USB type mini B; 1 Ethernet for HSBY port

Number of remote I/O station

16 - 2 rack(s) per X80 and Quantum drops

Number of distributed equipment

61.0

Communication module processor capacity

4.0 Ethernet communication module; 16 AS-Interface module

Communication service

DIO scanner; RIO scanner

Memory description

Expandable flash, 4 GB for data storage; Integrated RAM, 10 kB for system memory; Integrated RAM, 16 MB for program process; Integrated RAM, 2048 kB for data process; Integrated RAM, 4 MB for program safety; Integrated RAM, 1024 kB for data safety

Application structure

1 master task; 1 periodic fast task; 1 periodic safe task

Cybersecurity

Achilles certified; DoS prevention; IPSec; SNMP logging; Syslog protocol support; Audit trail; Embedded firewall; Firmware signature; Password protection; Port hardening; Security log

Number of instructions per ms

30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 40 Kinst/ms 100 % Boolean

Current consumption

360 mA at 24 V DC

MTBF reliability

650000 H

Marking

CE

Vibration resistance

3 gn

Shock resistance

15 gn

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Relative humidity

5…95 % at 55 °C without condensation

Technical documents (1)

• Schneider Electric product page BMEH584040S

Key features

• Integrated connection type: 1 Ethernet TCP/IP for service port
• Communication service: DIO scanner; RIO scanner
• Application structure: 1 master task; 1 periodic fast task; 1 periodic safe task
• Memory description: Expandable flash, 4 GB for data storage
• Number of instructions per ms: 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic

About the Schneider Electric BMEH584040S

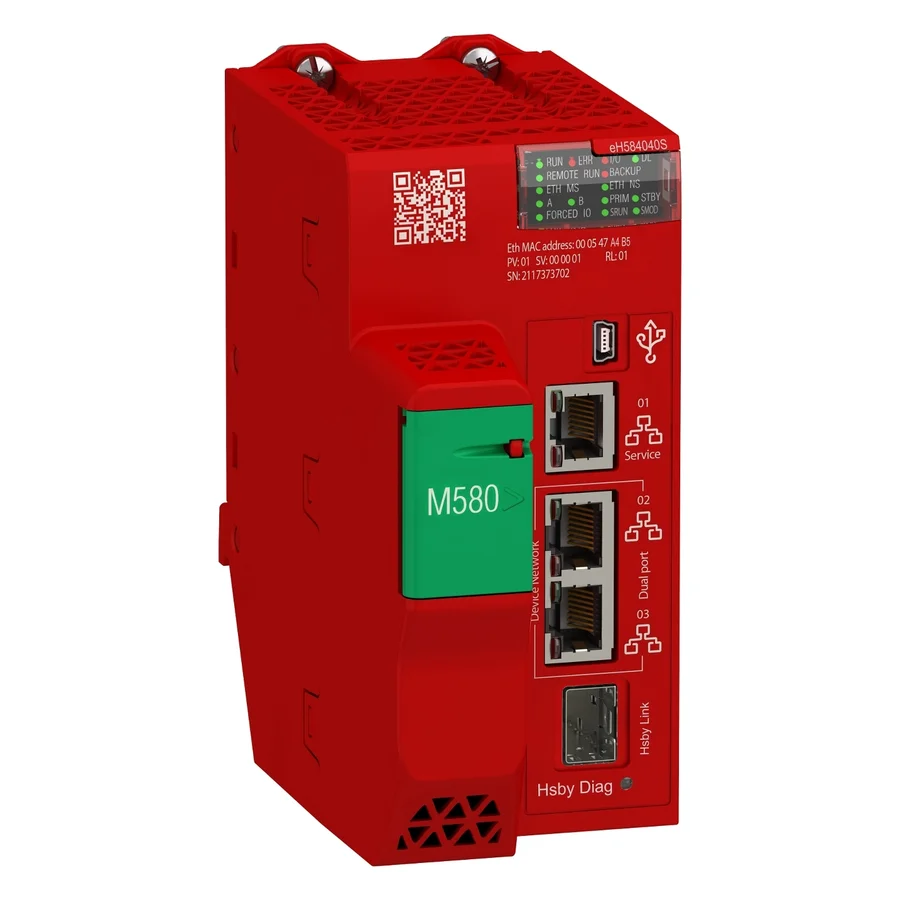

The Schneider Electric BMEH584040S is a redundant processor module from Schneider Electric's Modicon M580 range, which Schneider names "Redundant HSBY processor module M580 Safety SIL3 - Level 4". Its product page gives number of racks 1 and current consumption 360 mA at 24 V DC. Schneider Electric lists it as Active.
