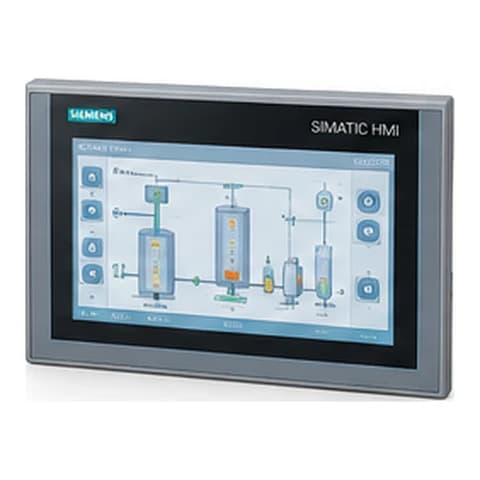

Image is for illustrative purposes only. Please refer to product description.
- Manufacturer
- Siemens
- Manufacturer part number
- 6AV2124-0MC01-0AX0
- Product family
- SIMATIC HMI Operator Panels
- Category
- HMI panels › Touch-screen operator panels
- Technical datasheet
- Data sheet
Specifications
| Attribute | Value |
|---|---|
| Type | HMI panel |
| Manufacturer lifecycle | Phased out |
| Product type designation | TP1200 Comfort |
| Design of display | TFT |
| Display / Screen diagonal | 12.1 in |
| Display width | 261.1 mm |
| Display height | 163.2 mm |
| Display / Number of colors | 16 777 216 |
| Resolution (pixels) / Horizontal image resolution | 1 280 pixel |
| Resolution (pixels) / Vertical image resolution | 800 pixel |
| Backlighting / MTBF backlighting (at 25 °C) | 80 000 h |
| Backlighting / Backlight dimmable | Yes; 0-100 % |
| Keyboard / Function keys / Number of function keys | 0 |
| Keyboard / Function keys / Number of function keys with LEDs | 0 |
| Keyboard / Keys with LED | No |
Show all 286 specificationsShow fewer specifications
| Keyboard / System keys | No |
|---|---|
| Keyboard / Numeric keyboard | Yes; Onscreen keyboard |
| Keyboard / alphanumeric keyboard | Yes; Onscreen keyboard |
| Touch operation / Design as touch screen | Yes; Analog-resistive |
| Expansions for operator control of the process / DP direct LEDs (LEDs as S7 output I/O) / F1...Fx | 0 |
| Expansions for operator control of the process / Direct keys (keys as S7 input I/O) / F1...Fx | 0 |
| Expansions for operator control of the process / Direct keys (touch buttons as S7 input I/O) | 40 |
| Installation type/mounting / Mounting position | vertical |
| Installation type/mounting / Wall mounting/direct mounting | No |
| Installation type/mounting / Mounting in portrait format possible | Yes |
| Installation type/mounting / Mounting in landscape format possible | Yes |
| Installation type/mounting / maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Supply voltage / Rated value (DC) | 24 V |
| Supply voltage / permissible range, lower limit (DC) | 19.2 V |
| Supply voltage / permissible range, upper limit (DC) | 28.8 V |
| Input current / Current consumption (rated value) | 0.85 A |
| Input current / Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 20 W |
| Processor type | X86 |
| Storage / Flash | Yes |
| Storage / RAM | Yes |
| Storage / Memory available for user data | 12 Mbyte |
| Type of output / Info LED | No |
| Type of output / Power LED | No |
| Type of output / Error LED | No |
| Acoustics / Buzzer | No |
| Acoustics / Speaker | Yes |
| Clock / Hardware clock (real-time) | Yes |
| Clock / Software clock | Yes |
| Clock / retentive | Yes; Back-up duration typically 6 weeks |
| Clock / synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1; 2 ports (switch) |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| Number of USB interfaces / USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Interfaces / Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet / Industrial Ethernet status LED | 2 |
| Industrial Ethernet / Number of ports of the integrated switch | 2 |
| Protocols / PROFINET | Yes |
| Protocols / Supports protocol for PROFINET IO | Yes |
| Protocols / IRT | Yes; As of WinCC V12 |
| Protocols / PROFIBUS | Yes |
| Protocols / EtherNet/IP | Yes |
| Protocols / MPI | Yes |
| Protocols (Ethernet) / TCP/IP | Yes |
| Protocols (Ethernet) / DHCP | Yes |
| Protocols (Ethernet) / SNMP | Yes |
| Protocols (Ethernet) / DCP | Yes |
| Protocols (Ethernet) / LLDP | Yes |
| WEB characteristics / HTTP | Yes |
| WEB characteristics / HTTPS | Yes |
| WEB characteristics / HTML | Yes |
| WEB characteristics / XML | Yes |
| WEB characteristics / CSS | Yes |
| WEB characteristics / Active X | Yes |
| WEB characteristics / JavaScript | Yes |
| WEB characteristics / Java VM | No |
| Redundancy mode / Media redundancy / MRP | Yes; As of WinCC V12 |
| Further protocols / CAN | No |
| Further protocols / MODBUS | Yes |
| Diagnoses / Diagnostic information readable | Yes; S7 controller |
| Emission of radio interference acc. to EN 55 011 / Limit class A, for use in industrial areas | Yes |
| Emission of radio interference acc. to EN 55 011 / Limit class B, for use in residential areas | No |
| Degree and class of protection / IP (at the front) | IP65 |
| Degree and class of protection / IP (rear) | IP20 |
| NEMA (front) / Enclosure Type 4 at the front | Yes |
| NEMA (front) / Enclosure Type 4x at the front | Yes |
| Standards, approvals, certificates / CE mark | Yes |
| Standards, approvals, certificates / cULus | Yes |
| Standards, approvals, certificates / RCM (formerly C-TICK) | Yes |
| Standards, approvals, certificates / KC approval | Yes |
| Ecological footprint / environmental product declaration | Yes |
| Ecological footprint / Global warming potential / global warming potential, (total) [CO2 eq] | 301 kg |
| Ecological footprint / Global warming potential / global warming potential, (during production) [CO2 eq] | 81.2 kg |
| Ecological footprint / Global warming potential / global warming potential, (during operation) [CO2 eq] | 221 kg |
| Ecological footprint / Global warming potential / global warming potential, (after end of life cycle) [CO2 eq] | -2.25 kg |
| Use in hazardous areas / ATEX Zone 2 | Yes |
| Use in hazardous areas / ATEX Zone 22 | Yes |
| Use in hazardous areas / IECEx Zone 2 | Yes |
| Use in hazardous areas / IECEx Zone 22 | Yes |
| Use in hazardous areas / cULus Class I Zone 1 | No |
| Use in hazardous areas / cULus Class I Zone 2, Division 2 | Yes |
| Use in hazardous areas / FM Class I Division 2 | Yes |
| Marine approval / Germanischer Lloyd (GL) | Yes; As of product version: 10 |
| Marine approval / American Bureau of Shipping (ABS) | Yes; As of product version: 10 |
| Marine approval / Bureau Veritas (BV) | Yes; As of product version: 10 |
| Marine approval / Det Norske Veritas (DNV) | Yes; As of product version: 10 |
| Marine approval / Lloyds Register of Shipping (LRS) | Yes; As of product version: 10 |
| Marine approval / Nippon Kaiji Kyokai (Class NK) | Yes; As of product version: 10 |
| Marine approval / Polski Rejestr Statkow (PRS) | No |
| Ambient conditions / Suited for indoor use | Yes |
| Ambient conditions / Suited for outdoor use | No |
| Ambient temperature during operation / Operation (vertical installation) / For vertical installation, min. | 0 °C |
| Ambient temperature during operation / Operation (vertical installation) / For vertical installation, max. | 50 °C; (55 °C, see entry ID: 64847814) |
| Ambient temperature during operation / Operation (max. tilt angle) / At maximum tilt angle, min. | 0 °C |
| Ambient temperature during operation / Operation (max. tilt angle) / At maximum tilt angle, max. | 40 °C |
| Ambient temperature during operation / Operation (vertical installation, portrait format) / For vertical installation, min. | 0 °C |
| Ambient temperature during operation / Operation (vertical installation, portrait format) / For vertical installation, max. | 40 °C |
| Ambient temperature during operation / Operation (max. tilt angle, portrait format) / At maximum tilt angle, min. | 0 °C |
| Ambient temperature during operation / Operation (max. tilt angle, portrait format) / At maximum tilt angle, max. | 35 °C |
| Ambient temperature during storage/transportation / min. | -20 °C |
| Ambient temperature during storage/transportation / max. | 60 °C |
| Relative humidity / Operation, max. | 90 %; no condensation |
| Operating systems / proprietary | No |
| pre-installed operating system / Windows CE | Yes |
| Configuration / Message indicator | Yes |
| Configuration / Alarm system (incl. buffer and acknowledgment) | Yes |
| Configuration / Process value display (output) | Yes |
| Configuration / Process value default (input) possible | Yes |
| Configuration / Recipe management | Yes |
| Configuration software / STEP 7 Basic (TIA Portal) | No |
| Configuration software / STEP 7 Professional (TIA Portal) | No |
| Configuration software / WinCC flexible Compact | No |
| Configuration software / WinCC flexible Standard | No |
| Configuration software / WinCC flexible Advanced | No |
| Configuration software / WinCC Basic (TIA Portal) | No |
| Configuration software / WinCC Comfort (TIA Portal) | Yes; from V11 |
| Configuration software / WinCC Advanced (TIA Portal) | Yes; from V11 |
| Configuration software / WinCC Professional (TIA Portal) | Yes; from V11 |
| Online languages / Number of online/runtime languages | 32 |
| Project languages / Languages per project | 32 |
| Functionality under WinCC (TIA Portal) / Libraries | Yes |
| Applications/options / Web browser | Yes |
| Applications/options / Pocket Word | Yes |
| Applications/options / Pocket Excel | Yes |
| Applications/options / PDF Viewer | Yes |
| Applications/options / Media Player | Yes |
| Applications/options / SIMATIC WinCC Sm@rtServer | Yes |
| Applications/options / SIMATIC WinCC Audit | Yes |
| Functionality under WinCC (TIA Portal) / Number of Visual Basic Scripts | Yes |
| Task planner / time-controlled | Yes |
| Task planner / task-controlled | Yes |
| Help system / Number of characters per info text | 70 |
| Message system / Number of alarm classes | 32 |
| Message system / Bit messages | Yes |
| Message system / Bit messages / Number of bit messages | 4 000 |
| Message system / Analog messages | Yes |
| Message system / Analog messages / Number of analog messages | 200 |
| Message system / S7 alarm number procedure | Yes |
| Message system / System messages HMI | Yes |
| Message system / System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Message system / Number of characters per message | 80 |
| Message system / Number of process values per message | 8 |
| Message system / Acknowledgment groups | Yes |
| Message system / Message indicator | Yes |
| Message system / Message buffer / Number of entries | 1 024 |
| Message system / Message buffer / Circulating buffer | Yes |
| Message system / Message buffer / retentive | Yes |
| Message system / Message buffer / maintenance-free | Yes |
| Recipe management / Number of recipes | 300 |
| Recipe management / Data records per recipe | 500 |
| Recipe management / Entries per data record | 1 000 |
| Recipe management / Size of internal recipe memory | 2 Mbyte |
| Recipe management / Recipe memory expandable | Yes |
| Variables / Number of variables per device | 2 048 |
| Variables / Number of variables per screen | 400 |
| Variables / Limit values | Yes |
| Variables / Multiplexing | Yes |
| Variables / Structures | Yes |
| Variables / Arrays | Yes |
| Images / Number of configurable images | 500 |
| Images / Permanent window/default | Yes |
| Images / Global image | Yes |
| Images / Pop-up images | Yes |
| Images / Slide-in images | Yes |
| Images / Image selection by PLC | Yes |
| Images / Image number in the PLC | Yes |
| Image objects / Number of objects per image | 400 |
| Image objects / Text fields | Yes |
| Image objects / I/O fields | Yes |
| Image objects / Graphic I/O fields (graphics list) | Yes |
| Image objects / Symbolic I/O fields (text list) | Yes |
| Image objects / Date/time fields | Yes |
| Image objects / Switches | Yes |
| Image objects / Buttons | Yes |
| Image objects / Graphic display | Yes |
| Image objects / Icons | Yes |
| Image objects / Geometric objects | Yes |
| Complex image objects / Number of complex objects per screen | 20 |
| Complex image objects / Alarm view | Yes |
| Complex image objects / Trend view | Yes |
| Complex image objects / User view | Yes |
| Complex image objects / Status/control | Yes |
| Complex image objects / Sm@rtClient view | Yes |
| Complex image objects / Recipe view | Yes |
| Complex image objects / f(x) trend view | Yes |
| Complex image objects / System diagnostics view | Yes |
| Complex image objects / Media Player | Yes |
| Complex image objects / HTML browser | Yes |
| Complex image objects / PDF display | Yes |
| Complex image objects / IP camera display | Yes |
| Complex image objects / Bar graphs | Yes |
| Complex image objects / Sliders | Yes |
| Complex image objects / Pointer instruments | Yes |
| Complex image objects / Analog/digital clock | Yes |
| Lists / Number of text lists per project | 500 |
| Lists / Number of entries per text list | 500 |
| Lists / Number of graphics lists per project | 500 |
| Lists / Number of entries per graphics list | 500 |
| Archiving / Number of archives per device | 50 |
| Archiving / Number of entries per archive | 20 000 |
| Archiving / Message archive | Yes |
| Archiving / Process value archive | Yes |
| Archiving / Archiving methods / Sequential archive | Yes |
| Archiving / Archiving methods / Short-term archive | Yes |
| Archiving / Memory location / Memory card | Yes |
| Archiving / Memory location / USB memory | Yes |
| Archiving / Memory location / Ethernet | Yes |
| Archiving / Data storage format / CSV | Yes |
| Archiving / Data storage format / TXT | Yes |
| Archiving / Data storage format / RDB | Yes |
| Security / Number of user groups | 50 |
| Security / Number of user rights | 32 |
| Security / Number of users | 50 |
| Security / Password export/import | Yes |
| Security / SIMATIC Logon | Yes |
| Logging through printer / Alarms | Yes |
| Logging through printer / Report (shift log) | Yes |
| Logging through printer / Hardcopy | Yes |
| Logging through printer / Electronic print to file | Yes; PDF, HTML |
| Character sets / Keyboard fonts / US English | Yes |
| Transfer (upload/download) / MPI/PROFIBUS DP | Yes |
| Transfer (upload/download) / USB | Yes |
| Transfer (upload/download) / Ethernet | Yes |
| Transfer (upload/download) / using external storage medium | Yes |
| Process coupling / S7-1200 | Yes |
| Process coupling / S7-1500 | Yes |
| Process coupling / S7-200 | Yes |
| Process coupling / S7-300/400 | Yes |
| Process coupling / LOGO! | Yes |
| Process coupling / WinAC | Yes |
| Process coupling / SINUMERIK | Yes; with SINUMERIK option package |
| Process coupling / SIMOTION | Yes |
| Process coupling / Allen Bradley (EtherNet/IP) | Yes |
| Process coupling / Allen Bradley (DF1) | Yes |
| Process coupling / Mitsubishi (MC TCP/IP) | Yes |
| Process coupling / Mitsubishi (FX) | Yes |
| Process coupling / OMRON (FINS TCP) | No |
| Process coupling / OMRON (Host Link) | Yes |
| Process coupling / Modicon (Modbus TCP/IP) | Yes |
| Process coupling / Modicon (Modbus RTU) | Yes |
| Process coupling / OPC UA Client | Yes |
| Process coupling / OPC UA Server | Yes |
| Service tools/configuration aids / Backup/Restore manually | Yes |
| Service tools/configuration aids / Backup/Restore automatically | Yes |
| Service tools/configuration aids / Simulation | Yes |
| Service tools/configuration aids / Device switchover | Yes |
| Peripherals/Options / Printer | Yes |
| Peripherals/Options / SIMATIC HMI MM memory card: Multi Media Card | Yes; Up to 128 MB |
| Peripherals/Options / SIMATIC HMI SD memory card: Secure Digital memory card | Yes; Up to 2 GB |
| Peripherals/Options / SIMATIC HMI CF memory card Compact Flash Card | No |
| Peripherals/Options / USB memory | Yes |
| Peripherals/Options / SIMATIC IPC USB Flashdrive (USB stick) | Yes; Up to 16 GB |
| Peripherals/Options / SIMATIC HMI USB stick | Yes; Up to 8 GB |
| Peripherals/Options / Network camera | Yes |
| Enclosure material (front) / Plastic | No |
| Enclosure material (front) / Aluminum | Yes |
| Enclosure material (front) / Stainless steel | No |
| Width of the housing front | 330 mm |
| Height of housing front | 241 mm |
| Mounting cutout, width | 310 mm |
| Mounting cutout, height | 221 mm |
| mounting depth | 64 mm |
| Weight (without packaging) | 2.8 kg |
| Weight (with packaging) | 3.5 kg |
Description
The Siemens 6AV2124-0MC01-0AX0 is the TP1200 Comfort, a 12-inch touch Comfort Panel. Siemens describes it with a widescreen TFT in 16 million colours, PROFINET and MPI/PROFIBUS DP interfaces, 12 MB of configuration memory and Windows CE 6.0, configured with WinCC Comfort from V11; its data sheet gives a 12.1-inch diagonal. SiePortal lists it as phase-out announced.
Application: Operator panel
Used with: SIMATIC controllers via PROFINET or MPI/PROFIBUS
What is the 6AV2124-0MC01-0AX0 used for?
It is the main operator screen of larger machines and lines, where a 7-inch panel is too small.
Key features
- 12.1-inch widescreen TFT, 16 million colours
- Touch operation
- PROFINET and MPI/PROFIBUS DP interfaces
- 12 MB configuration memory; Windows CE 6.0
- Configured with WinCC Comfort from V11
- Siemens has announced its phase-out
Documents and Resources
Associated Products
| Image | Product | Description | Stock | View | Add to RFQ |
|---|---|---|---|---|---|
 | 6AV2123-2GB03-0AX0Siemens | KTP700 Basic PN, 7" key/touch panel | In stock | View | |
 | 6AV2124-0GC01-0AX0Siemens | TP700 Comfort, 7" touch panel | In stock | View | |
 | 6AV2128-3QB06-0AX1Siemens | MTP1500 Unified Comfort, 15.6" touch panel | In stock | View | |
 | 6AV6642-0BA01-1AX1Siemens | TP 177B 6" PN/DP touch panel, 256-colour STN | In stock | View | |
| 6AV6643-0CD01-1AX1Siemens | MP 277 10" Touch multi panel, 10.4-inch TFT | In stock | View |
Product Questions
Is the 6AV2124-0MC01-0AX0 discontinued?
Yes. Its manufacturer lifecycle status is Phased out.
Can another Siemens SIMATIC HMI panels part replace it?
Potential replacements must be checked against the required ratings, dimensions and connections. Sharing a family name does not establish interchangeability.
Do you ship worldwide?
Yes. TimControls ships worldwide. Parts usually ship within 3 to 7 working days of order confirmation, and the exact lead time and shipping options are stated on your quote. Include your delivery country and postal code when you ask for a quote.
Latest news
TimControls is an independent distributor. Manufacturer names and logos are the property of their respective owners and identify products we source; they do not imply manufacturer authorization or affiliation.
