ABB 3BSE020508R1 DI801
DI801 digital input module
Image is for illustrative purposes only. Please refer to product description.
Delivery options
DI801 (3BSE020508R1) is an ABB S800L digital input module with 16 channels. Signal specification: 24V d.c..
- Manufacturer
- ABB
- Manufacturer part no.
- 3BSE020508R1
- Model
- DI801
- Product family
- S800L I/O Modules
- Type
- Digital input module
- Category
- PLCs and I/O › Digital I/O modules
- Lifecycle
- To be confirmed
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- ABB
- Manufacturer part no.
- 3BSE020508R1
- Type
- Digital input module
- Application
- Reads discrete field signals for control-system monitoring.
- Used with
- S800L process I/O; confirm connection and controller configuration.
- Module model
- DI801
- Article number
- 3BSE020508R1
- Type
- Digital Input
- Number of channels
- 16
- Signal specification
- 24V d.c.
- Signal type
- Current sinking
- HART
- No
- SOE
- No
- Redundancy
- No
- High integrity
- No
- Intrinsic safety
- No
- Isolation
- Groupwise isolated from ground
- Input impedance
- 3.5 kΩ
- Power dissipation
- Typ 2.2 W
- Current consumption +5 V Modulebus
- 70 mA
- Current consumption +24 V Modulebus
- 0
- Temperature, Operating
- 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
- Temperature, Storage
- -40 to +70 °C (-40 to +158 °F)
- Relative humidity
- 5 to 95 %, non-condensing
- Protection class
- IP20 according to IEC 60529
- Width
- 86.1 mm
- Height
- 110 mm
- Depth
- 58.5 mm
- Weight
- 0.24 kg
Technical documents (1)
Key features
- 16 digital input channels
- Signal range: 24V d.c.
- Isolation: Groupwise isolated from ground
- Redundancy: No
- HART: No
About the ABB 3BSE020508R1
DI801 (3BSE020508R1) is an ABB S800L digital input module with 16 channels. Signal specification: 24V d.c.. The module uses the S800L mechanical format. ABB lists groupwise isolated from ground isolation. Order number 3BSE020508R1 identifies this module variant; the model name and revision should be checked together before replacement.
What is the 3BSE020508R1 used for?
Reads discrete field signals for control-system monitoring.
Lifecycle and successor
To be confirmed.
Before you order
What to photograph or confirm so the right unit is quoted.
Confirm both DI801 and order number 3BSE020508R1, hardware revision, installed controller and I/O configuration. Match signal range, channel wiring, termination unit and keying. Confirm redundancy or safety requirements against the OEM system documentation; related modules are not automatically interchangeable.
Other parts in the ABB S800L I/O family
Listed for reference. They differ from the 3BSE020508R1 in rating, supply, interface or function and are not interchangeable with it unless ABB says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| ABB 3BSE020512R1 AI801AI801 analog input module | Analog input module | To be confirmed | On Request | On request | View |
| ABB 3BSE020514R1 AO801AO801 analog output module | Analog output module | To be confirmed | On Request | On request | View |
| ABB 3BSE022360R1 DI802DI802 digital input module | Digital input module | To be confirmed | On Request | On request | View |
| ABB 3BSE022362R1 DI803DI803 digital input module | Digital input module | To be confirmed | On Request | On request | View |
| ABB 3BSE020510R1 DO801DO801 digital output module | Digital output module | To be confirmed | On Request | On request | View |
| ABB 3BSE022364R1 DO802DO802 digital output module | Digital output module | To be confirmed | On Request | On request | View |
You may also be interested in
ABB
ABB 3BSE013228R1 DP820
View
ABB

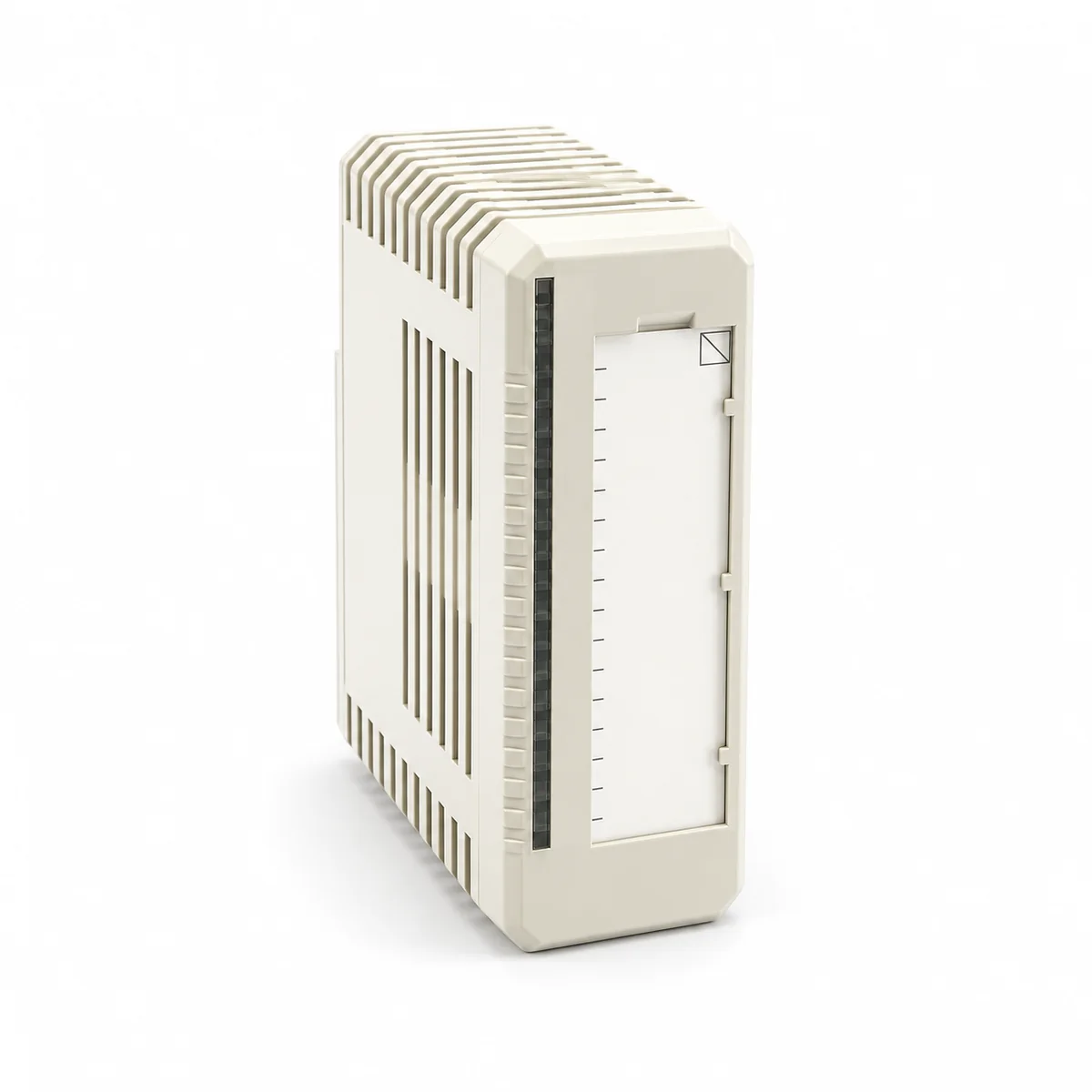

ABB 3BSE028926R1 DP840
View
ABB
ABB 3BSE008516R1 AI810
View
ABB

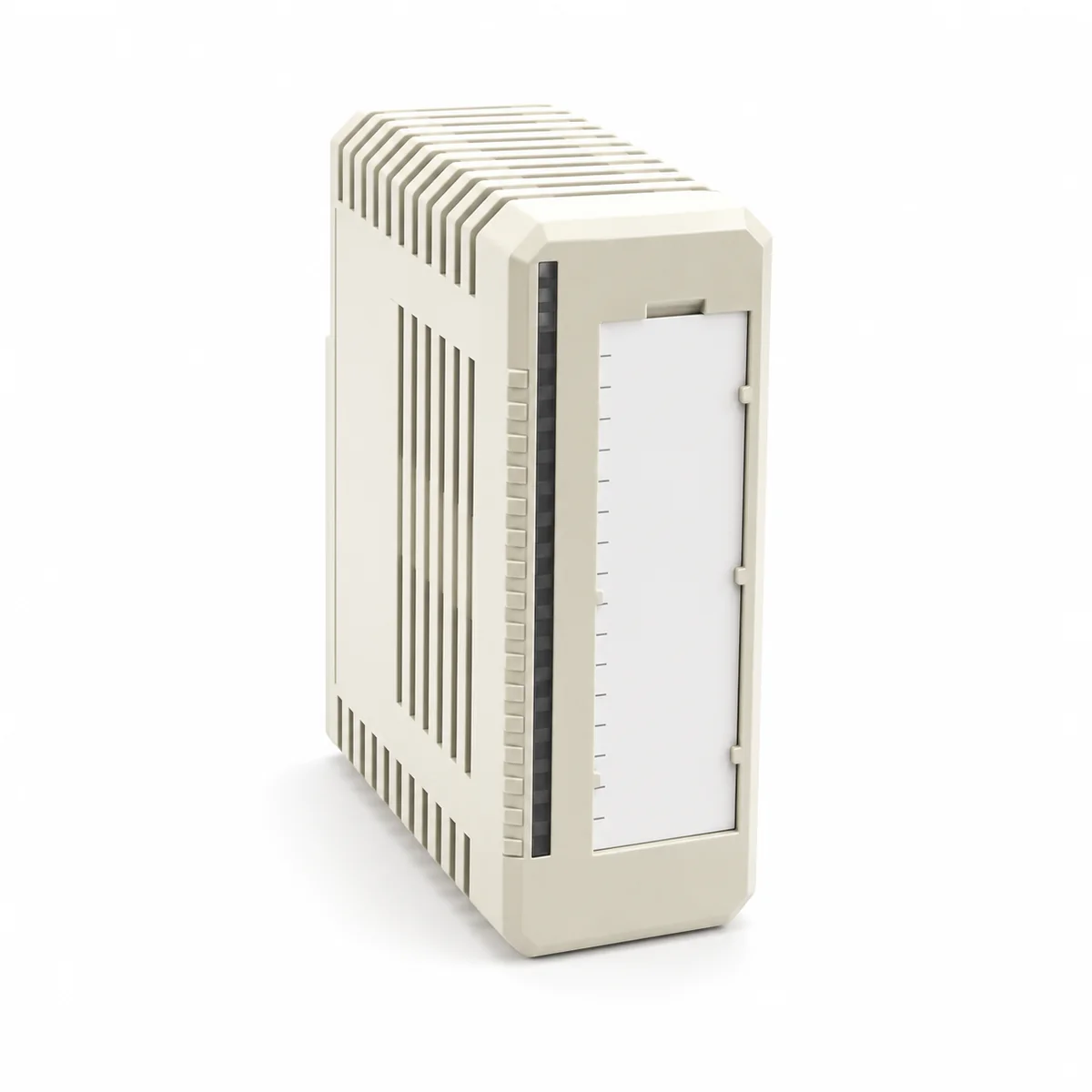

ABB 3BSE052604R1 AI815
View
ABB
ABB 3BSE008544R1 AI820
View
ABB

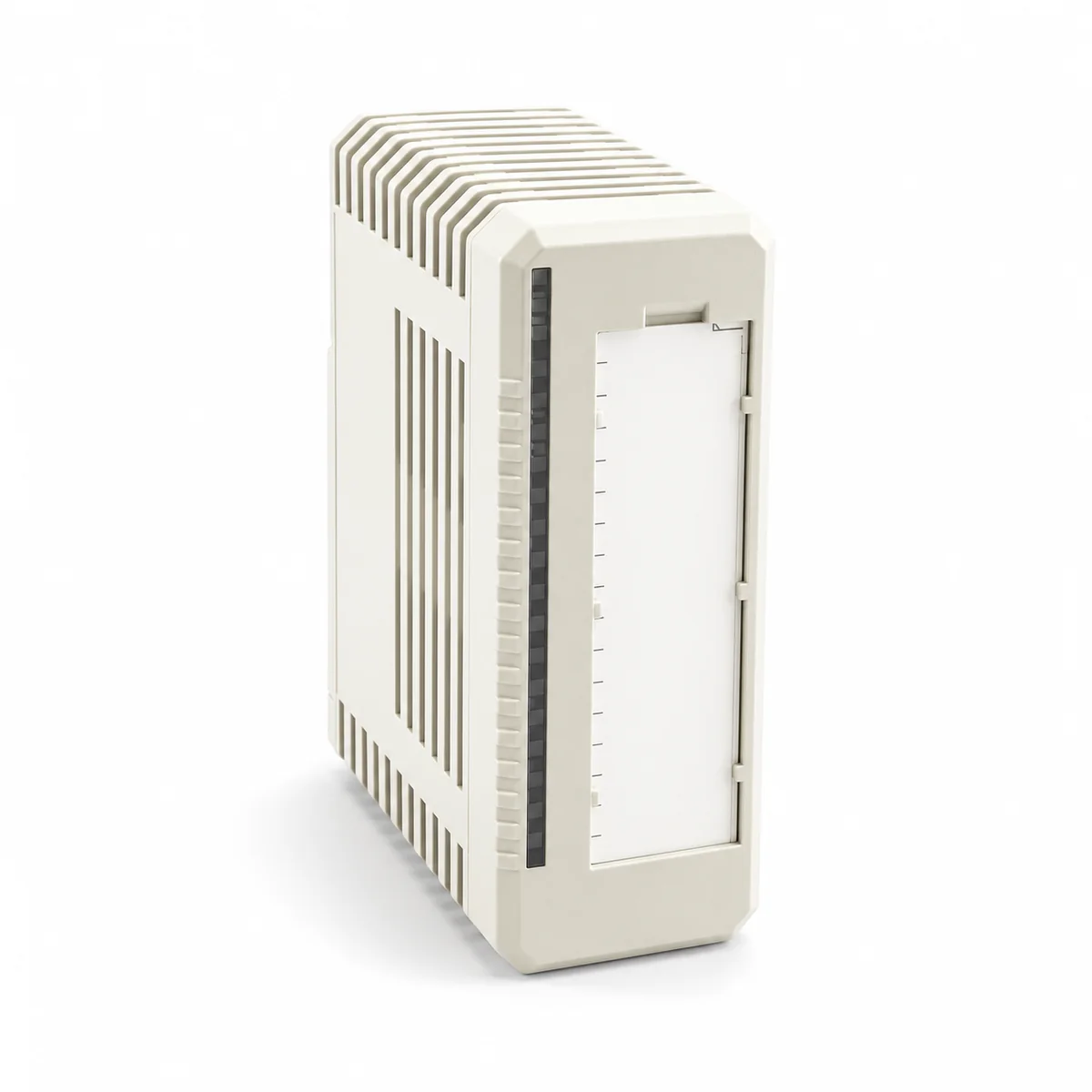

ABB 3BSE036456R1 AI825
View
ABB

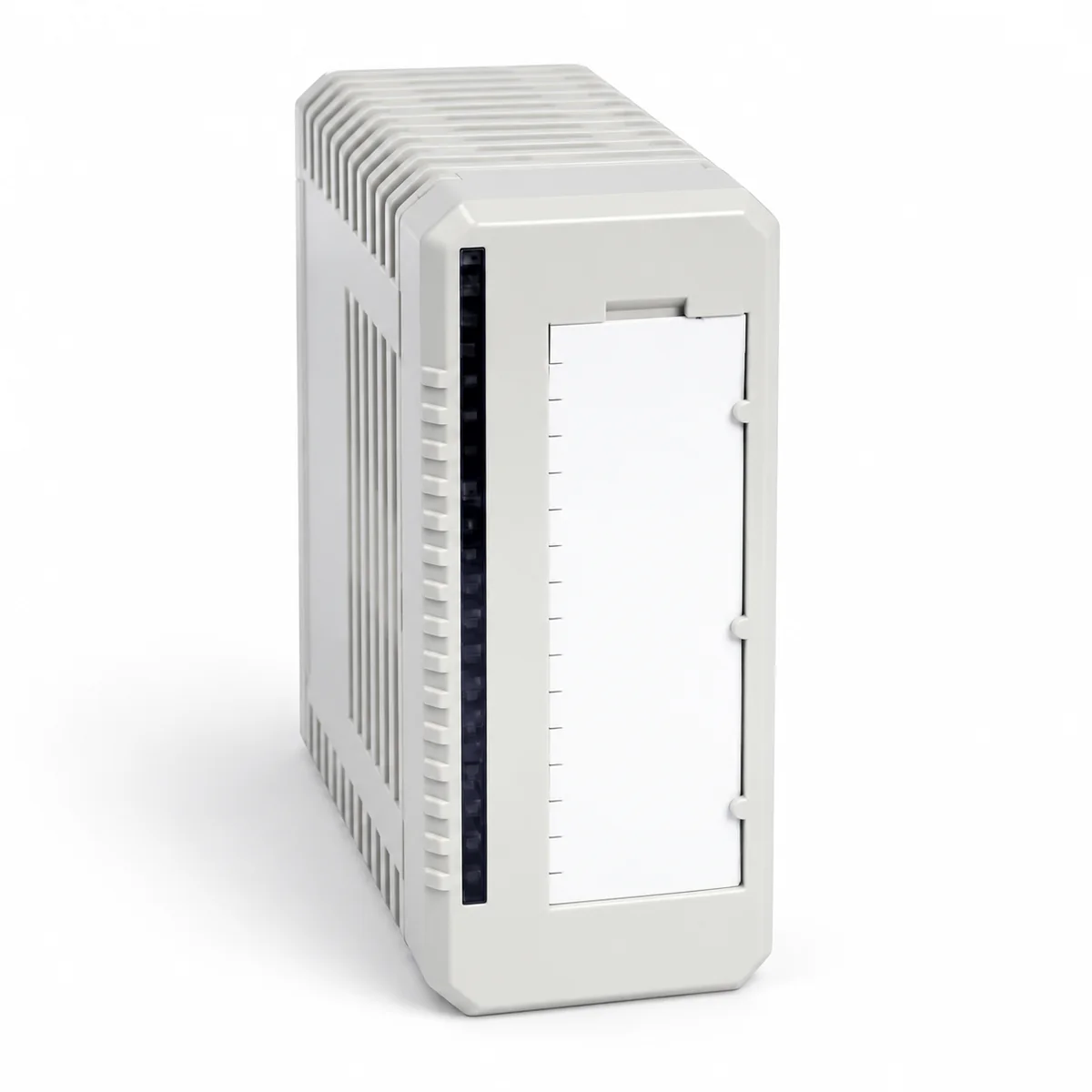

ABB 3BSE040662R1 AI830A
View
ABB

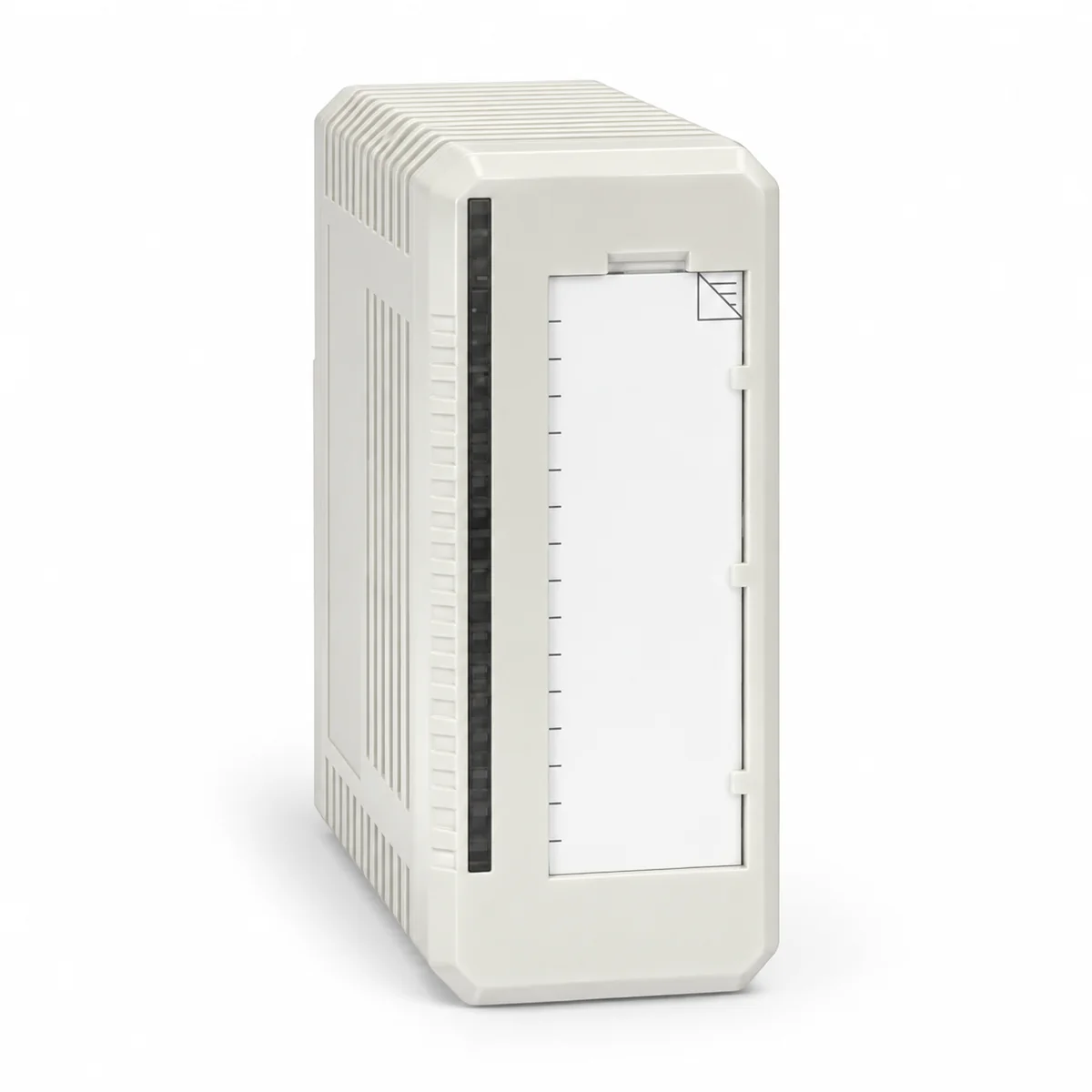

ABB 3BSE051306R1 AI835A
View
ABB

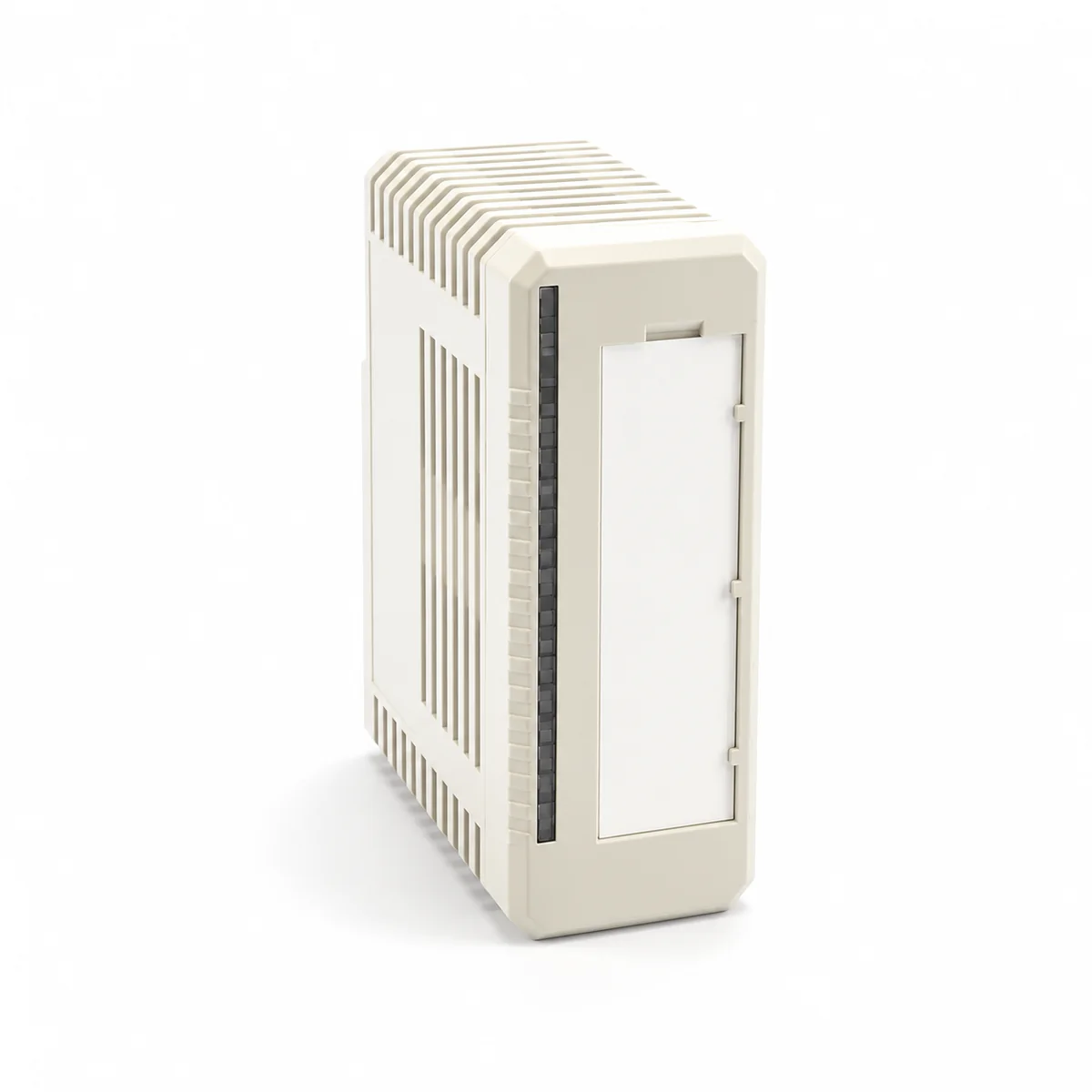

ABB 3BSE028925R1 AI843
View
ABB

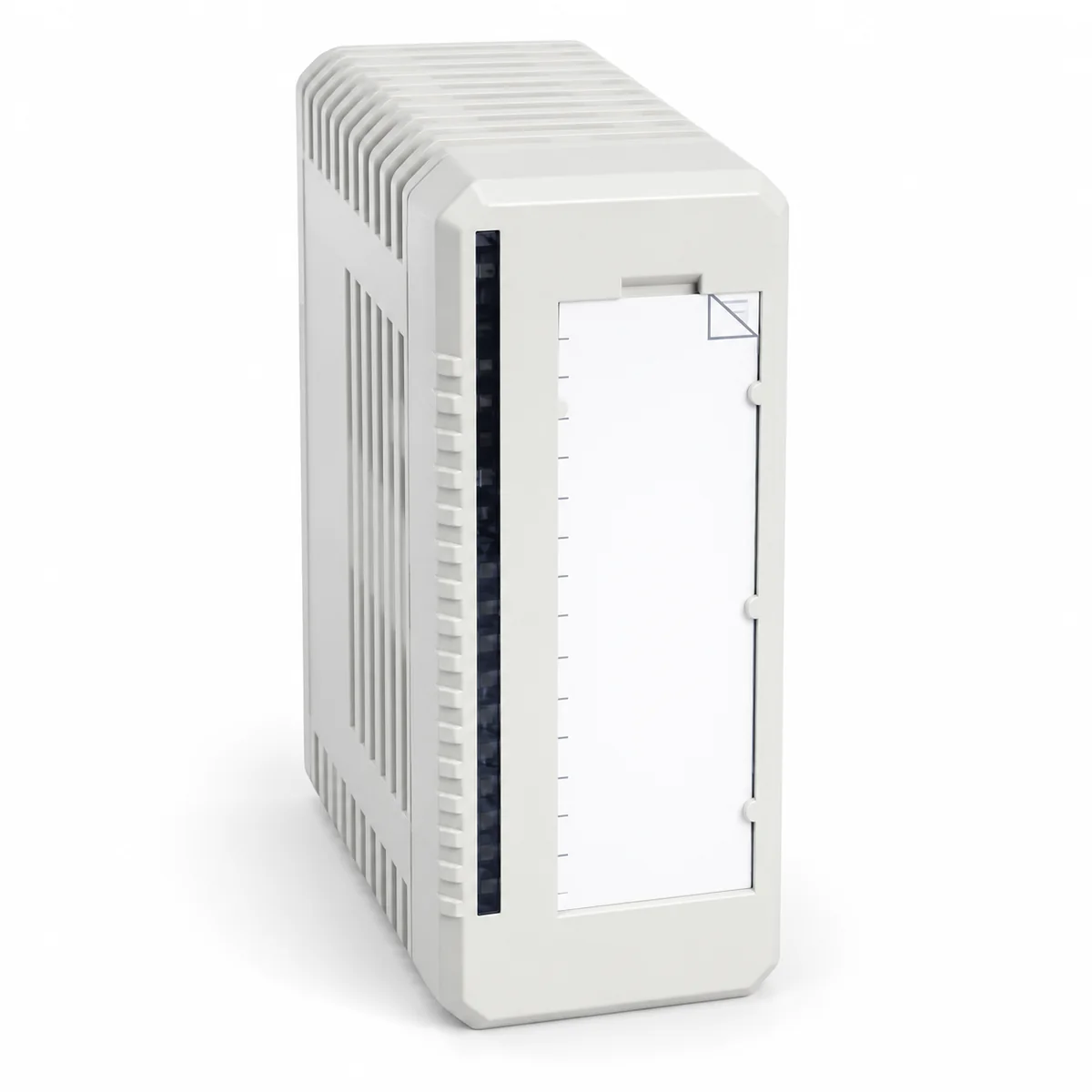

ABB 3BSE023675R1 AI845
View
ABB

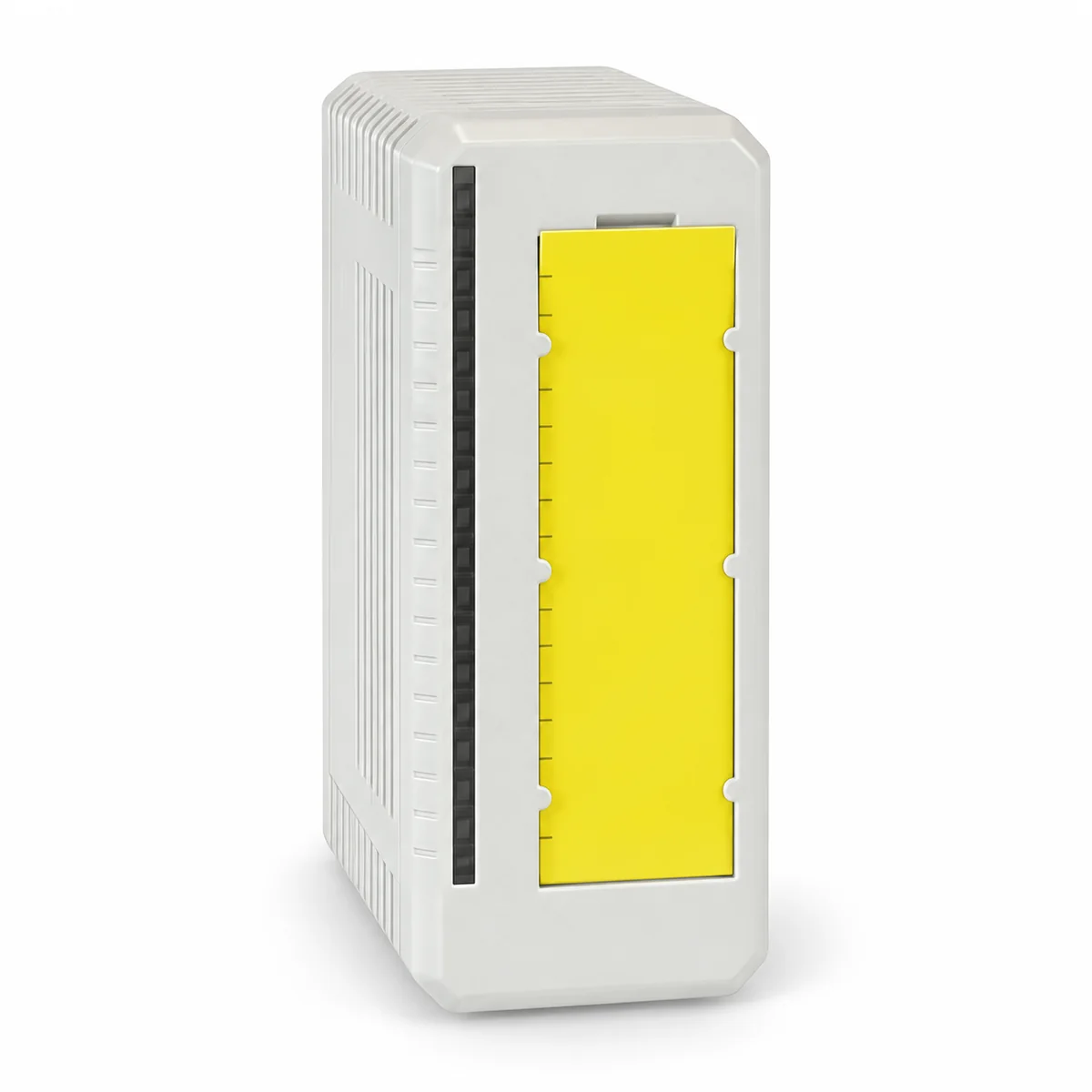

ABB 3BSE039293R1 AI880A
