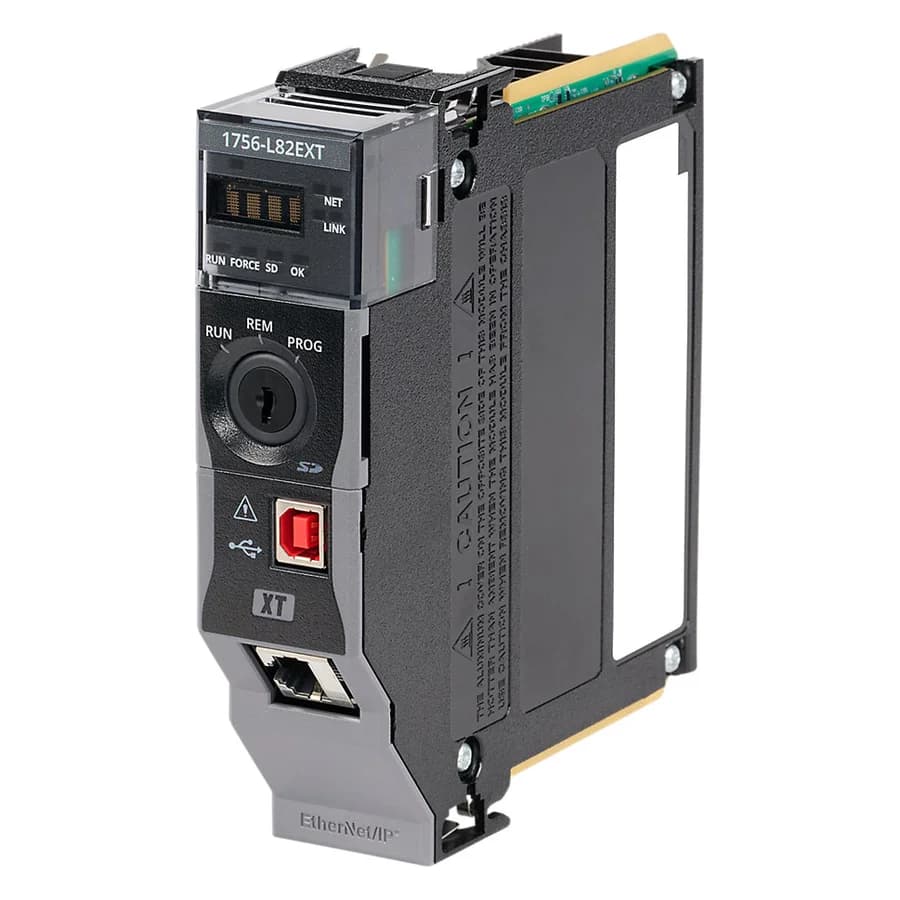

1756-L82EXT

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1756-L82EXT

Type

ControlLogix controller

Application

PLC controller

Used with

ControlLogix 1756 chassis

Controller tasks

32 tasks, including a combination of one continuous, periodic, and event tasks 1000 programs/task

Built-in communication ports

1-port USB, Embedded Ethernet port

USB port communication

USB 2.0, Full speed (12 Mbps), Programming, configuration, firmware update, and online edits only

Ethernet performance

10/100/1000 Mbps

I/O Capacity (Class 0/1) - packets/second

128,000 without CIP Security 40,000 with integrity 20,000 with integrity and confidentiality

Communication options

EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SERCOS and third-party process and device networks

EtherNet/IP nodes supported max

175 nodes

OPC UA nodes supported max

600 nodes

Network connections per network module

ControlLogix 5580 Controllers front EtherNet/IP port. See ‘EtherNet/IP nodes supported, max’ in this table. 1000 I/O; 528 EtherNet/IP; 512 TCP (1756-EN4TR variant rated for harsh environments) 256 EtherNet/IP; 128 TCP (1756-EN2x variant rated for harsh environments) 128 EtherNet/IP; 64 TCP (1756-ENBT variant rated for harsh environments) 100 ControlNet (1756-CN2/A variant rated for harsh environments) 40 ControlNet (1756-CNB/D, 1756-CNB/E variant rated for harsh environments) 128 ControlNet (1756-CN2/B variant rated for harsh environments)

Integrated motion

SERCOS interface, Analog options (encoder input, LDT input, SSI input), Integrated Motion on the EtherNet/IP network

Controller redundancy

Full support with Studio 5000 Logix Designer application version 33.00.02 or later

Programming languages

Relay ladder logic (RLL), Structured text, Function Block Diagram, Sequential function chart (SFC)

Standard memory

5 MB

Digital I/O, max

128,000

Analog I/O, max

4000

Nonvolatile memory storage

4 GB Secure Digital (SD) card (1784-SD4XT), ships pre-installed in the controller

Energy storage module

Embedded in controller, non-removable

Number of power cycles

80,000

Current draw @ 1.2V DC

5.0 mA

Current draw @ 5.1V DC

1.20 A

Power dissipation

6.2 W

Thermal dissipation

21.2 BTU/hr

Isolation voltage

50V (continuous), Basic Insulation type, USB port to backplane, Ethernet port to backplane, and USB port to Ethernet port, Compliant and tested according to IEC/UL 61010-1

Weight, approx

0.394 kg (.868 lb)

Slot width

1

Technical documents (1)

• Rockwell Automation technical data 1756-TD001

Key features

• Conformally coated for extreme environment use
• Embedded Ethernet port at 10/100/1000 Mbps
• USB 2.0 port for programming and firmware update
• Supports Integrated Motion on the EtherNet/IP network
• 4 GB SD card ships pre-installed in the controller

About the Allen-Bradley 1756-L82EXT

The Allen-Bradley 1756-L82EXT is a ControlLogix 5580 XT Controller, described by Rockwell Automation as an eXTreme Environment controller with 5 MB user memory and 175 EtherNet/IP devices, conformally coated. Rockwell lists its lifecycle status as Active. Rockwell's technical data gives 32 tasks, a maximum of 128,000 digital I/O and 4000 analog I/O, and an operating temperature of -25 °C to +70 °C. It is a one-slot, chassis-based module that Rockwell lists for the 1756-A7XT, 1756-A10XT, Series C 1756-A7ZXT and 1756-A10ZXT chassis.

What is the 1756-L82EXT used for?

The 1756-L82EXT runs control programs in a ControlLogix chassis and can be programmed in relay ladder logic, structured text, function block diagram or sequential function chart. Rockwell lists EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O and SERCOS among its communication options. It also supports controller redundancy with Studio 5000 Logix Designer application version 33.00.02 or later.

Lifecycle and successor

Active.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1756-L82EXT, the series letter and the firmware revision on the module label before ordering. Send us a photo of the label and we will confirm the details with you.
