1756-L63

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1756-L63

Type

ControlLogix controller

Application

PLC controller

Used with

ControlLogix 1756 chassis

Controller family

ControlLogix 5560

Memory for data and logic

8 MB

I/O memory

478 KB

Back-up memory

CompactFlash card (optional, does not come with the controller)

Controller tasks

32 tasks; 100 programs/task; event tasks: all event triggers

Communication ports

1 port, RS-232 serial

Communication options

EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink, third-party process and device networks

Serial port communication

ASCII; DF1 full/half-duplex; DF1 radio modem; DH-485; Modbus via logic

Controller connections supported, max

250

Network connections, per network module

128 ControlNet (1756-CN2/B); 100 ControlNet (1756-CN2/A); 40 ControlNet (1756-CNB); 256 EtherNet/IP, 128 TCP (1756-EN2x); 128 EtherNet/IP, 64 TCP (1756-ENBT)

Controller redundancy

Full support except for motion applications

Integrated motion

Integrated Motion on the EtherNet/IP network; Sercos interface; analog options: encoder input, LDT input, SSI input

Programming languages

Relay ladder; structured text; function block; sequential function chart (SFC)

Clock support and memory retention at power-down

Battery

Status indicators

Six status indicators

Unconnected buffer defaults

10 (40, max)

Minimum programming software

Series A: RSLogix 5000 version 10.07.00 or later (11.16.00 or later with a CompactFlash card); series B: version 13.04.00 or later

Technical documents (1)

• Rockwell Automation publication 1756-UM001 (ControlLogix 5570 and 5560 controllers)

Key features

• 32 tasks with 100 programs per task
• Ladder, structured text, function block and SFC programming
• Optional CompactFlash card for back-up memory
• Battery for clock support and memory retention at power-down
• Full redundancy support except for motion applications

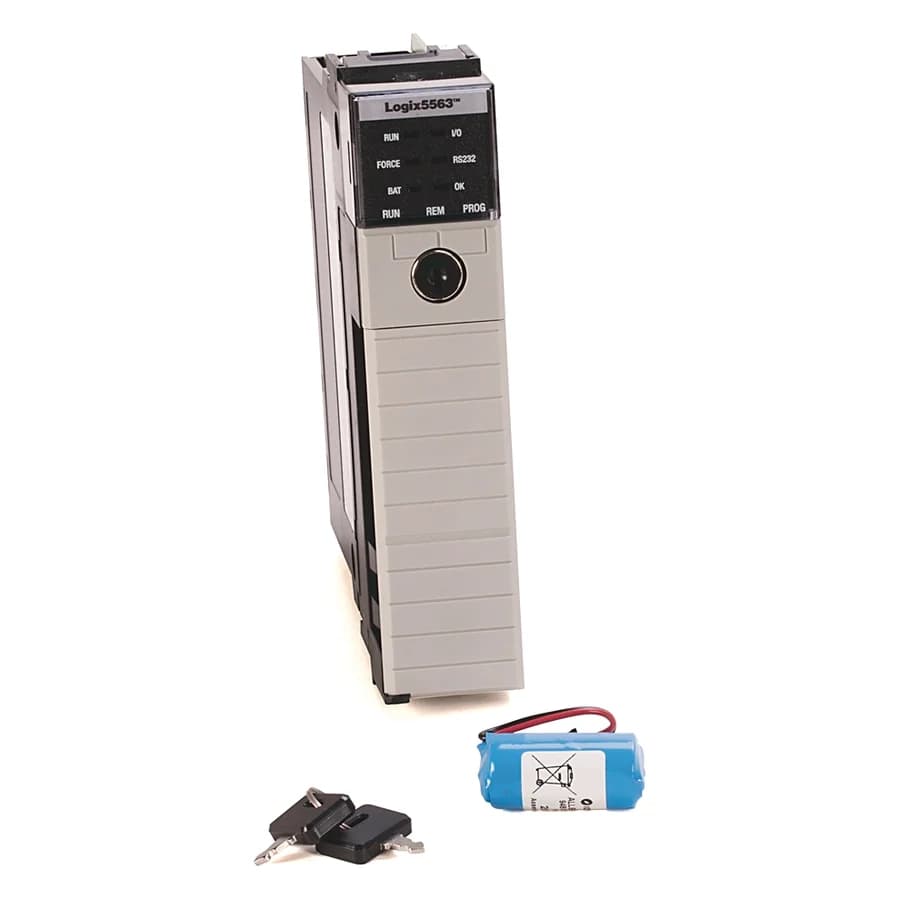

About the Allen-Bradley 1756-L63

The Allen-Bradley 1756-L63 is the ControlLogix 8 MB Memory Controller, a ControlLogix 5560 family controller that Rockwell lists as Discontinued. According to Rockwell publication 1756-UM001, it has 8 MB of memory for data and logic, 478 KB of I/O memory and supports a maximum of 250 controller connections. The same publication lists one RS-232 serial port, six status indicators and a battery for clock support and memory retention at power-down. Back-up memory is an optional CompactFlash card, which does not come with the controller.

What is the 1756-L63 used for?

The 1756-L63 is the controller in a ControlLogix system. It runs programs written in relay ladder, structured text, function block or sequential function chart. It connects to EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink and third-party process and device networks, and supports Integrated Motion on the EtherNet/IP network and a Sercos interface. Its serial port supports ASCII, DF1, DH-485 and Modbus via logic.

Lifecycle and successor

Discontinued.

Before you order

What to photograph or confirm so the right unit is quoted.

Check that the module label shows catalog number 1756-L63, and note the series letter and firmware revision. Series A and series B have different minimum RSLogix 5000 versions, so please send us a photo of the label.
