Siemens 6ES7322-1BF01-0AA0
SM 322 digital output, 8 DO, 24 V DC, 2 A
Image is for illustrative purposes only. Please refer to product description.
Delivery options
Siemens SIMATIC S7-300 SM 322 digital output module: 8 isolated outputs, 24 V DC, 2 A each, in groups of 4, one 20-pole front connector.
- Manufacturer
- Siemens
- Manufacturer part no.
- 6ES7322-1BF01-0AA0
- Product family
- SIMATIC S7-300 PLC Modules
- Type
- Digital output module
- Category
- PLCs and I/O › Digital I/O modules
- Lifecycle
- Discontinued
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- Siemens
- Manufacturer part no.
- 6ES7322-1BF01-0AA0
- Type
- Digital output module
- Application
- Digital output module
- Used with
- SIMATIC S7-300 rack (S7-300 backplane bus)
- Load voltage L+ / Rated value (DC)
- 24 V
- Load voltage L+ / permissible range, lower limit (DC)
- 20.4 V
- Load voltage L+ / permissible range, upper limit (DC)
- 28.8 V
- Input current / from load voltage L+ (without load), max.
- 60 mA
- Input current / from backplane bus 5 V DC, max.
- 40 mA
- Power loss, typ.
- 6.8 W
- Number of digital outputs
- 8
- Digital outputs / Short-circuit protection
- Yes; Electronic
- Short-circuit protection / Response threshold, typ.
- 3 A
- Digital outputs / Limitation of inductive shutdown voltage to
- L+ (-48 V)
- Controlling a digital input
- Yes
- Switching capacity of the outputs / on lamp load, max.
- 10 W
- Load resistance range / lower limit
- 12 Ω
- Load resistance range / upper limit
- 4 kΩ
- Output voltage / for signal "1", min.
- L+ (-0.8 V)
- Output current / for signal "1" rated value
- 2 A
- Output current / for signal "1" permissible range for 0 to 40 °C, min.
- 5 mA
- Output current / for signal "1" permissible range for 0 to 40 °C, max.
- 2.4 A
- Output current / for signal "1" permissible range for 40 to 60 °C, min.
- 5 mA
- Output current / for signal "1" permissible range for 40 to 60 °C, max.
- 2.4 A
- Output current / for signal "1" minimum load current
- 5 mA
- Output current / for signal "0" residual current, max.
- 0.5 mA
- Output delay with resistive load / "0" to "1", max.
- 100 µs
- Output delay with resistive load / "1" to "0", max.
- 500 µs
- Parallel switching of two outputs / for uprating
- No
Show all 59 specificationsShow fewer
- Parallel switching of two outputs / for redundant control of a load
- Yes
- Switching frequency / with resistive load, max.
- 100 Hz
- Switching frequency / with inductive load, max.
- 0.5 Hz
- Switching frequency / with inductive load (acc. to IEC 60947-5-1, DC13), max.
- 0.5 Hz
- Switching frequency / on lamp load, max.
- 10 Hz
- Total current of the outputs (per group) / horizontal installation / up to 40 °C, max.
- 4 A
- Total current of the outputs (per group) / horizontal installation / up to 60 °C, max.
- 4 A
- Total current of the outputs (per group) / vertical installation / up to 40 °C, max.
- 4 A
- Cable length / shielded, max.
- 1 000 m
- Cable length / unshielded, max.
- 600 m
- Interrupts/diagnostics/status information / Alarms
- No
- Interrupts/diagnostics/status information / Diagnostics function
- No
- Alarms / Diagnostic alarm
- No
- Diagnoses / Wire break
- No
- Diagnoses / Short-circuit
- No
- Diagnoses / Fuse blown
- No
- Diagnoses / Missing load voltage
- No
- Diagnostics indication LED / Rated load voltage PWR (green)
- No
- Diagnostics indication LED / Fuse OK FSG (green)
- No
- Diagnostics indication LED / Status indicator digital output (green)
- Yes; per channel
- Potential separation digital outputs / between the channels
- Yes
- Potential separation digital outputs / between the channels, in groups of
- 4
- Potential separation digital outputs / between the channels and backplane bus
- Yes; Optocoupler
- Isolation tested with
- 500 V DC
- required front connector
- 20-pin
- Width
- 40 mm
- Height
- 125 mm
- Depth
- 120 mm
- Weight, approx.
- 190 g
Technical documents (1)
Key features
- 8 digital outputs, 24 V DC, 2 A each
- Electronic short-circuit protection
- Isolated in groups of 4, up to 4 A per group
- Up to 100 Hz with resistive load; lamp load up to 10 W
- Discontinued by Siemens on 1 October 2025; spare part only
About the Siemens 6ES7322-1BF01-0AA0
The Siemens 6ES7322-1BF01-0AA0 is the high-current SM 322: 8 outputs at 2 A each, where the 6ES7322-8BF00-0AB0 gives 8 outputs at 0.5 A with diagnostics. Siemens's data sheet gives a 24 V DC load voltage (20.4 to 28.8 V), electronic short-circuit protection, two groups of 4 outputs at up to 4 A per group, and no diagnostics. Siemens's data sheet marks it as a spare part.
What is the 6ES7322-1BF01-0AA0 used for?
It switches 24 V DC loads of up to 2 A, such as valves, contactor coils and lamps, from an S7-300 CPU.
Lifecycle and successor
Discontinued.
Before you order
What to photograph or confirm so the right unit is quoted.
Check the order number on the module: 1BF01 for 2 A outputs, 8BF00 for 0.5 A outputs with diagnostics.
Other parts in the Siemens SIMATIC S7-300 family
Listed for reference. They differ from the 6ES7322-1BF01-0AA0 in rating, supply, interface or function and are not interchangeable with it unless Siemens says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| Siemens 6ES7322-1BL00-0AA0SM 322 digital output, 32 DO, 24 V DC, 0.5 A | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7322-1BH01-0AA0SM 322 digital output, 16 DO, 24 V DC, 0.5 A | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7322-1HH01-0AA0SM 322 relay output, 16 DO, relay contacts | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7321-1FH00-0AA0SM 321 digital input, 16 DI, 120/230 V AC | Digital input module | Discontinued | On Request | On request | View |
| Siemens 6ES7322-1FH00-0AA0SM 322 digital output, 16 DO, 120/230 V AC, 1 A | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7322-1HF01-0AA0SM 322 relay output, 8 DO, relay contacts | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7321-7BH01-0AB0SM 321 digital input, 16 DI, 24 V DC, diagnostics and hardware interrupt | Digital input module | Discontinued | On Request | On request | View |
| Siemens 6ES7321-1BH50-0AA0SM 321 digital input, 16 DI, 24 V DC, sourcing input | Digital input module | Discontinued | On Request | On request | View |
| Siemens 6ES7321-1FF01-0AA0SM 321 digital input, 8 DI, 120/230 V AC | Digital input module | Discontinued | On Request | On request | View |
| Siemens 6ES7322-8BF00-0AB0SM 322 digital output, 8 DO, 24 V DC, 0.5 A, diagnostics | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7322-1HF10-0AA0SM 322 relay output, 8 DO, 5 A, isolated per channel | Digital output module | Discontinued | On Request | On request | View |
| Siemens 6ES7323-1BH01-0AA0SM 323 digital I/O, 8 DI and 8 DO, 24 V DC, 0.5 A | Digital I/O module | Discontinued | On Request | On request | View |
You may also be interested in
Siemens
Siemens 6ES7422-7BL00-0AB0
View
Siemens
Siemens 6ES7422-1FH00-0AA0
View
Siemens
Siemens 6ES7422-1HH00-0AA0
View
Siemens
Siemens 6ES7431-1KF00-0AB0
View
Siemens
Siemens 6ES7431-1KF10-0AB0
View
Siemens
Siemens 6ES7431-1KF20-0AB0
View
Siemens

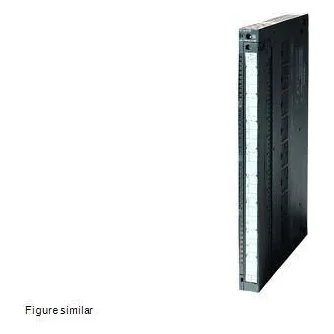

Siemens 6ES7431-7QH00-0AB0
