- Manufacturer
- Allen-Bradley
- Manufacturer part number
- 1747-L532
- Product family
- SLC 500 Processors (1747)
- Category
- PLCs and I/O › CPU and processor modules
- Technical datasheet
- Data sheet
Specifications
| Attribute | Value |
|---|---|
| Type | SLC 500 processor |
| Manufacturer lifecycle | Discontinued |
| Processor | SLC 5/03 |
| Memory (words) | 16 K |
| I/O capacity, max | 4096 discrete inputs/4096 discrete outputs |
| Local system, max | 3 chassis / 30 slots |
| Programming instructions | 107 |
| Typical scan time | 1 ms/K (typical for a 1 K ladder logic program) |
| Bit execution (XIC) | 0.44 µs |
| Programming software | RSLogix 500 |
| Communication options | DH485; RS-232 (DF1 full-duplex, DF1 half-duplex master/slave, DF1 radio modem, DH-485 or ASCII); Data Highway Plus through a ControlLogix gateway; Ethernet TCP/IP through a 1761-NET-ENI interface; ControlNet through a 1747-KFC15; DeviceNet through a 1761-NET-DNI |
| Power supply loading at 5V dc | 500 mA |
| Power supply loading at 24V dc | 175 mA |
| Program scan hold-up time after loss of power | 20 ms...3 s (dependent on power supply loading) |
| Noise immunity | NEMA Standard ICS 2-230 |
Show all 20 specificationsShow fewer specifications
| Vibration | Displacement: 0.015 in., peak-to-peak at 5-57 Hz; Acceleration: 2.5 g at 57...2000 Hz |
|---|---|
| Shock, operating | 30 g |
| Ambient temperature rating, operating | 0...60 °C (32...140 °F) |
| Ambient temperature rating, storage | -40...85 °C (-40...185 °F) |
| Humidity | 5 to 95% without condensation |
Description

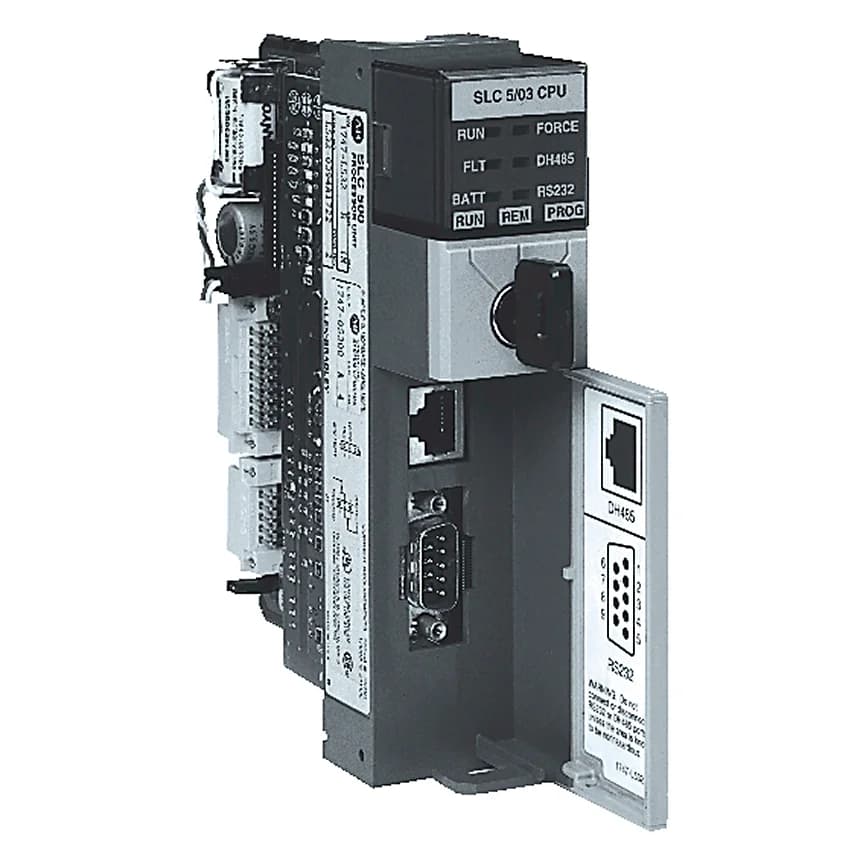

The Allen-Bradley 1747-L532 is the SLC 5/03 16K Controller, which Rockwell Automation lists with the lifecycle status Discontinued. According to Rockwell publication 1747-IN009, it has 16 K words of memory, a maximum I/O capacity of 4096 discrete inputs and 4096 discrete outputs, and a local system of up to 3 chassis / 30 slots. The publication gives 107 programming instructions, a typical scan time of 1 ms/K for a 1 K ladder logic program, and a bit execution time (XIC) of 0.44 µs. Power supply loading is 500 mA at 5V dc and 175 mA at 24V dc.
Application: PLC controller
Used with: SLC 500 1746 chassis
What is the 1747-L532 used for?
The processor holds and runs the user program in an SLC 500 system, using the 107 instructions and RSLogix 500 as the programming software. It communicates over DH485 or RS-232 (DF1 full-duplex, DF1 half-duplex master/slave, DF1 radio modem, DH-485 or ASCII), and Rockwell lists further network options through separate interface modules. Rockwell rates it for operation at 0...60 °C and 5 to 95% humidity without condensation, with noise immunity to NEMA Standard ICS 2-230.
Key features
- SLC 5/03 processor with 16 K words of memory
- Up to 4096 discrete inputs and 4096 discrete outputs
- Local system of up to 3 chassis / 30 slots
- 107 programming instructions, programmed with RSLogix 500
- DH485 and RS-232 communication including several DF1 modes
Associated Products
| Image | Product | Description | Stock | View | Add to RFQ |
|---|---|---|---|---|---|
![]() | 1747-L533Allen-Bradley | SLC 5/03 32K processor, DH485 and RS-232 | In stock | View | |
![]() | 1747-L541Allen-Bradley | SLC 5/04 controller with 16 K words memory | In stock | View | |
![]() | 1747-L542Allen-Bradley | SLC 5/04 32K Controller for SLC 500 | In stock | View | |
![]() | 1747-L543Allen-Bradley | SLC 5/04 64K controller, RSLogix 500 programmed | In stock | View | |
![]() | 1747-L551Allen-Bradley | SLC 5/05 16K controller with Ethernet | In stock | View | |
![]() | 1747-L552Allen-Bradley | SLC 5/05 32K processor with Ethernet | In stock | View | |
![]() | 1747-L553Allen-Bradley | SLC 5/05 64K controller with Ethernet | In stock | View |
Product Questions
Is the 1747-L532 discontinued?
Yes. Its manufacturer lifecycle status is Discontinued.
