1747-L552

Technical specifications

Manufacturer

Allen-Bradley

Manufacturer part no.

1747-L552

Type

SLC 500 processor

Application

PLC controller

Used with

SLC 500 1746 chassis

Processor

SLC 5/05

Memory (words)

32 K

I/O capacity, max

4096 discrete inputs/4096 discrete outputs

Local system, max

3 chassis / 30 slots

Programming instructions

107

Typical scan time

0.9 ms/K (typical for a 1 K ladder logic program)

Bit execution (XIC)

0.37 µs

Programming software

RSLogix 500

Communication options

DH485; RS-232 (DF1 full-duplex, DF1 half-duplex master/slave, DF1 radio modem, DH-485 or ASCII); Ethernet TCP/IP; Data Highway Plus through a ControlLogix gateway; ControlNet through a 1747-KFC15; DeviceNet through a 1761-NET-DNI

Power supply loading at 5V dc

1.0 A

Power supply loading at 24V dc

0 mA

Program scan hold-up time after loss of power

20 ms...3 s (dependent on power supply loading)

Noise immunity

NEMA Standard ICS 2-230

Vibration

Displacement: 0.015 in., peak-to-peak at 5-57 Hz; Acceleration: 2.5 g at 57...2000 Hz

Shock, operating

30 g

Ambient temperature rating, operating

0...60 °C (32...140 °F)

Ambient temperature rating, storage

-40...85 °C (-40...185 °F)

Humidity

5 to 95% without condensation

Technical documents (1)

• Rockwell Automation publication 1747-IN009 (specifications)

Key features

• 32 K words of program memory
• Up to 4096 discrete inputs and 4096 discrete outputs
• Ethernet TCP/IP, DH485 and RS-232 communication options
• 107 programming instructions, programmed with RSLogix 500
• Typical scan time of 0.9 ms/K for a 1 K ladder program

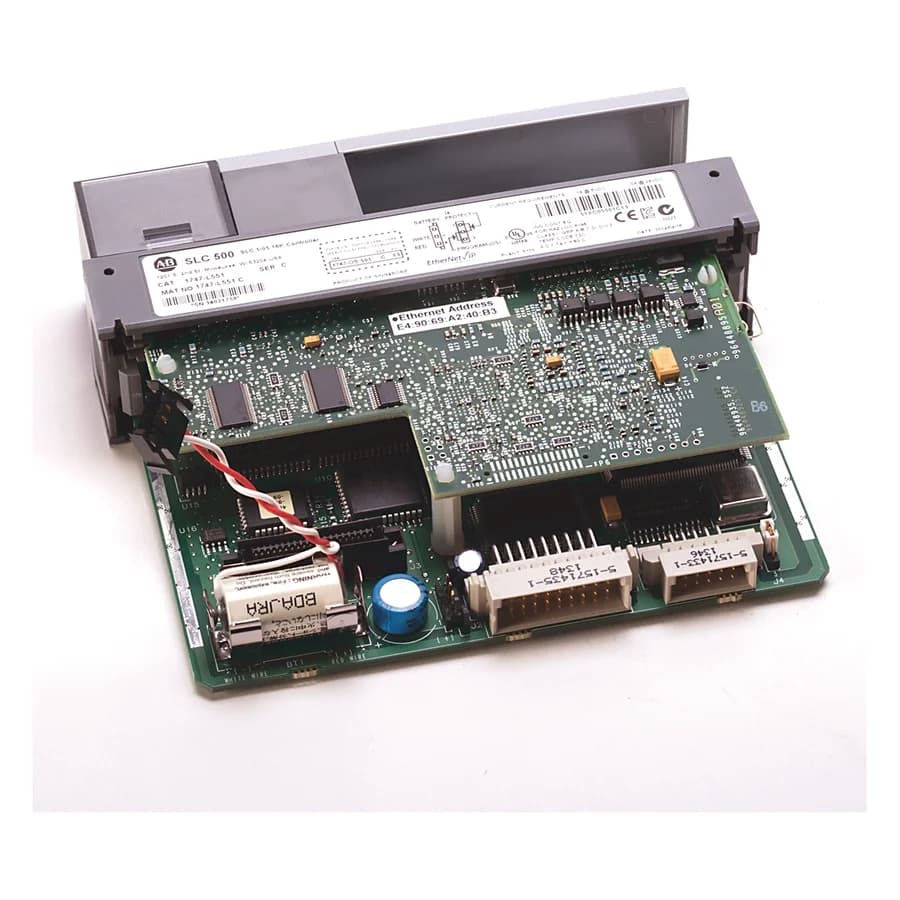

About the Allen-Bradley 1747-L552

The Allen-Bradley 1747-L552 is the SLC 5/05 32K Controller, a processor with 32 K words of memory. Rockwell Automation publication 1747-IN009 gives a maximum I/O capacity of 4096 discrete inputs and 4096 discrete outputs, and a local system of up to 3 chassis and 30 slots. The same publication lists 107 programming instructions, a typical scan time of 0.9 ms/K for a 1 K ladder logic program, and bit execution (XIC) of 0.37 µs. Rockwell lists the lifecycle status as Discontinued, and the processor is programmed with RSLogix 500.

What is the 1747-L552 used for?

The 1747-L552 is the processor in an SLC 500 system. It runs the ladder logic program and handles the discrete inputs and outputs in the local chassis, and it communicates over DH485, RS-232 (DF1, DH-485 or ASCII) and Ethernet TCP/IP. Rockwell's publication 1747-IN009 rates it for operation at 0...60 °C (32...140 °F) and 5 to 95% humidity without condensation, which sets the conditions of the installation.

Lifecycle and successor

Discontinued.

Before you order

What to photograph or confirm so the right unit is quoted.

Check the catalog number 1747-L552 and the series letter and firmware revision on the module label. Send us a photo of the label so we can confirm the match before you order.
