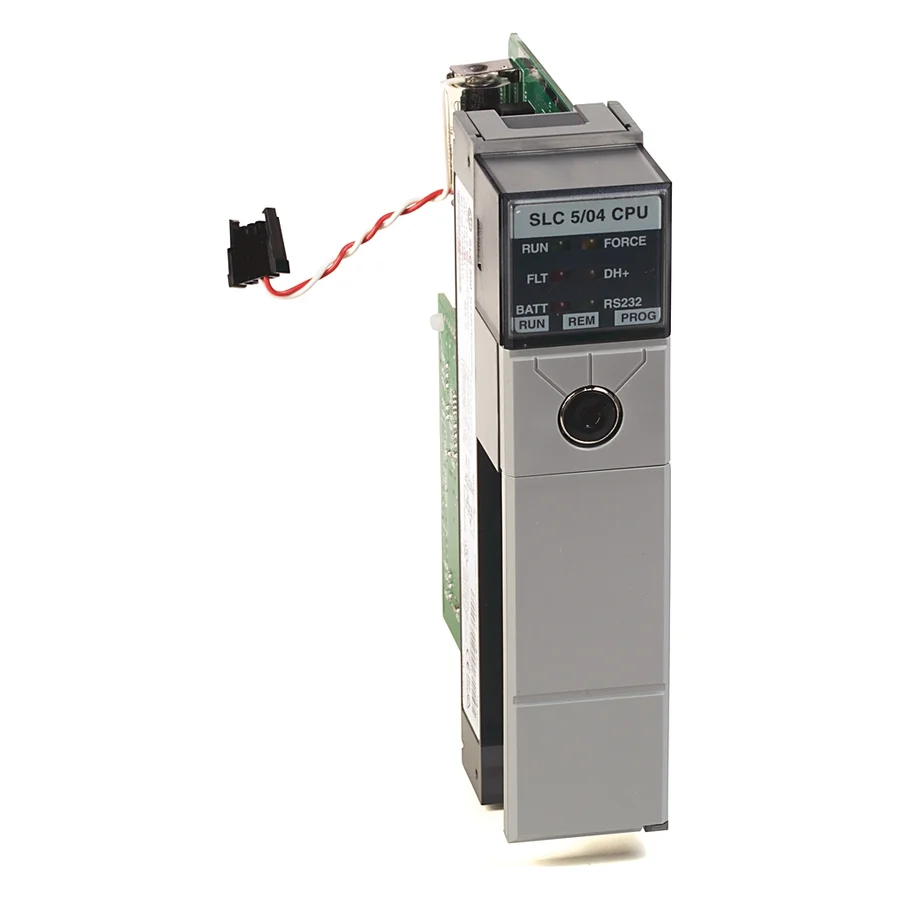

Image is for illustrative purposes only. Please refer to product description.
- Manufacturer
- Allen-Bradley
- Manufacturer part number
- 1747-L541
- Product family
- SLC 500 Processors (1747)
- Category
- PLCs and I/O › CPU and processor modules
- Technical datasheet
- Data sheet
Specifications
| Attribute | Value |
|---|---|
| Type | SLC 500 processor |
| Manufacturer lifecycle | Discontinued |
| Processor | SLC 5/04 |
| Memory (words) | 16 K |
| I/O capacity, max | 4096 discrete inputs/4096 discrete outputs |
| Local system, max | 3 chassis / 30 slots |
| Programming instructions | 107 |
| Typical scan time | 0.9 ms/K (typical for a 1 K ladder logic program) |
| Bit execution (XIC) | 0.37 µs |
| Programming software | RSLogix 500 |
| Communication options | DH485; RS-232 (DF1 full-duplex, DF1 half-duplex master/slave, DF1 radio modem, DH-485 or ASCII); Data Highway Plus; Ethernet TCP/IP through a 1761-NET-ENI interface; ControlNet through a 1747-KFC15; DeviceNet through a 1761-NET-DNI |
| Power supply loading at 5V dc | 1.0 A |
| Power supply loading at 24V dc | 0 mA (processors made before April 2002 draw 200 mA; check the label) |
| Program scan hold-up time after loss of power | 20 ms...3 s (dependent on power supply loading) |
| Noise immunity | NEMA Standard ICS 2-230 |
Show all 20 specificationsShow fewer specifications
| Vibration | Displacement: 0.015 in., peak-to-peak at 5-57 Hz; Acceleration: 2.5 g at 57...2000 Hz |
|---|---|
| Shock, operating | 30 g |
| Ambient temperature rating, operating | 0...60 °C (32...140 °F) |
| Ambient temperature rating, storage | -40...85 °C (-40...185 °F) |
| Humidity | 5 to 95% without condensation |
Description
The Allen-Bradley 1747-L541 is the SLC 5/04 16K Controller, an SLC 500 processor with 16 K words of memory. Rockwell Automation publication 1747-IN009 gives a maximum I/O capacity of 4096 discrete inputs and 4096 discrete outputs, a local system of up to 3 chassis / 30 slots, and a typical scan time of 0.9 ms/K for a 1 K ladder logic program. The same publication lists a 5V dc power supply loading of 1.0 A and 0 mA at 24V dc, although processors made before April 2002 draw 200 mA, so check the label. Rockwell lists the lifecycle status as Discontinued.
Application: PLC controller
Used with: SLC 500 1746 chassis
What is the 1747-L541 used for?
The processor runs the ladder logic program and controls the I/O in an SLC 500 system, which is built from chassis and slots. It communicates over DH485, RS-232 (DF1, DH-485 or ASCII) and Data Highway Plus, and reaches Ethernet TCP/IP, ControlNet and DeviceNet through the interface modules Rockwell lists. It is programmed with RSLogix 500, and the rated operating temperature is 0...60 °C (32...140 °F).
Key features
- 4096 discrete inputs and 4096 discrete outputs maximum
- Local system of up to 3 chassis / 30 slots
- Supports 107 programming instructions
- Typical scan time 0.9 ms/K, XIC bit execution 0.37 µs
- Ethernet, ControlNet and DeviceNet through separate interface modules
