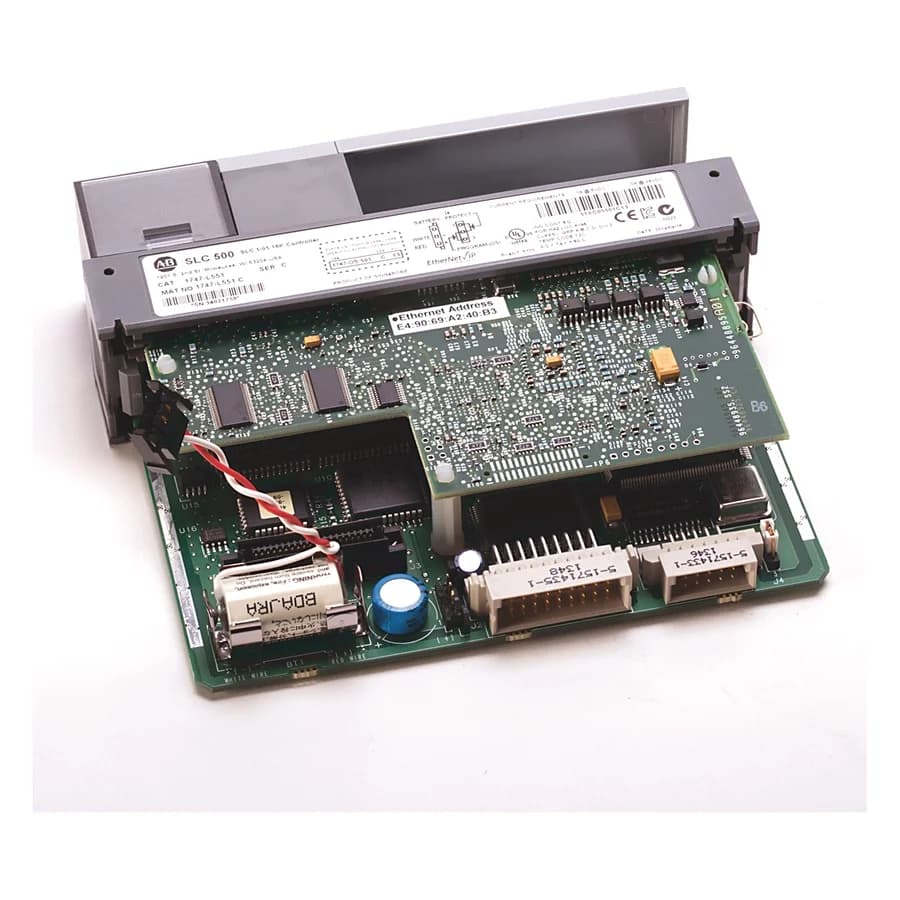

Image is for illustrative purposes only. Please refer to product description.
- Manufacturer
- Allen-Bradley
- Manufacturer part number
- 1747-L553
- Product family
- SLC 500 Processors (1747)
- Category
- PLCs and I/O › CPU and processor modules
- Technical datasheet
- Data sheet
Specifications
| Attribute | Value |
|---|---|
| Type | SLC 500 processor |
| Manufacturer lifecycle | Discontinued |
| Processor | SLC 5/05 |
| Memory (words) | 64 K |
| I/O capacity, max | 4096 discrete inputs/4096 discrete outputs |
| Local system, max | 3 chassis / 30 slots |
| Programming instructions | 107 |
| Typical scan time | 0.9 ms/K (typical for a 1 K ladder logic program) |
| Bit execution (XIC) | 0.37 µs |
| Programming software | RSLogix 500 |
| Communication options | DH485; RS-232 (DF1 full-duplex, DF1 half-duplex master/slave, DF1 radio modem, DH-485 or ASCII); Ethernet TCP/IP; Data Highway Plus through a ControlLogix gateway; ControlNet through a 1747-KFC15; DeviceNet through a 1761-NET-DNI |
| Power supply loading at 5V dc | 1.0 A |
| Power supply loading at 24V dc | 0 mA |
| Program scan hold-up time after loss of power | 20 ms...3 s (dependent on power supply loading) |
| Noise immunity | NEMA Standard ICS 2-230 |
Show all 20 specificationsShow fewer specifications
| Vibration | Displacement: 0.015 in., peak-to-peak at 5-57 Hz; Acceleration: 2.5 g at 57...2000 Hz |
|---|---|
| Shock, operating | 30 g |
| Ambient temperature rating, operating | 0...60 °C (32...140 °F) |
| Ambient temperature rating, storage | -40...85 °C (-40...185 °F) |
| Humidity | 5 to 95% without condensation |
Description
The Allen-Bradley 1747-L553 is the SLC 5/05 64K Controller, listed by Rockwell Automation with a lifecycle status of Discontinued. Rockwell publication 1747-IN009 gives 64 K words of memory, 107 programming instructions and a maximum I/O capacity of 4096 discrete inputs and 4096 discrete outputs. It states a typical scan time of 0.9 ms/K for a 1 K ladder logic program and a bit execution time (XIC) of 0.37 µs. The same publication lists a power supply loading of 1.0 A at 5V dc and 0 mA at 24V dc.
Application: PLC controller
Used with: SLC 500 1746 chassis
What is the 1747-L553 used for?
The 1747-L553 is the processor in an SLC 500 system. It runs the ladder logic program written in RSLogix 500 and handles the I/O of a local system of up to 3 chassis and 30 slots. Rockwell's publication 1747-IN009 gives it Ethernet TCP/IP on channel 1 and RS-232 on channel 0 (DF1, DH-485 or ASCII), with Data Highway Plus, ControlNet and DeviceNet reached through the gateways it names.
Key features
- SLC 5/05 processor with 64 K words memory
- Up to 4096 discrete inputs and 4096 outputs
- Local system up to 3 chassis, 30 slots
- Ethernet TCP/IP on channel 1, RS-232 on channel 0 (DF1, DH-485 or ASCII)
- Operating temperature 0 to 60 °C
Associated Products
| Image | Product | Description | Stock | View | Add to RFQ |
|---|---|---|---|---|---|
![]() | 1747-L532Allen-Bradley | SLC 5/03 16K processor, DH485 and RS-232 | In stock | View | |
![]() | 1747-L533Allen-Bradley | SLC 5/03 32K processor, DH485 and RS-232 | In stock | View | |
![]() | 1747-L541Allen-Bradley | SLC 5/04 controller with 16 K words memory | In stock | View | |
![]() | 1747-L542Allen-Bradley | SLC 5/04 32K Controller for SLC 500 | In stock | View | |
![]() | 1747-L543Allen-Bradley | SLC 5/04 64K controller, RSLogix 500 programmed | In stock | View | |
![]() | 1747-L551Allen-Bradley | SLC 5/05 16K controller with Ethernet | In stock | View | |
![]() | 1747-L552Allen-Bradley | SLC 5/05 32K processor with Ethernet | In stock | View |
Product Questions
Is the 1747-L553 discontinued?
Yes. Its manufacturer lifecycle status is Discontinued.
Can another Allen-Bradley SLC 500 Processors part replace it?
Potential replacements must be checked against the required ratings, dimensions and connections. Sharing a family name does not establish interchangeability.
Do you ship worldwide?
Yes. TimControls ships worldwide. Parts usually ship within 3 to 7 working days of order confirmation, and the exact lead time and shipping options are stated on your quote. Include your delivery country and postal code when you ask for a quote.
