Siemens 6ES7431-0HH00-0AB0
SM 431 analog input, 16 AI, 13 bit, non-isolated
Image is for illustrative purposes only. Please refer to product description.
Delivery options
Siemens SIMATIC S7-400 SM 431 analog input module: 16 non-isolated inputs for ±1 V, ±10 V, 1 to 5 V, ±20 mA and 4 to 20 mA, 13-bit resolution.
- Manufacturer
- Siemens
- Manufacturer part no.
- 6ES7431-0HH00-0AB0
- Product family
- SIMATIC S7-400 PLC CPUs, I/O and Function Modules
- Type
- Analog input module
- Category
- PLCs and I/O › Analogue I/O modules
- Lifecycle
- Discontinued
- OEM successor
- Not stated
- Technical datasheet
- Data sheet
Technical specifications
- Manufacturer
- Siemens
- Manufacturer part no.
- 6ES7431-0HH00-0AB0
- Type
- Analog input module
- Application
- Analog input module
- Used with
- SIMATIC S7-400 rack
- Load voltage L+ / Rated value (DC)
- 24 V; Only required for supplying 2-wire transmitters
- Load voltage L+ / Reverse polarity protection
- Yes
- Input current / from load voltage L+ (without load), max.
- 400 mA; for 16 connected, fully controlled 2-wire transmitters
- Input current / from backplane bus 5 V DC, max.
- 100 mA
- Power loss, typ.
- 2 W
- Number of analog inputs
- 16
- Number of analog inputs / For voltage/current measurement
- 16
- Analog inputs / permissible input voltage for voltage input (destruction limit), max.
- 20 V; 20 V DC permanent, 75 V DC for max. 1 s (duty factor 1:20)
- Analog inputs / permissible input current for current input (destruction limit), max.
- 40 mA
- Analog inputs / Constant measurement current for resistance-type transmitter, typ.
- 1.67 mA
- Input ranges / Voltage
- Yes
- Input ranges / Current
- Yes
- Input ranges / Thermocouple
- No
- Input ranges / Resistance thermometer
- No
- Input ranges / Resistance
- No
- Input ranges (rated values), voltages / 1 V to 5 V
- Yes
- Input ranges (rated values), voltages / 1 V to 5 V / Input resistance (1 V to 5 V)
- 100 kΩ
- Input ranges (rated values), voltages / -1 V to +1 V
- Yes
- Input ranges (rated values), voltages / -1 V to +1 V / Input resistance (-1 V to +1 V)
- 10 MΩ
- Input ranges (rated values), voltages / -10 V to +10 V
- Yes
- Input ranges (rated values), voltages / -10 V to +10 V / Input resistance (-10 V to +10 V)
- 100 kΩ
- Input ranges (rated values), currents / -20 mA to +20 mA
- Yes
- Input ranges (rated values), currents / -20 mA to +20 mA / Input resistance (-20 mA to +20 mA)
- 50 Ω
- Input ranges (rated values), currents / 4 mA to 20 mA
- Yes
- Input ranges (rated values), currents / 4 mA to 20 mA / Input resistance (4 mA to 20 mA)
- 50 Ω
Show all 54 specificationsShow fewer
- Cable length / shielded, max.
- 200 m
- Integration and conversion time/resolution per channel / Resolution with overrange (bit including sign), max.
- 13 bit
- Integration and conversion time/resolution per channel / Integration time, parameterizable
- Yes
- Integration and conversion time/resolution per channel / Basic conversion time (ms)
- 55 / 65 ms
- Integration and conversion time/resolution per channel / Integration time (ms)
- 50 / 60 ms
- Integration and conversion time/resolution per channel / Interference voltage suppression for interference frequency f1 in Hz
- 50 / 60 Hz
- Integration and conversion time/resolution per channel / Basic execution time of the module (all channels released)
- 1 040 ms; 880 / 1 040 ms
- Connection of signal encoders / for voltage measurement
- Yes; possible
- Connection of signal encoders / for current measurement as 4-wire transducer
- Yes
- Errors/accuracies / Temperature error (relative to input range), (+/-)
- 0.01 %/K
- Operational error limit in overall temperature range / Voltage, relative to input range, (+/-)
- 0.65 %; 1.0 % at 1 to 5 V; 0.65 % at ±1 V, ±10 V
- Operational error limit in overall temperature range / Current, relative to input range, (+/-)
- 0.65 %
- Basic error limit (operational limit at 25 °C) / Voltage, relative to input range, (+/-)
- 0.25 %; 0.5% at 1 to 5 V; 0.25% at ±1 V, ±10 V
- Basic error limit (operational limit at 25 °C) / Current, relative to input range, (+/-)
- 0.25 %; at ±20 mA, 4 to 20 mA
- Interrupts/diagnostics/status information / Diagnostics function
- No
- Potential separation analog inputs / Potential separation analog inputs
- No
- Potential separation analog inputs / between the channels
- No
- Potential separation analog inputs / between the channels and backplane bus
- No
- Potential separation analog inputs / Between the channels and load voltage L+
- No
- Isolation tested with
- 500 V AC/707 V DC, type test
- Width
- 25 mm
- Height
- 290 mm
- Depth
- 210 mm
- Weight, approx.
- 500 g
Technical documents (1)
Key features
- 16 analog inputs for voltage or current
- Ranges: ±1 V, ±10 V, 1 to 5 V, ±20 mA, 4 to 20 mA
- 13-bit resolution
- 24 V DC load supply for 2-wire transmitters
- Discontinued by Siemens on 1 October 2026
About the Siemens 6ES7431-0HH00-0AB0
The Siemens 6ES7431-0HH00-0AB0 is the 16-channel non-isolated SM 431: twice the channels of the 8-channel 6ES7431-1KF00-0AB0, at the same 13-bit resolution. Siemens's data sheet gives voltage and current ranges of ±1 V, ±10 V, 1 to 5 V, ±20 mA and 4 to 20 mA, a 24 V DC load supply for 2-wire transmitters, and 2 W typical power loss. SiePortal shows its phase-out announced on 1 October 2025 and its product cancellation on 1 October 2026.
What is the 6ES7431-0HH00-0AB0 used for?
It reads many transmitter signals into an S7-400 CPU where the signals share a common reference.
Lifecycle and successor
Discontinued.
Before you order
What to photograph or confirm so the right unit is quoted.
Check the order number on the module: 0HH00 is the 16-channel non-isolated module.
Other parts in the Siemens SIMATIC S7-400 family
Listed for reference. They differ from the 6ES7431-0HH00-0AB0 in rating, supply, interface or function and are not interchangeable with it unless Siemens says so. Match the part number on your unit.
| Product | Type | Lifecycle | Qty Available | Price | Action |
|---|---|---|---|---|---|
| Siemens 6ES7431-1KF00-0AB0SM 431 analog input, 8 AI, 13 bit, U/I/R | Analog input module | Discontinued | On Request | On request | View |
| Siemens 6ES7431-1KF10-0AB0SM 431 analog input, 8 AI, 14 bit, U/I/R/thermocouple/RTD | Analog input module | Discontinued | On Request | On request | View |
| Siemens 6ES7431-1KF20-0AB0SM 431 analog input, 8 AI, 14 bit, 0.42 ms for all channels | Analog input module | Discontinued | On Request | On request | View |
| Siemens 6ES7431-7QH00-0AB0SM 431 analog input, 16 AI, 16 bit, universal, diagnostics | Analog input module | Discontinued | On Request | On request | View |
| Siemens 6ES7431-7KF00-0AB0SM 431 analog input, 8 AI, 16 bit, U/I/thermocouple | Analog input module | Discontinued | On Request | On request | View |
| Siemens 6ES7431-7KF10-0AB0SM 431 analog input, 8 AI, 16 bit, resistance thermometers | Analog input module | Discontinued | On Request | On request | View |
| Siemens 6ES7432-1HF00-0AB0SM 432 analog output, 8 AO, 13 bit, U/I | Analog output module | Discontinued | On Request | On request | View |
| Siemens 6ES7450-1AP01-0AE0FM 450-1 counter module, 2 channels, up to 500 kHz | Counter module | Discontinued | On Request | On request | View |
| Siemens 6ES7451-3AL00-0AE0FM 451 positioning module, 3 channels, rapid/creep traverse | Positioning module | Discontinued | On Request | On request | View |
| Siemens 6ES7452-1AH00-0AE0FM 452 electronic cam controller, 16 cam tracks | Cam controller module | Discontinued | On Request | On request | View |
| Siemens 6ES7455-0VS00-0AE0FM 455 C controller module, 16 continuous control channels | Controller module | Discontinued | On Request | On request | View |
| Siemens 6ES7455-1VS00-0AE0FM 455 S controller module, 16 step and pulse control channels | Controller module | Discontinued | On Request | On request | View |
You may also be interested in
Siemens
Siemens 6GK7343-1EX30-0XE0
View
Siemens
Siemens 6GK7342-5DA03-0XE0
View
Siemens
Siemens 6ES7321-1BH02-0AA0
View
Siemens

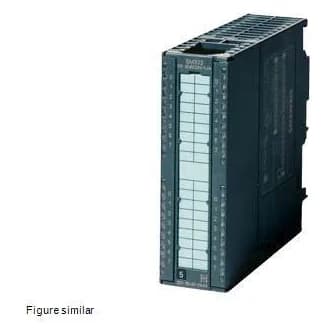

Siemens 6ES7322-1BH01-0AA0
View
Siemens
Siemens 6ES7322-1HH01-0AA0
View
Siemens

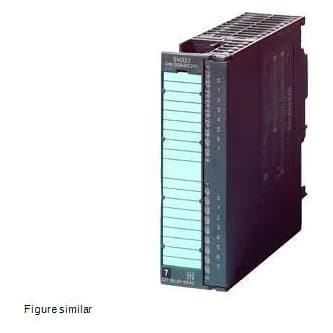

Siemens 6ES7323-1BL00-0AA0
